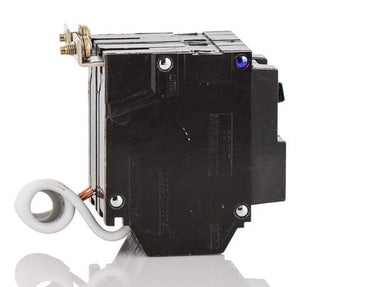

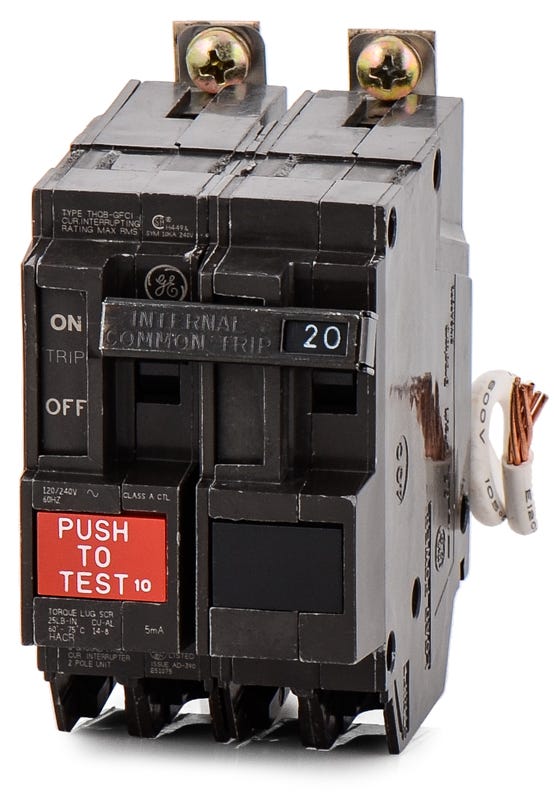

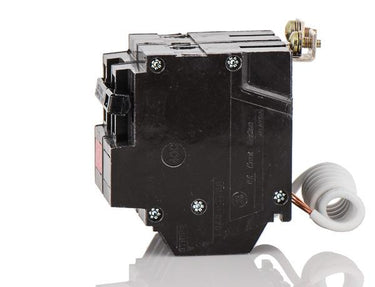

ABB / General Electric THQB2120GF GFCI Miniature Circuit Breaker
- 20A
- 2 Pole
- Bolt-On
ABB / General Electric
THQB2120GF
GFCI Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB2120GF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB2120GF - 20A GFCI Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQB2120GF - 20A GFCI Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2120GF |
| Series | THQB |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Sold out
Quantity
ABB / General Electric THQB2120GF - 20A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2120GF-R |
| Series | THQB |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items

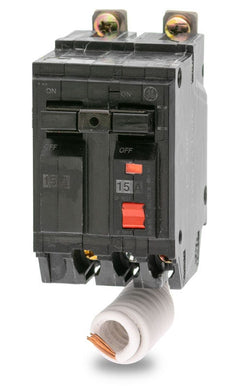

ABB / General ElectricTHQB2115GFT
15A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQB2130GFT
30A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQB2130GF
30A GFCI Miniature Circuit Breaker
Description
Engineered for commercial environments, this 20-amp Q-Line component delivers reliable personnel protection. It mounts into standard GE A-Series and AQ lighting panels using a secure bolt-on connection. Note that this original version has been superseded by the self-testing THQB2120GFT model. Meeting strict NEC requirements for wet locations, it provides Class A 5mA ground fault interruption and includes load side lugs for straightforward wiring.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2120GF |
| Series | THQB |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
5 answersCan I install this THQB breaker in a standard residential GE load center?
No. The THQB2120GF is a bolt-on circuit breaker specifically designed for commercial GE A-Series panelboards and AQ lighting panels. Standard residential GE load centers require THQL or THQP plug-in style breakers.
Does the THQB2120GF provide Class A personnel protection or equipment protection?
This GFCI model provides Class A 5mA ground fault protection, which is designed to protect personnel from electric shock. It is not an equipment protection (GFEP) breaker, which would have a 30mA trip threshold.
How do I wire the pigtail neutral on this GFCI breaker?
The attached white pigtail wire must connect directly to the panelboard neutral bus bar to power the internal ground fault monitoring circuitry. The neutral wire from the branch circuit load connects to the dedicated load neutral lug on the breaker itself.
What do the Long-Time, Instantaneous, and Ground-Fault (LIG) trip functions mean?
LIG identifies the specific trip characteristics of this thermal-magnetic breaker. Long-Time provides a delayed trip for mild thermal overloads, Instantaneous offers an immediate trip for severe short circuits, and Ground-Fault actively monitors for current leakage to ground.
Why is this breaker labeled as both ABB and General Electric?
ABB acquired GE Industrial Solutions. GE Q-Line miniature breakers, including the THQB series, are now manufactured by ABB. They retain the exact same form factor, specifications, and UL listings as the legacy General Electric models.
