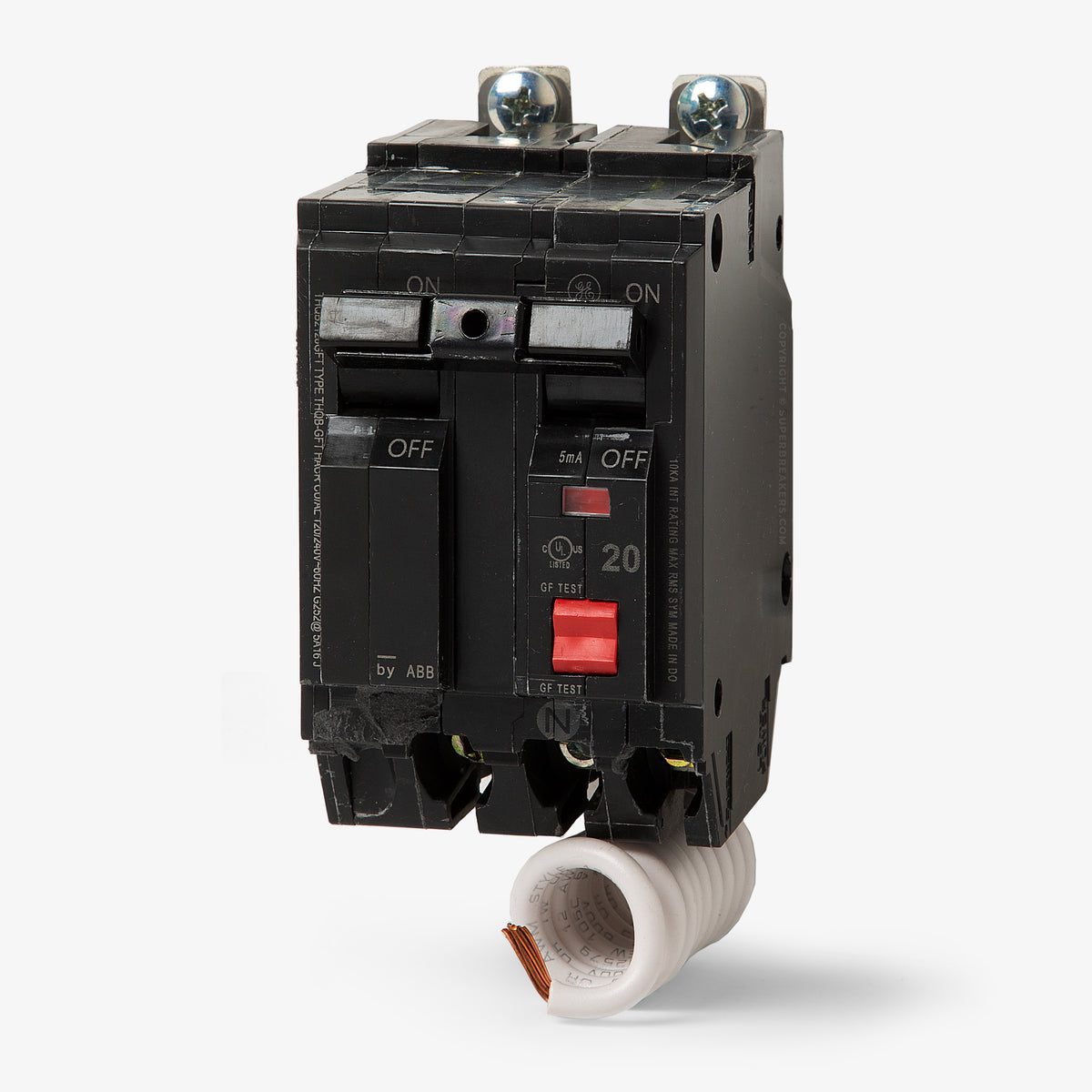

ABB / General Electric THQB2120GFT GFCI Miniature Circuit Breaker
- 20A
- 2 Pole
- Bolt-On
ABB / General Electric
THQB2120GFT
GFCI Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB2120GFT
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB2120GFT - 20A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQB2115GFT
15A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQB2130GFT
30A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQB2130GF
30A GFCI Miniature Circuit Breaker
Description
Rated 10 kAIC at 120/240V, this two-pole GFCI breaker delivers continuous ground fault monitoring for commercial and industrial applications. It installs into GE A-Series panelboards using a secure bolt-on connection, ensuring reliable power distribution in demanding environments. The integrated self-test feature automatically verifies the protection circuit, meeting updated NEC requirements for wet or damp locations while replacing the older THQB2120GF model.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | THQB |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Handle Lock |
| Accessories | Self-Test Feature (Integrated) |
| Standards | CSA C22.2 No. 5, UL 489, UL 943, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Self-Test |
Product FAQs
5 answersWhat panelboards are compatible with the THQB2120GFT breaker?
This bolt-on circuit breaker is designed exclusively for installation in GE A-Series panelboards and AQ lighting panels. It cannot be used in residential load centers and is not interchangeable with plug-in THQL or THQP style breakers.
What level of ground fault protection does the THQB2120GFT provide?
It provides Class A ground fault protection with a 5mA trip threshold. This is specifically designed for personnel protection to prevent severe electric shock in commercial kitchens, bathrooms, and damp outdoor environments.
How is the neutral connection wired on this GFCI breaker?

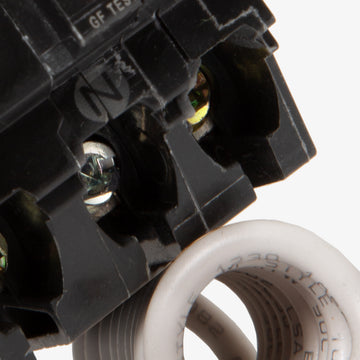

The THQB2120GFT features a standard pigtail neutral wire. During installation, this curled white wire must be connected directly to the neutral bus bar in the panelboard to power the internal ground fault sensing circuitry.
What is the difference between the THQB2120GFT and THQB2120GFT2?
The THQB2120GFT2 is the direct manufacturer successor to the THQB2120GFT. It retains the exact same bolt-on mounting, trip ratings, and physical footprint, but adds updated electronics that include an automatic self-test function and LED trip indication.
Can I substitute a THQL2120GFT for this THQB2120GFT breaker?
No. While both models provide identical GFCI protection, the THQL version features a plug-in connection designed for standard residential load centers. The THQB2120GFT utilizes a bolt-on connection required for commercial A-Series panels.
