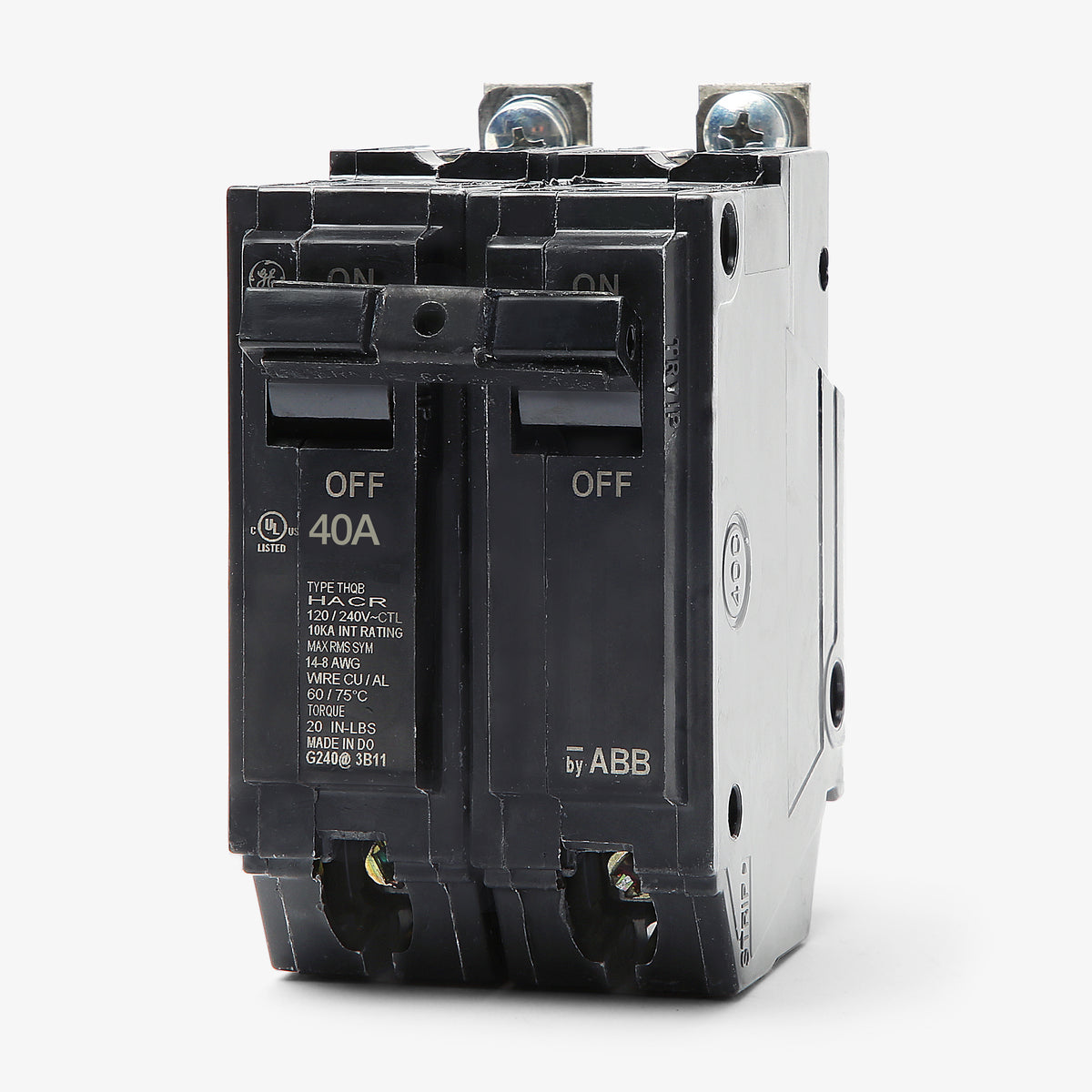

ABB / General Electric THQB2140 Miniature Circuit Breaker
- 40A
- 2 Pole
- Bolt-On
ABB / General Electric
THQB2140
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB2140
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB2140 - 40A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQB2140 - 40A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2140 |
| Series | THQB |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break |
Sold out
Quantity
ABB / General Electric THQB2140 - 40A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2140-R |
| Series | THQB |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break |
Similar Items
ABB / General ElectricTHQB2145
45A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB2135
35A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB2150
50A 2 Pole Miniature Circuit Breaker
Description
Part of the Q-Line family, this 40A miniature circuit breaker delivers robust thermal-magnetic protection for commercial and industrial electrical systems. The bolt-on design installs securely into GE A-Series panelboards and AQ lighting panels, ensuring a stable connection for critical branch circuits. Featuring a 10kAIC interrupt rating at 120/240VAC, it includes an internal common trip mechanism and quick-make/quick-break contacts to prevent arcing.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2140 |
| Series | THQB |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break |
Product FAQs
4 answersIs the THQB2140 interchangeable with a THQL2140 breaker?
No. The THQB2140 is a bolt-on circuit breaker designed for commercial panelboards, such as the GE A-Series. The THQL series features a plug-in connection used primarily in residential load centers. Because the mounting types are completely different, they cannot be swapped.
Can I use the THQB2140 in a GE PowerMark Gold load center?
No. PowerMark load centers require plug-in style breakers. The THQB2140 has a bolt-on mounting style and will not physically attach to the busbars in a standard plug-on load center.
Is the ABB THQB2140 the exact same part as the GE THQB2140?
Yes. ABB acquired GE Industrial Solutions, and the THQB product line remains identical in form, fit, and function. Depending on the manufacturing date, the breaker you receive may feature ABB branding, legacy GE branding, or both.
Is this 40-amp circuit breaker suitable for HVAC applications?
Yes. As a standard UL 489 molded case circuit breaker, the THQB2140 carries an HACR rating. This means it is certified for use with heating, air conditioning, and refrigeration equipment that requires overcurrent protection.
