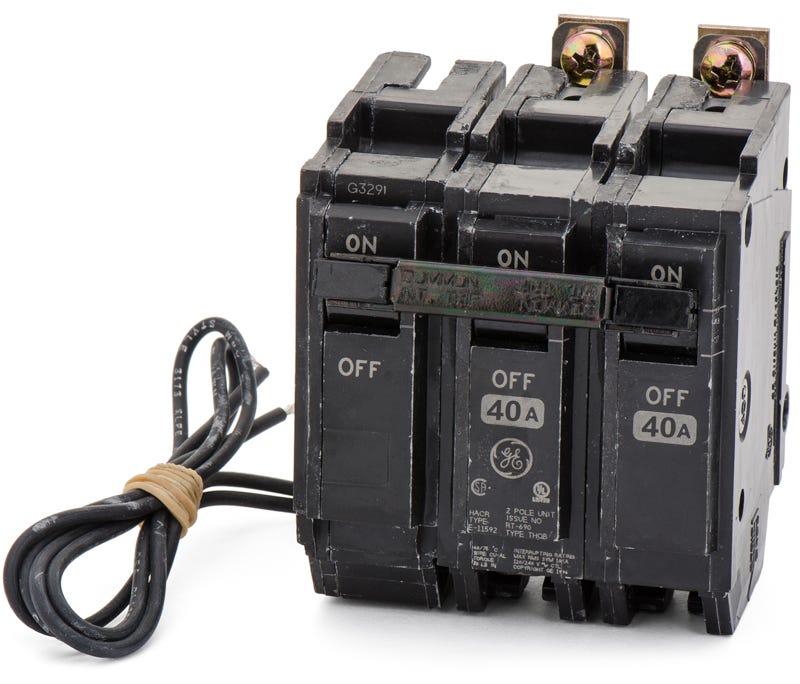

ABB / General Electric THQB2140ST1 Miniature Circuit Breaker
- 40A
- 2 Pole
- Bolt-On
ABB / General Electric
THQB2140ST1
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB2140ST1
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB2140ST1 - 40A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQB2140ST1 - 40A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2140ST1 |
| Series | THQB |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels, ReliaGear RQ Panelboards |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Padlock Attachment, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included, Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Sold out
Quantity
ABB / General Electric THQB2140ST1 - 40A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2140ST1-R |
| Series | THQB |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels, ReliaGear RQ Panelboards |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Padlock Attachment, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included, Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTHQB2130ST1
30A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB2160ST1
60A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB2120ST1
20A 2 Pole Miniature Circuit Breaker
Description
Designed for advanced control applications, this 40A miniature circuit breaker combines standard thermal-magnetic protection with remote tripping capabilities. The bolt-on form factor mounts into GE A-Series, AQ lighting, and ReliaGear RQ panelboards, ensuring a rigid and dependable electrical connection. A factory-installed 120/240VAC shunt trip accessory enables automated shutdown from remote switches or emergency stop buttons, complementing its 10kAIC rating.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2140ST1 |
| Series | THQB |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels, ReliaGear RQ Panelboards |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Padlock Attachment, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included, Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
6 answersWhat does the ST1 suffix indicate on the THQB2140ST1 circuit breaker?
The ST1 designation means this breaker includes a factory-installed 120VAC shunt trip accessory. This allows the breaker to be tripped remotely via an external signal, such as an emergency stop button or automated control system.
Can I install the THQB2140ST1 in a standard residential load center?
No. The THQB2140ST1 is a bolt-on breaker designed specifically for commercial and industrial panelboards, such as GE A-Series, GE AQ Lighting Panels, and ABB ReliaGear RQ panelboards. Standard residential load centers typically require plug-on breakers like the THQL series.
How does the bolt-on connection of the THQB2140ST1 benefit industrial applications?
The breaker physically bolts directly to the panelboard bus. This provides a highly secure and rigid electrical connection that resists loosening over time, making it ideal for commercial and industrial environments subject to vibration or heavy use.
What type of protection does the thermal-magnetic trip unit provide?
The THQB2140ST1 features Long-Time and Instantaneous (LI) trip functions. The thermal element provides long-time protection against sustained overloads, while the magnetic element offers instantaneous protection against severe short circuits.
Why might this breaker arrive with either ABB or GE branding?
ABB acquired GE Industrial Solutions in 2018. Depending on the manufacturing date, the THQB2140ST1 may feature either ABB or General Electric labeling, but the physical dimensions, fit, and technical specifications remain identical.
Can the shunt trip accessory on the THQB2140ST1 be field-installed?
No, the ST1 shunt trip mechanism is factory-installed internally alongside the common trip mechanism. It cannot be added, removed, or modified in the field.
