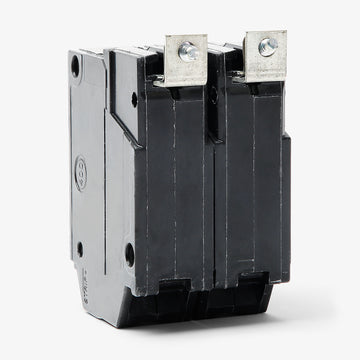

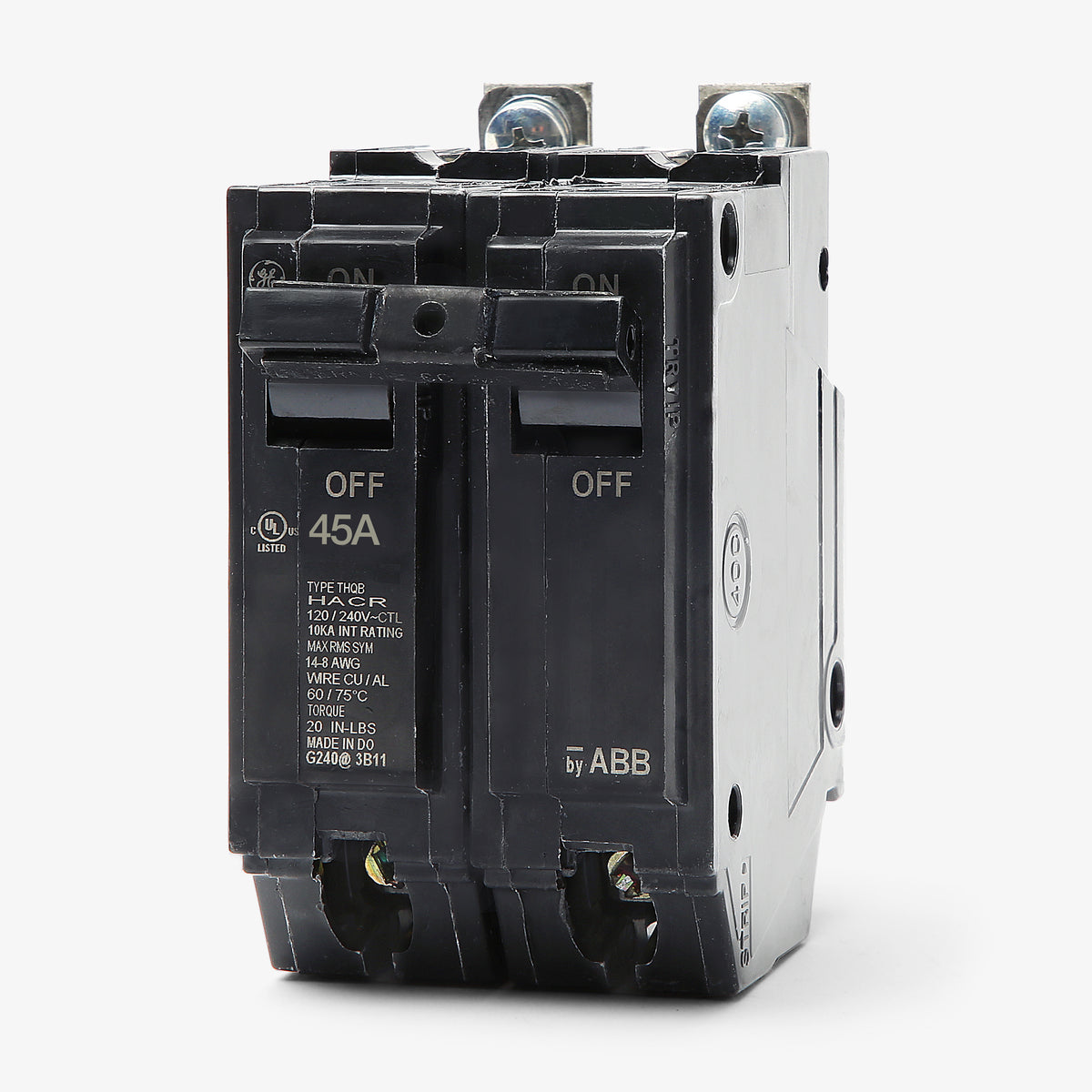

ABB / General Electric THQB2145 Miniature Circuit Breaker
- 45A
- 2 Pole
- Bolt-On
ABB / General Electric
THQB2145
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB2145
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB2145 - 45A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQB2150ST1
50A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB2140
40A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB2140ST1
40A 2 Pole Miniature Circuit Breaker
Description
Part of the Q-Line family, this 45-amp miniature breaker delivers robust overcurrent protection for residential, commercial, and industrial electrical systems. Fastening into GE A-Series panelboards guarantees a rigid mechanical and electrical connection that withstands vibration. The two-pole unit features an internal common trip mechanism and quick-make/quick-break contacts. It carries a 10kAIC rating at 120/240VAC and is HACR rated for use with heating and air conditioning equipment.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2145 |
| Series | THQB |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip, Visual Trip Indicator, Reverse Feed |
Product FAQs
7 answersWhat panelboards are compatible with the THQB2145?
The THQB2145 is designed for use in GE A-Series panelboards and AQ lighting panels. It is a bolt-on breaker and will not fit residential PowerMark load centers that require plug-in breakers.
What is the difference between GE THQB and THQL circuit breakers?
THQB breakers feature a bolt-on connection for commercial panelboards, while THQL breakers use a plug-in connection for residential load centers. Despite having similar electrical ratings, they mount differently and cannot be interchanged.
Are ABB and General Electric THQB breakers identical?
Yes. Following ABB acquiring GE Industrial Solutions, the THQB product line remained the same. Breakers labeled under ABB, GE, or both brands are identical in fit, form, and function.

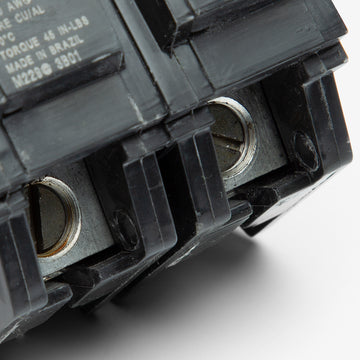

What are the lug torque specifications for the THQB2145?
The required torque depends on the wire size used. Torque 8 AWG wire to 40 in-lb, 6 AWG to 4 AWG wire to 45 in-lb, and 3 AWG wire to 50 in-lb.

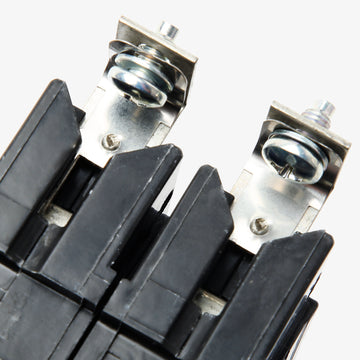

How is the THQB2145 installed in a panel?
This breaker bolts directly to the panelboard busbar using mounting screws. This bolt-on design provides a secure, vibration-resistant connection required in many commercial and industrial environments.
What does the Q-Line family designation indicate?
Q-Line is the standard General Electric miniature circuit breaker platform featuring a 1-inch width per pole. As a 2-pole breaker, the THQB2145 occupies 2 inches of space on the panel bus.
Is the THQB2145 HACR rated?
Yes, this breaker is HACR rated. It is approved for use with heating, air conditioning, and refrigeration equipment that requires a breaker with this specific safety listing.
