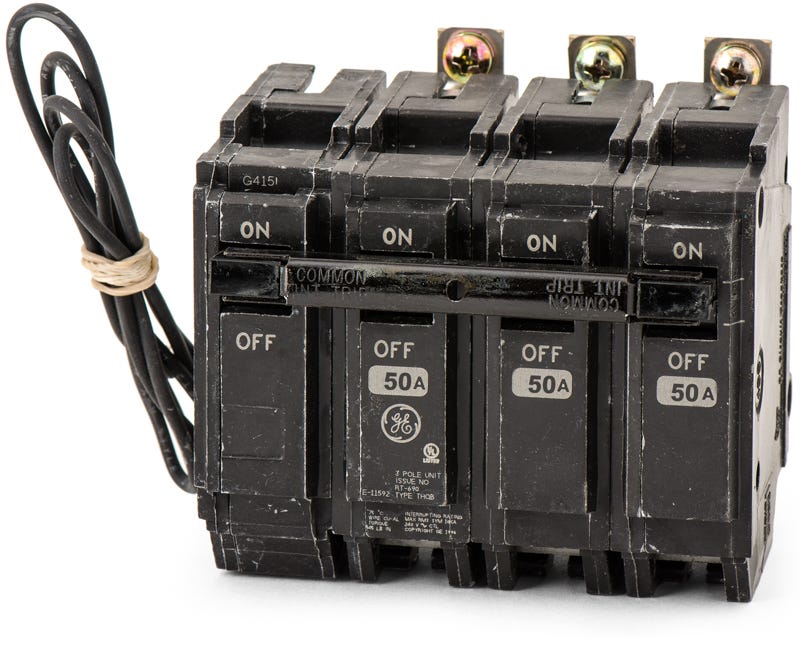

ABB / General Electric THQB32050ST1 Miniature Circuit Breaker
- 50A
- 3 Pole
- Bolt-On
ABB / General Electric
THQB32050ST1
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB32050ST1
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB32050ST1 - 50A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQB32050ST1 - 50A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB32050ST1-R |
| Series | THQB |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Undervoltage Release, Padlock Attachment, Alarm Switch |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Sold out
Quantity
ABB / General Electric THQB32050ST1 - 50A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB32050ST1-R |
| Series | THQB |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Undervoltage Release, Padlock Attachment, Alarm Switch |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Similar Items
ABB / General ElectricTHQB32060ST1
60A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB32040ST1
40A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB32035ST1
35A 3 Pole Miniature Circuit Breaker
Description
Built for commercial applications, this 50A Q-Line circuit breaker includes a factory-installed shunt trip for remote shutdown capabilities. The thermal-magnetic design utilizes a quick-make, quick-break mechanism for reliable protection. This three-pole device bolts into GE A-Series panelboards and AQ lighting panels. It features box lug terminals that accept 8-3 AWG wiring. Rated at 10kAIC at 240VAC, the breaker provides standard LI trip functions. It is HACR rated and features a common trip.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB32050ST1-R |
| Series | THQB |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Undervoltage Release, Padlock Attachment, Alarm Switch |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Product FAQs
5 answersWhat does the ST1 suffix mean on this THQB breaker?
The ST1 suffix indicates that this model features a factory-installed 120V AC shunt trip accessory. This allows the breaker to be tripped remotely via an external control signal, which is commonly required for emergency stops, fire alarm systems, or equipment shutdown circuits.
Are ABB and General Electric THQB breakers the same?
Yes. Following ABB's acquisition of GE Industrial Solutions, they continue to manufacture the THQB product line under the exact same catalog numbers. An ABB-branded THQB32050ST1 is a direct, interchangeable replacement for a legacy GE-branded breaker of the same model.
Can I install this bolt-on breaker in a standard GE residential load center?
No. THQB breakers utilize a bolt-on mounting design and are strictly for use in commercial lighting and distribution panels like the GE A-Series or AQ panels. If you need a breaker for a standard GE load center, you must use a plug-in THQL series breaker.
Is this 240V-rated breaker suitable for use on 208V commercial power systems?
Yes. Although its maximum rating is 240V AC, this three-pole breaker is fully compatible with 208V and 208Y/120V three-phase systems standard in commercial facilities. It carries a 10kA interrupting rating at 208V.
Does the THQB32050ST1 provide ground fault or arc fault protection?
No. This is a standard thermal-magnetic breaker featuring long-time and instantaneous trip functions to protect against overloads and short circuits. It does not include GFCI or AFCI protection.
