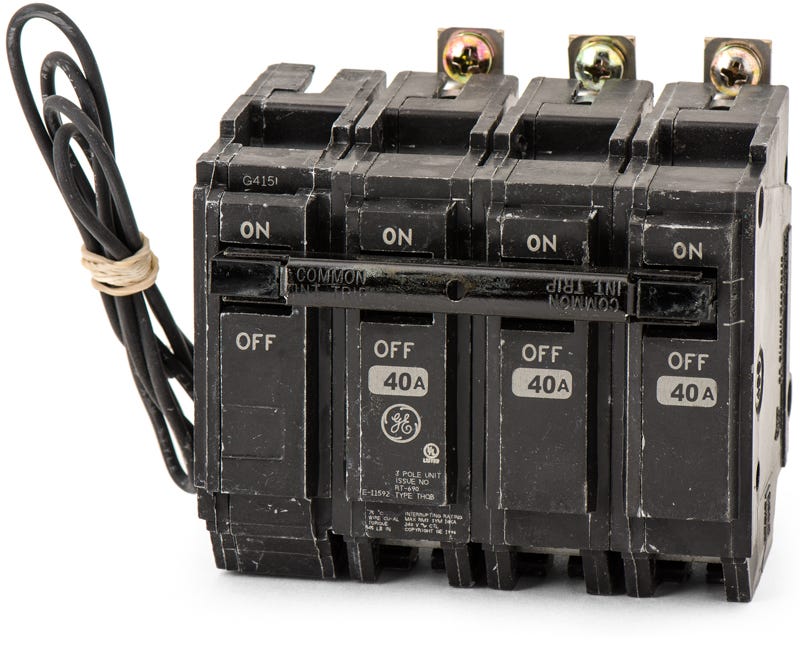

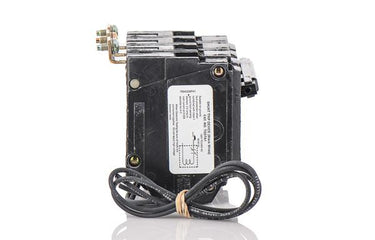

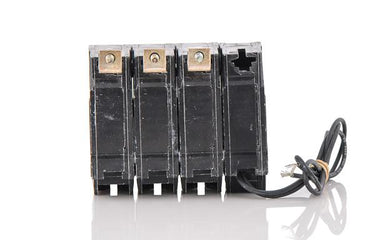

ABB / General Electric THQB32040ST1 Miniature Circuit Breaker
- 40A
- 3 Pole
- Bolt-On
ABB / General Electric
THQB32040ST1
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB32040ST1
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB32040ST1 - 40A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQB32040ST1 - 40A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB32040ST1 |
| Series | THQB |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (120VAC) |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Sold out
Quantity
ABB / General Electric THQB32040ST1 - 40A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB32040ST1-R |
| Series | THQB |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (120VAC) |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Similar Items
ABB / General ElectricTHQB32035ST1
35A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB32050ST1
50A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB32030ST1
30A 3 Pole Miniature Circuit Breaker
Description
Engineered for commercial and industrial power distribution, this 40-amp Q-Line miniature circuit breaker features a factory-installed 120VAC shunt trip mechanism. This allows facility managers to remotely open the circuit for emergency shutdowns or automated control sequences. It installs into GE A-Series panelboards using a secure bolt-on connection. The thermal-magnetic trip unit provides reliable overload and short-circuit protection with a 10kAIC rating at 240VAC.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB32040ST1 |
| Series | THQB |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (120VAC) |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Product FAQs
6 answersWhich panelboards are compatible with the THQB32040ST1 breaker?
This 3-pole bolt-on breaker is designed for use in General Electric A-Series panelboards, AQ lighting panels, and ABB ReliaGear RQ panelboards. It is not compatible with standard plug-on style residential load centers.
What does the "ST1" suffix indicate on this catalog number?
The "ST1" suffix signifies that this unit is equipped with a factory-installed 120VAC shunt trip accessory. This allows the circuit breaker to be tripped remotely via an external 120V control signal, which is frequently required for fire alarm integration or emergency shut-off switches.
How is this Q-Line breaker mounted into the electrical panel?
The THQB32040ST1 features a bolt-on connection design. The line-side terminals must be mechanically bolted directly to the panelboard's busbars, providing a secure, vibration-resistant electrical connection that is standard in commercial enclosures.
Can I field-adjust the trip settings on this 40-amp breaker?
No. The internal trip mechanism is non-interchangeable and features fixed thermal and fixed magnetic (LI) elements. The long-time overload and instantaneous short-circuit response thresholds are pre-calibrated at the factory.
What are the accepted wire sizes for the load-side lugs?
The integral box lugs on this breaker are dual-rated for both copper (Cu) and aluminum (Al) conductors, and they are designed to accept wire sizes ranging from 8 AWG up to 3 AWG.
Can I use the THQB32040ST1 to replace a THHQB series breaker?
While it shares the same physical Q-Line frame and bolt-on mounting style, the THQB32040ST1 is only rated for 10kAIC at 240VAC. It cannot be used as a replacement if your electrical system's available fault current requires the higher 22kAIC interrupting rating provided by THHQB models.
