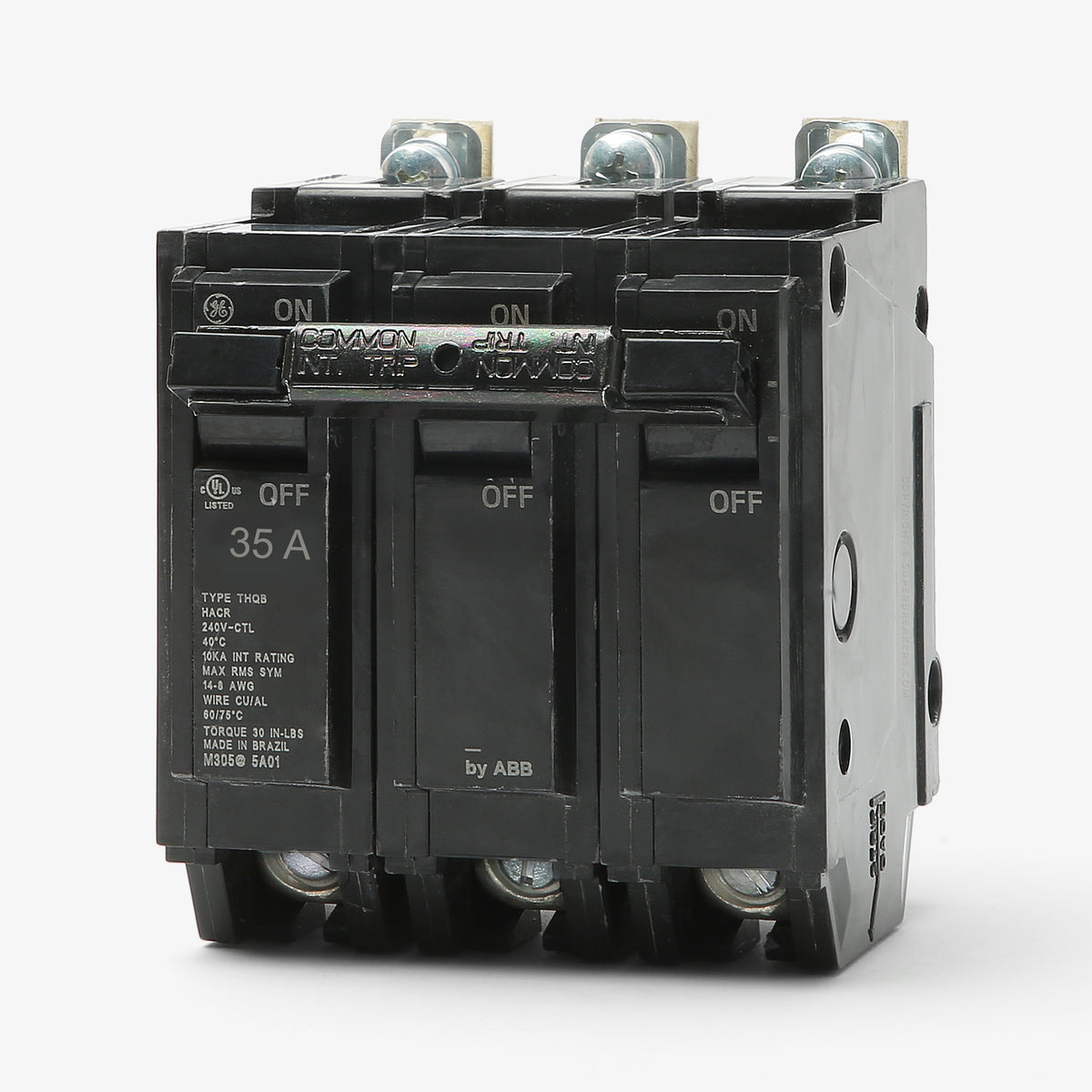

ABB / General Electric THQB32035 Miniature Circuit Breaker
- 35A
- 3 Pole
- Bolt-On
ABB / General Electric
THQB32035
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB32035
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB32035 - 35A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQB32040
40A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB32040ST1
40A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB32030
30A 3 Pole Miniature Circuit Breaker
Description

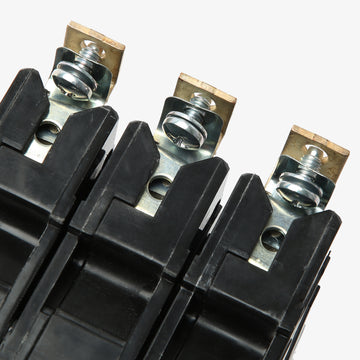

Rated for 35 amps, the GE THQB32035 is a 3-pole miniature circuit breaker from the Q-Line family. It delivers dependable thermal-magnetic protection for commercial and industrial branch circuits. Designed for a secure fit, this bolt-on breaker installs into GE A-Series panelboards and AQ lighting panels. It is equipped with box lug terminals that accept 8-3 AWG copper or aluminum wiring.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB32035 |
| Series | THQB |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE AQ Lighting Panels, GE A-Series Panelboards |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break |
Product FAQs
6 answersWhat is the difference between GE THQB and THQL breakers?
THQB breakers feature a bolt-on connection designed for commercial enclosures like GE A-Series panelboards and AQ Lighting Panels. THQL breakers utilize a plug-in connection designed for residential PowerMark Gold load centers. They are mechanically incompatible and cannot be interchanged.
Can I install the THQB32035 breaker in a GE PowerMark Gold load center?
No. PowerMark Gold load centers require plug-in style breakers from the THQL family. The THQB32035 is a bolt-on circuit breaker strictly for use in A-Series panelboards and AQ lighting panels.
Is the GE THQB32035 circuit breaker HACR rated?
Yes, this 35-amp, 3-pole thermal magnetic breaker is HACR rated. It is listed for safe use with heating, air conditioning, and refrigeration equipment motor loads.
Can I replace a THHQB32035 with a THQB32035?
Only if the maximum available fault current at the panel is 10kA or less. The THQB32035 has a standard 10kAIC rating, while the THHQB series is rated for 22kAIC. You cannot use a 10kAIC breaker in a system that requires a 22kAIC rating.
What wire types and sizes are compatible with the THQB32035 box lugs?
The breaker terminals accept both copper and aluminum conductors. The supported wire range is 8 AWG to 3 AWG.
Why is it important to verify the interrupting rating before installing the THQB32035?
The THQB32035 has a 10kAIC rating at 240VAC. Installing it in a commercial electrical system with a fault current potential exceeding 10,000 amps creates a severe arc flash and fire hazard during a short circuit. Always verify the panel calculations before installation.
