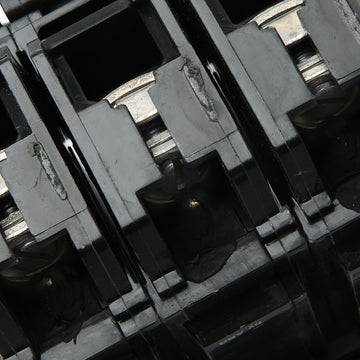

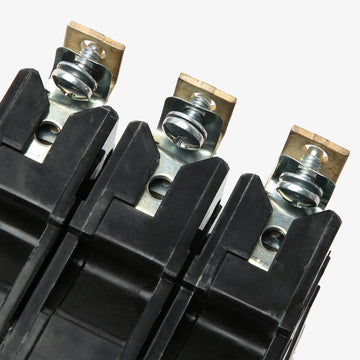

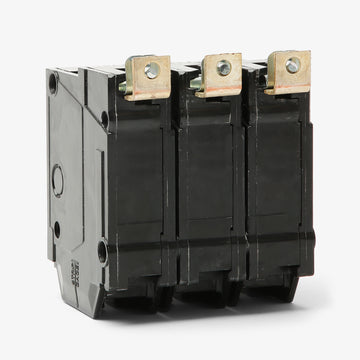

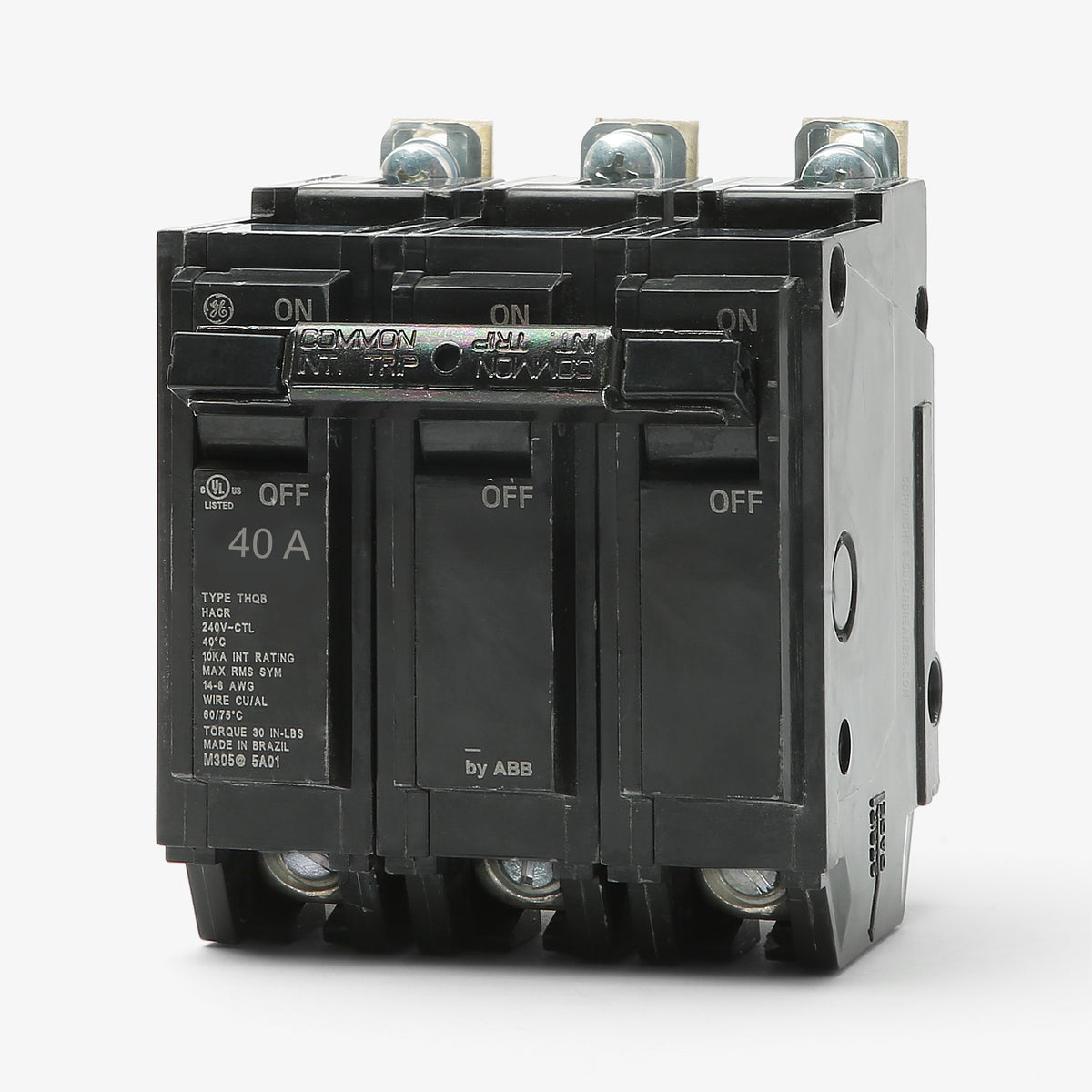

ABB / General Electric THQB32040 Miniature Circuit Breaker
- 40A
- 3 Pole
- Bolt-On
ABB / General Electric
THQB32040
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB32040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB32040 - 40A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQB32040 - 40A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB32040 |
| Series | THQB |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Sold out
Quantity
ABB / General Electric THQB32040 - 40A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB32040-R |
| Series | THQB |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Similar Items
ABB / General ElectricTHQB32045
45A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB32045ST1
45A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB32035
35A 3 Pole Miniature Circuit Breaker
Description
Built for heavy-duty commercial environments, this 40-amp miniature breaker provides robust overcurrent protection for three-phase systems. The device fastens into GE A-Series and AQ lighting panelboards via a dependable bolt-on mounting style. Rated for 10kAIC at 240VAC, it incorporates an internal common trip mechanism and HACR certification, making it suitable for heating, air conditioning, and refrigeration motor loads.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB32040 |
| Series | THQB |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Product FAQs
6 answersCan I install this breaker in a standard GE residential load center?
No. The THQB32040 requires a bolted connection to the busbar and is explicitly designed for GE A-Series panelboards and AQ lighting panels. Standard PowerMark Gold residential load centers require plug-in THQL breakers.
Is there a higher interrupting rating alternative to the THQB32040?
Yes. The THHQB32040 is the direct dimensional cross-reference, but it carries a higher 22kAIC rating at 240VAC.
Will this breaker support a 480V or 277/480V system?
No. The THQB series is strictly rated for a maximum of 240VAC. Applications requiring 480V protection will need a different frame type, such as the GE TEY or TED series.
Why might this THQB breaker arrive with ABB branding instead of General Electric?
ABB acquired GE Industrial Solutions and is transitioning the branding. The physical breaker, Q-Line frame, and UL listings remain completely identical regardless of which logo is stamped on the housing.
What are the tightening torque specifications for the box lugs?
Torque depends on the installed conductor size. Tighten 8 AWG wire to 40 in-lbs, 6 AWG and 4 AWG to 45 in-lbs, and 3 AWG to 50 in-lbs.
Is the THQB32040 HACR rated?
Yes, GE Q-Line miniature circuit breakers carry an HACR rating, making them suitable for protecting heating, air conditioning, and refrigeration equipment circuits.
