ABB / General Electric THQB32045ST1 Miniature Circuit Breaker
- 45A
- 3 Pole
- Bolt-On
ABB / General Electric
THQB32045ST1
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB32045ST1
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

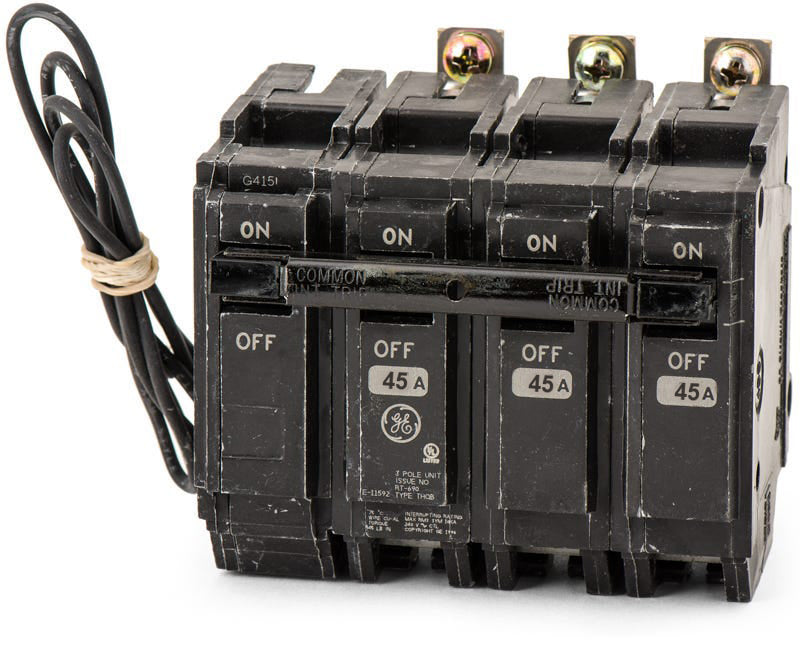

ABB / General Electric THQB32045ST1 - 45A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQB32040ST1
40A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB32035ST1
35A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB32060ST1
60A 3 Pole Miniature Circuit Breaker
Description
Built for three-phase commercial applications, this 45A breaker provides dependable overcurrent protection. It is equipped with a factory-installed shunt trip, enabling remote disconnection for enhanced facility safety. The unit installs securely into GE A-Series panelboards using a robust bolt-on connection. Box lug terminals accept 8-3 AWG copper or aluminum wiring. Rated 10kAIC at 240VAC, the thermal-magnetic trip unit ensures precise response to overloads and short circuits.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | THQB |
| Amperage | 45A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
7 answersWhich panelboards are compatible with the THQB32045ST1 circuit breaker?
This bolt-on breaker is designed for use in GE A-Series panelboards, AQ lighting panels, and ReliaGear RQ enclosures. It is not compatible with standard GE load centers that require plug-in THQL breakers.
Can I use a THQB32045ST1 in place of a THQL breaker?
No. The THQB series features a bolt-on mounting style for commercial panelboards, while the THQL series uses a plug-in connection for standard residential load centers. They are not interchangeable.
What does the ST1 suffix indicate on this GE THQB breaker?
The ST1 suffix means the breaker includes a factory-installed 120V shunt trip. This allows the breaker to be tripped remotely for emergency shutdown or automated control systems.
How does the THQB32045ST1 mount into the panel?
It features a bolt-on connection that fastens directly to the panel bus with screws. This provides a secure, vibration-resistant connection common in commercial and industrial applications compared to standard plug-in models.
Why is this breaker listed as both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. The Q-Line breakers continue to be manufactured under the exact same catalog numbers, so an ABB THQB32045ST1 is a direct, interchangeable replacement for an older GE THQB32045ST1.
What type of trip unit is built into the THQB32045ST1?
It uses a non-interchangeable thermal magnetic trip unit with fixed long time and instantaneous trip functions to protect against overloads and short circuits.
What size wire is accepted by the box lugs on this 45A breaker?
The terminals accept 8 AWG to 3 AWG copper or aluminum wire. Always torque the connections to the manufacturer specifications printed on the breaker label.
