ABB / General ElectricTHQB32080ST1
Free Shipping Over $99

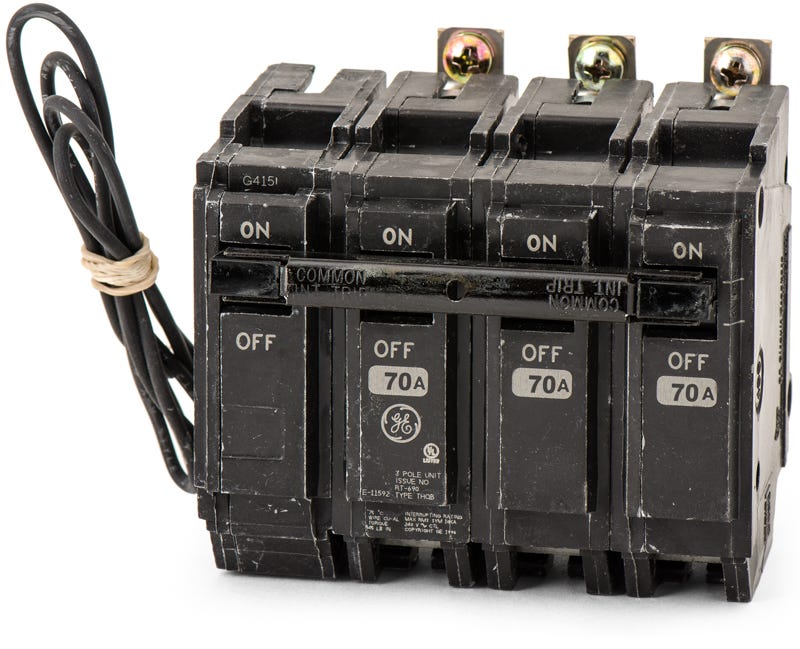

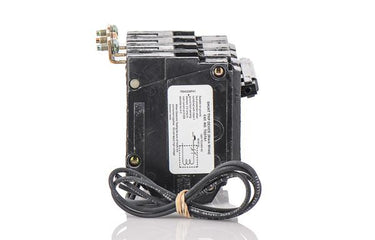

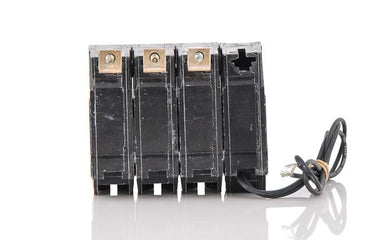

ABB / General Electric THQB32070ST1 Miniature Circuit Breaker
- 70A
- 3 Pole
- Bolt-On
ABB / General Electric
THQB32070ST1
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB32070ST1
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB32070ST1 - 70A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQB32060ST1
60A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB32050ST1
50A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB32045ST1
45A 3 Pole Miniature Circuit Breaker
Description
Built to accommodate higher current demands in commercial facilities, this 70A thermal-magnetic breaker features an integrated shunt trip for remote actuation. It connects securely into GE A-Series panelboards and AQ lighting enclosures via standard bolt-on terminals. With a 10kAIC rating at 240VAC, the three-pole device provides dependable short-circuit and overload defense while supporting emergency power-off systems through its factory-installed auxiliary tripping mechanism.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB32070ST1 |
| Series | THQB |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Product FAQs
9 answersWhich panelboards are compatible with the THQB32070ST1 circuit breaker?
This bolt-on breaker is designed for use in GE A-Series panelboards and GE AQ lighting panels.
What does the ST1 suffix indicate on the THQB32070ST1?
The ST1 suffix indicates that this breaker includes a factory-installed 120VAC shunt trip accessory. This allows for remote tripping of the breaker via an external control signal.
What wire sizes are accepted by the box lugs on this 70A breaker?
The terminals accept 6 to 1/0 AWG copper wire or 4 to 1/0 AWG aluminum wire.
Is this 70A THQB breaker rated for HVAC equipment?
Yes, it is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires a 70A overcurrent protection device.
How does the THQB32070ST1 mount into the panelboard?
It features a bolt-on connection type, meaning it securely bolts directly to the bus connections in compatible GE load centers and lighting panels.
Will I receive an ABB or GE branded breaker when ordering the THQB32070ST1?
Because ABB acquired GE Industrial Solutions, you may receive a breaker branded as either ABB or GE. The form, fit, and function remain identical regardless of the label.
What type of trip mechanism does the THQB32070ST1 utilize?
It uses a fixed thermal-magnetic trip unit with Long-Time and Instantaneous (LI) functions to protect against both prolonged overloads and sudden short circuits.
Can I field-install a shunt trip on a standard THQB breaker instead of buying the ST1 version?
No, the shunt trip mechanism on the THQB32070ST1 is factory-installed. Internal accessories for miniature Q-Line breakers cannot be added in the field.
Can the THQB32070ST1 be reverse fed?
Yes, this breaker is suitable for reverse feed applications, allowing it to be used as a main breaker or back-fed branch breaker where permitted by local electrical codes.
