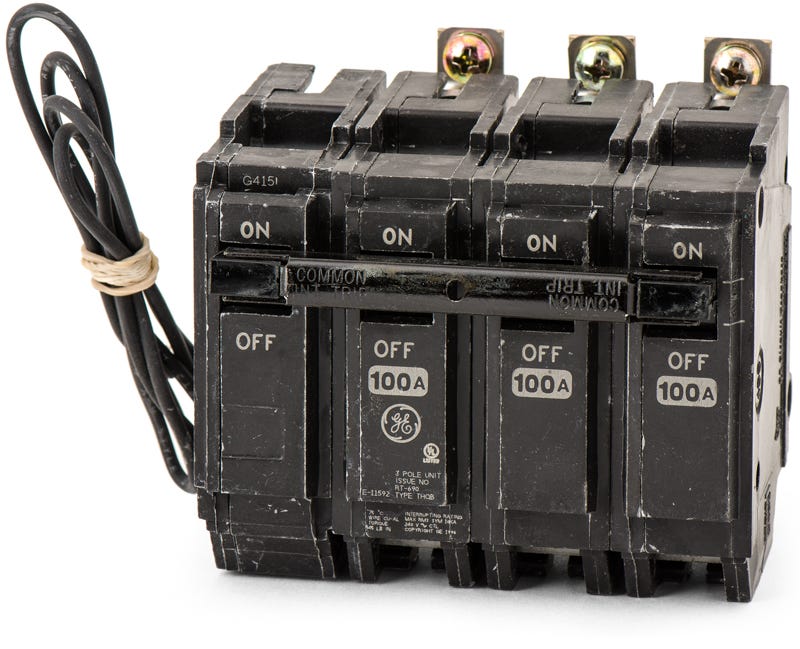

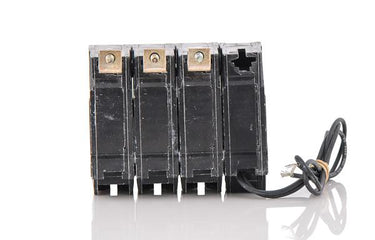

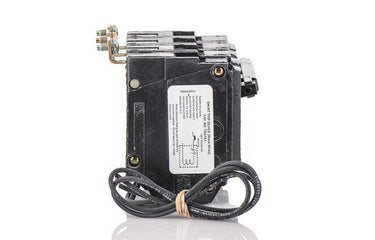

ABB / General Electric THQB32100ST1 Miniature Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
ABB / General Electric
THQB32100ST1
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB32100ST1
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB32100ST1 - 100A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQB32100ST1 - 100A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB32100ST1 |
| Series | THQB |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Sold out
Quantity
ABB / General Electric THQB32100ST1 - 100A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB32100ST1-R |
| Series | THQB |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTHQB32070ST1
70A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB32060ST1
60A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB32050ST1
50A 3 Pole Miniature Circuit Breaker
Description
Part of the Q-Line family, the THQB32100ST1 adds remote tripping capabilities to standard overcurrent protection. This three-pole, 100-amp miniature breaker is ideal for commercial facilities requiring automated or emergency power disconnects. The bolt-on configuration ensures a rigid connection within GE A-Series panelboards. It installs easily into compatible enclosures, providing a stable fit for demanding industrial applications without relying on friction clips.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB32100ST1 |
| Series | THQB |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
6 answersWhat panelboards accept the THQB32100ST1 circuit breaker?
This Q-Line breaker is designed specifically for bolt-on installations in GE A-Series panelboards and compatible commercial lighting panels.
What does the ST1 suffix indicate on this GE circuit breaker?
The ST1 suffix means the breaker is equipped with a factory-installed 120V shunt trip accessory. This allows the breaker to be tripped remotely via an external control signal, which is often required for emergency power disconnects.
Can the THQB32100ST1 be used in reverse feed applications?
Yes, this thermal magnetic breaker is suitable for reverse feed installations.
Is this breaker HACR rated for HVAC equipment?
Yes, the THQB32100ST1 carries an HACR rating, making it suitable for use with heating, air conditioning, and refrigeration motor group loads.
Why might this breaker arrive with ABB branding instead of General Electric?
ABB acquired GE Industrial Solutions in 2018. The THQB product line continues under the exact same catalog numbers, so you may receive a breaker branded as ABB, GE, or GE by ABB. The physical dimensions, compatibility, and performance remain identical.
How does the bolt-on connection benefit the installation?
The bolt-on configuration ensures a rigid, secure connection directly to the panelboard bus. This provides a highly stable fit for demanding commercial and industrial applications without relying on the friction clips used in plug-in designs.
