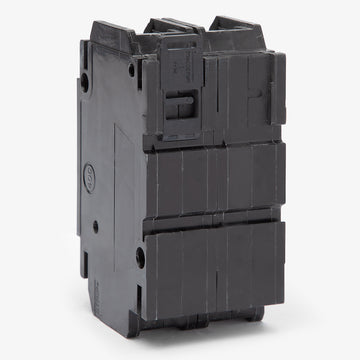

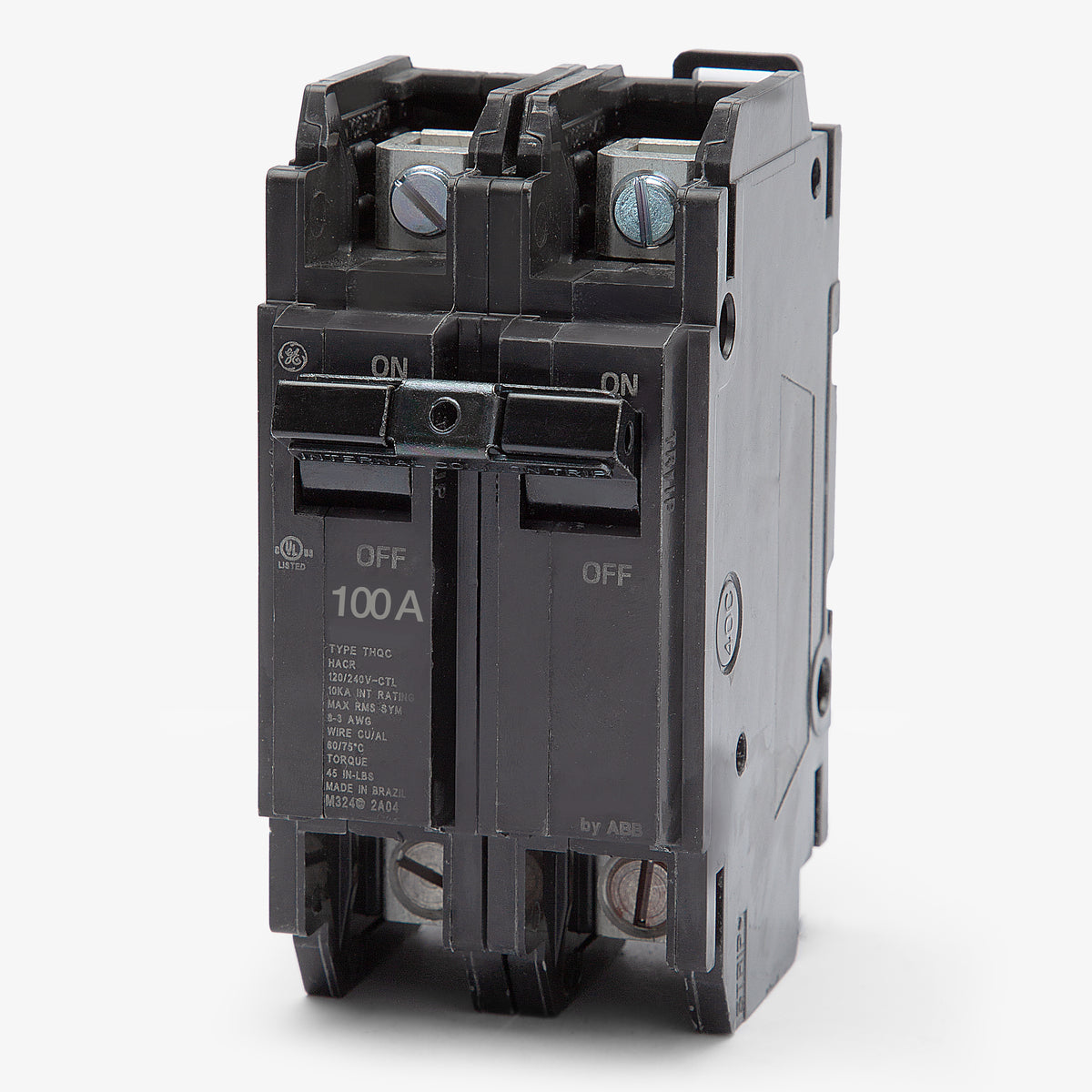

ABB / General Electric THQC21100WL Molded Case Circuit Breaker
- 100A
- 2 Pole
- DIN Rail
ABB / General Electric
THQC21100WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQC21100WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQC21100WL - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQC2190WL
90A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC2180WL
80A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC2180
80A 2 Pole Molded Case Circuit Breaker
Description
Featuring factory-installed line and load lugs, the GE THQC21100WL is a 100-amp, two-pole molded case circuit breaker. It provides essential thermal-magnetic protection for 120/240V commercial electrical systems, ensuring safety against overcurrent events. This Q-Line breaker is built to mount onto standard 35mm DIN rail systems. It is an excellent choice for OEM panels and custom enclosures. The unit incorporates a non-interchangeable trip and is fully HACR rated for HVAC applications.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC21100WL |
| Series | THQC |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | DIN Rail |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures, Control Panels |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
11 answersCan I install the THQC21100WL in a standard GE plug-in load center?
No. The THQC series is designed for 35mm DIN rail mounting or base mounting in OEM panels and enclosures. For standard GE plug-in residential load centers, a THQL series breaker is required.
Does the THQC21100WL require a specific DIN rail size?
Yes, it is designed to mount directly onto standard 35mm DIN rails, which are commonly used in industrial control panels, automation cabinets, and custom enclosures.
What does the WL suffix indicate on the THQC21100WL catalog number?

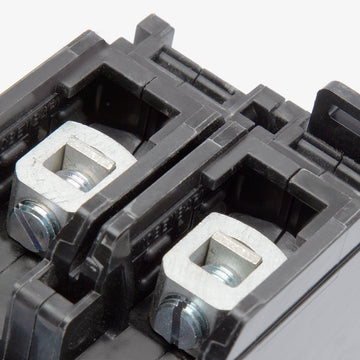

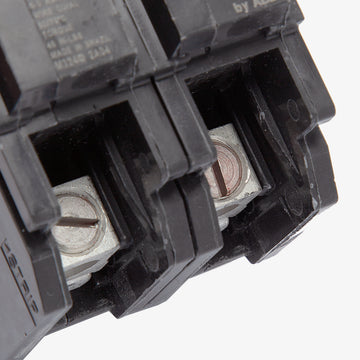

The WL suffix designates that the breaker comes with both line and load lugs factory-installed. This lug-to-lug configuration allows for direct feed-thru wiring without requiring a busbar connection.
Does this breaker feature a trip-free mechanism?
Yes, the quick-make, quick-break mechanism is trip-free. This ensures the breaker will trip under overload or short circuit conditions even if the operating handle is physically held or locked in the ON position.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. The THQC product line continues to be manufactured under the same catalog numbers, meaning an ABB-branded THQC21100WL is identical to a GE-branded unit.
What is the difference between the THQC and THQB circuit breakers?
The THQC series is designed for DIN rail or base mounting with lug connections. The THQB series is a bolt-on breaker designed specifically to bolt directly to the bus in GE lighting panels and commercial load centers.
Is the THQC21100WL suitable for HVAC equipment?
Yes, this breaker is HACR rated. It is approved for use with heating, air conditioning, and refrigeration equipment that requires group motor protection.
Can this breaker be used in a 480V or 277/480V system?
No, the THQC21100WL is strictly rated for a maximum of 120/240VAC. Applying it to a 480V system exceeds its maximum voltage rating and violates safety standards. For 480V applications, a different frame type like the TED or TEY series is required.
Can I adjust the trip settings on the THQC21100WL?
No, this breaker features a fixed thermal-magnetic trip unit. The long-time and instantaneous trip functions are factory calibrated and non-interchangeable.
How does the common trip feature work on this 2-pole breaker?
An internal common trip bar ensures that if an overcurrent or short circuit occurs on either pole, both poles will disconnect simultaneously. This completely de-energizes the 240V circuit for safety.
Does the THQC21100WL provide visual trip indication?
Yes. When the breaker trips, the handle moves to a center position midway between ON and OFF. To reset the breaker, the handle must be pushed completely to the OFF position before turning it back ON.
