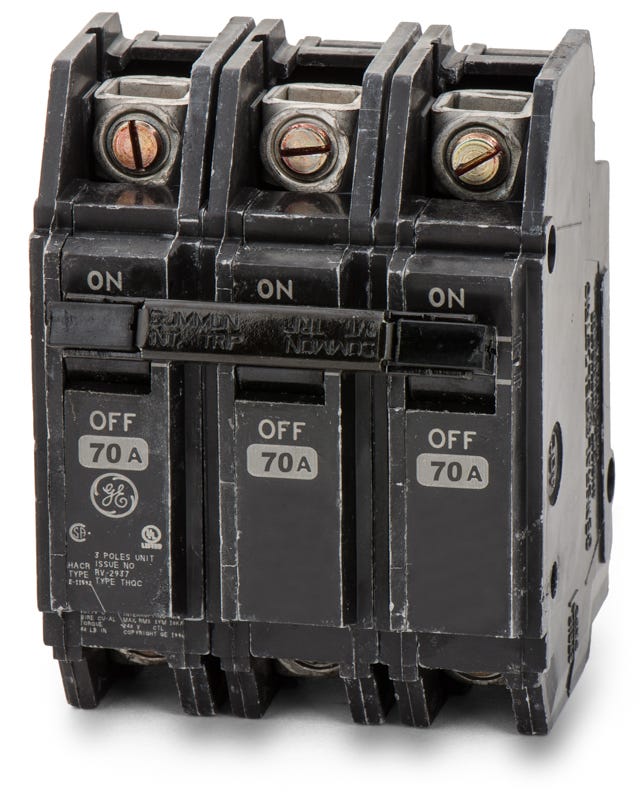

ABB / General Electric THQC32070WL Molded Case Circuit Breaker
- 70A
- 3 Pole
- DIN Rail
ABB / General Electric
THQC32070WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQC32070WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQC32070WL - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQC32070WL - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC32070WL |
| Series | THQC |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | DIN Rail |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Non-Interchangeable Trip |
Quantity
ABB / General Electric THQC32070WL - 70A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC32070WL-R |
| Series | THQC |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | DIN Rail |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTHQC32060WL
60A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC32090WL
90A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC32050WL
50A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the GE THQC32070WL is a 3-pole, 70-amp compact molded case circuit breaker from the proven Q-Line family. It provides robust overcurrent and short-circuit protection for demanding electrical distribution systems. This unit installs easily onto standard 35mm DIN rails, making it ideal for OEM panels and custom control enclosures.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC32070WL |
| Series | THQC |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | DIN Rail |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Non-Interchangeable Trip |
Product FAQs
6 answersWhy might this breaker arrive with ABB or GE branding?
ABB acquired GE Industrial Solutions in 2018. Depending on the manufacturing date, the THQC32070WL may feature either ABB or General Electric branding. The form, fit, and function remain identical regardless of the label.
What does the WL suffix indicate on the THQC32070WL catalog number?
The WL suffix signifies that the breaker comes equipped with factory-installed lugs for feed-thru connections, rather than plug-in or bolt-on terminals.
What is the physical width of the THQC32070WL breaker?
As part of the Q-Line family, this breaker features a standard 1-inch width per pole, making the 3-pole THQC32070WL exactly 3 inches wide overall.
Is the THQC32070WL suitable for HVAC applications?
Yes, this Q-Line breaker is HACR rated, meaning it is certified for use with heating, air conditioning, and refrigeration equipment.
How does the THQC32070WL indicate that it has tripped?
The breaker features a dedicated trip indication where the operating handle rests in a central position between the ON and OFF positions when a fault occurs.
Does the THQC32070WL have a quick-make, quick-break mechanism?
Yes, all Q-Line circuit breakers feature a quick-make, quick-break mechanism that minimizes arcing during operation and prevents contacts from being teased into position.
