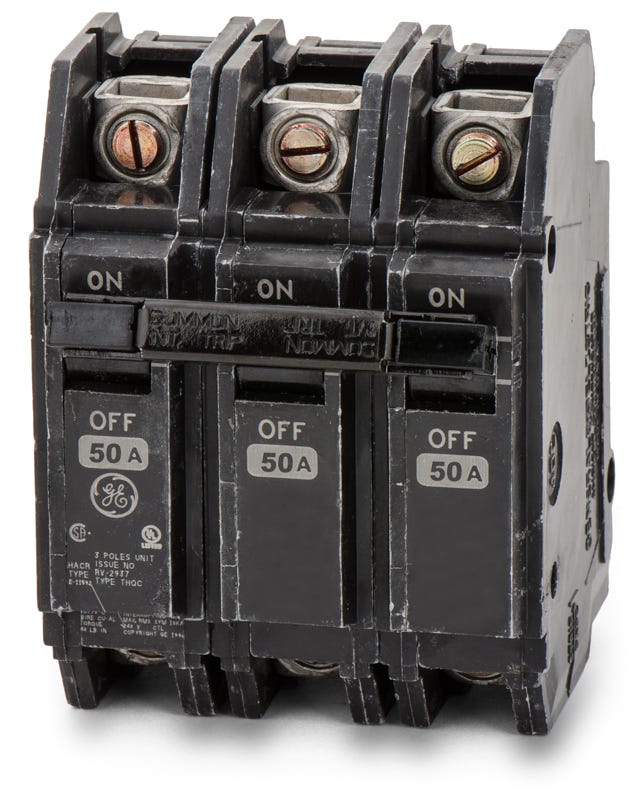

ABB / General Electric THQC32050WL Molded Case Circuit Breaker
- 50A
- 3 Pole
- DIN Rail
ABB / General Electric
THQC32050WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQC32050WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQC32050WL - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQC32050WL - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC32050WL |
| Series | THQC |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | DIN Rail |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | 35mm DIN Rail, OEM Panels, Enclosures |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Visual Trip Indicator, Reverse Feed, Non-Interchangeable Trip |
Sold out
Quantity
ABB / General Electric THQC32050WL - 50A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC32050WL-R |
| Series | THQC |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | DIN Rail |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | 35mm DIN Rail, OEM Panels, Enclosures |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Visual Trip Indicator, Reverse Feed, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTHQC32040WL
40A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC32070WL
70A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC32030WL
30A 3 Pole Molded Case Circuit Breaker
Description
Rated for 50 amps at 240VAC, this three-pole thermal-magnetic breaker is engineered for versatile power distribution. The unit is equipped with line and load lugs, making it perfectly suited for mounting onto standard 35mm DIN rails or within custom OEM enclosures. Delivering a 10 kAIC short-circuit rating, it incorporates a quick-make/quick-break toggle mechanism, internal common trip bar, and is fully HACR rated for HVAC applications.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC32050WL |
| Series | THQC |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | DIN Rail |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | 35mm DIN Rail, OEM Panels, Enclosures |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Visual Trip Indicator, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersCan I use an ABB THQC32050WL to replace an older GE THQC32050WL?
Yes. ABB acquired GE Industrial Solutions and continues to manufacture the THQC series to the exact same specifications. An ABB branded THQC32050WL is a direct, interchangeable replacement for a GE branded unit.
What type of mounting does the THQC32050WL require?
This breaker is designed for feed-thru installations. It can be mounted directly onto standard 35mm DIN rails or base-mounted within OEM panels and custom enclosures.
Is the THQC32050WL suitable for HVAC equipment?
Yes, this breaker is HACR rated, making it approved for use in heating, ventilation, air conditioning, and refrigeration applications.
What does the WL suffix mean in the THQC32050WL catalog number?
The WL suffix indicates that the circuit breaker comes factory-equipped with both line and load lugs.
What wire sizes are accepted by the lugs on this 50A breaker?
The factory-installed lugs accept 8 AWG to 3 AWG copper or aluminum wire.
Does this 3-pole breaker feature a common trip mechanism?
Yes, it features an internal common trip linkage. If an overcurrent or short circuit is detected on any single pole, all three poles will trip simultaneously to safely disconnect three-phase power.
How do I reset the THQC32050WL after it trips?
When the breaker trips, the handle moves to a center position to provide a visual trip indication. To reset it, you must first move the handle to the extreme OFF position, then push it back to the ON position.
