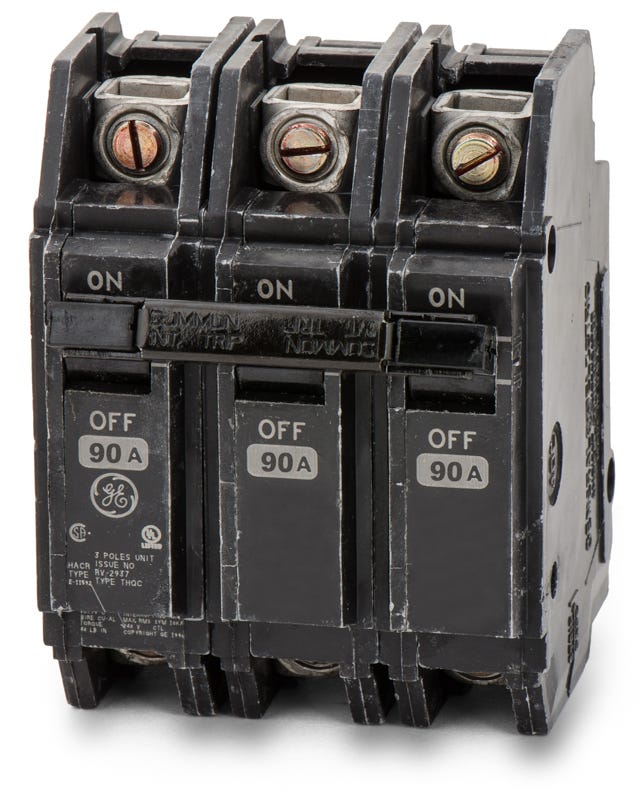

ABB / General Electric THQC32090WL Molded Case Circuit Breaker
- 90A
- 3 Pole
- DIN Rail
ABB / General Electric
THQC32090WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQC32090WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQC32090WL - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQC32090WL - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC32090WL |
| Series | THQC |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | DIN Rail |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures, Control Panels |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Sold out
Quantity
ABB / General Electric THQC32090WL - 90A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC32090WL-R |
| Series | THQC |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | DIN Rail |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures, Control Panels |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTHQC32080WL
80A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC32070WL
70A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC32060WL
60A 3 Pole Molded Case Circuit Breaker
Description
Delivering robust overcurrent protection, the THQC32090WL is a 90A MCCB designed for commercial power systems. It utilizes fixed thermal-magnetic trip elements to safeguard critical infrastructure. Designed for flexibility, this 3-pole breaker installs onto standard DIN rails, OEM panels, and control enclosures. It features feed-thru lug terminals for secure wire connections.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC32090WL |
| Series | THQC |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | DIN Rail |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQC |
|---|---|
| Terminal Type | Lugs |
| For Use With | DIN Rail Systems, OEM Panels, Enclosures, Control Panels |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
7 answersHow is the THQC32090WL circuit breaker mounted in a panel?
This breaker features a feed-thru design with lug terminals on both the line and load sides. It is designed to snap onto a standard 35mm DIN rail or can be base-mounted in OEM control panels and enclosures.
Will my THQC32090WL arrive with ABB or General Electric branding?
Following ABB acquiring GE Industrial Solutions, this breaker may feature either ABB or GE branding. The physical dimensions, fit, and electrical specifications remain identical regardless of the label.
What wire sizes are accepted by the lugs on the THQC32090WL?
The factory-installed lugs accept 6 AWG to 1/0 AWG copper conductors, or 4 AWG to 1/0 AWG aluminum conductors.
Can the THQC32090WL be used in 480V or 600V systems?
No. This Q-Line breaker is strictly rated for a maximum of 240VAC. It is not rated for use in 480V or 600V electrical systems.
What does the WL suffix mean in the THQC32090WL part number?
The WL suffix indicates that the breaker includes factory-installed lugs on both the line and load terminals, making it ready for feed-thru cable connections.
How does the trip mechanism function on the THQC32090WL?
It uses a fixed thermal-magnetic trip unit. The thermal element provides long-time protection against overloads, while the magnetic element provides instantaneous protection against short circuits.
What is the maximum fault current the THQC32090WL can safely interrupt?
This breaker has a maximum interrupting capacity of 10,000 amps at 240VAC. You must verify that the available fault current at your specific installation point does not exceed this 10kAIC rating.
