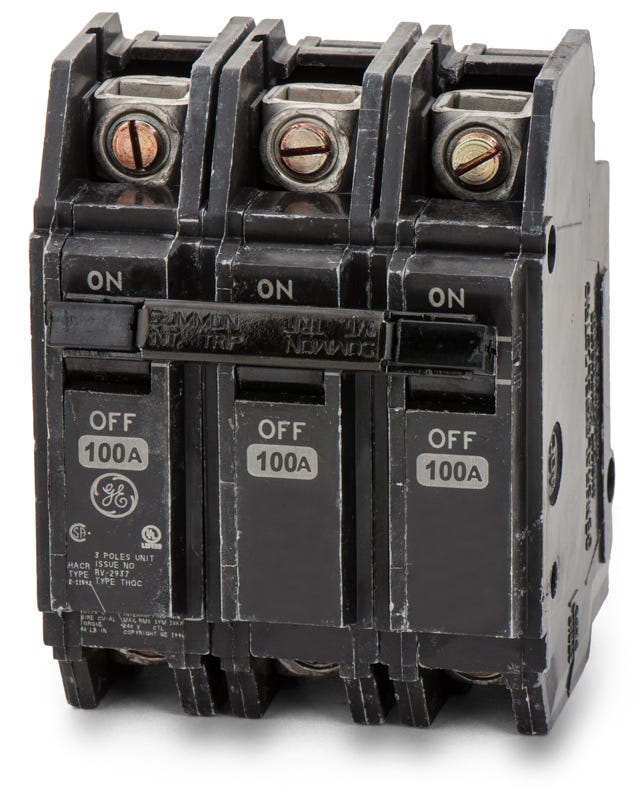

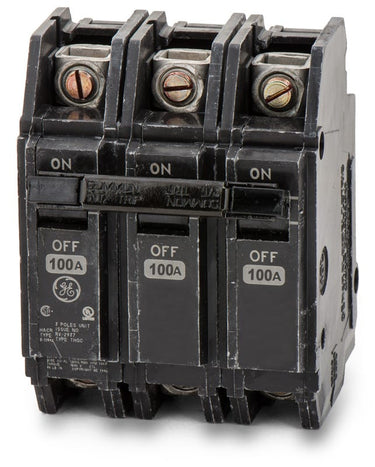

ABB / General Electric THQC32100WL Molded Case Circuit Breaker
- 100A
- 3 Pole
- DIN Rail
ABB / General Electric
THQC32100WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQC32100WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQC32100WL - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQC32100WL - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC32100WL |
| Series | THQC |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | DIN Rail |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | DIN Rail Systems, OEM Panels, Enclosures |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Sold out
Quantity
ABB / General Electric THQC32100WL - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC32100WL-R |
| Series | THQC |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | DIN Rail |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | DIN Rail Systems, OEM Panels, Enclosures |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Similar Items
ABB / General ElectricTHQC32080WL
80A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC32070WL
70A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC32060WL
60A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial power distribution, the GE THQC32100WL is a 3-pole, 100A molded case circuit breaker from the Q-Line family. It features a thermal magnetic trip unit for reliable long-time and instantaneous protection. This compact MCCB is designed to mount onto standard 35mm DIN rail systems or OEM enclosures. Equipped with factory-installed line and load lugs, it carries a 10kAIC rating at 240VAC and is fully HACR rated for HVAC equipment.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQC32100WL |
| Series | THQC |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | DIN Rail |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | DIN Rail Systems, OEM Panels, Enclosures |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Product FAQs
6 answersWhat does the "WL" suffix mean in the THQC32100WL catalog number?
The "WL" suffix indicates that the breaker is factory-equipped with lugs on both the line and load terminals, allowing for direct cable-in and cable-out connections.
Can I install this THQC breaker in a standard GE load center?
No. THQC breakers are designed for DIN rail mounting or base mounting in OEM panels and enclosures. They do not plug into or bolt onto a busbar. For standard GE residential load centers, a plug-in THQL breaker is required.
What is the difference between GE THQC and THQB circuit breakers?
THQC breakers are cable-in, cable-out breakers designed for 35mm DIN rail or base mounting in control panels. THQB breakers are bolt-on breakers designed specifically for installation directly onto the busbars of GE A-Series panelboards.
Can I use aluminum conductors with the factory lugs on the THQC32100WL?
Yes, the factory-installed lugs are dual-rated for both copper and aluminum conductors. Ensure you follow the specific wire gauge requirements, which allow for 4 to 1/0 AWG aluminum or 6 to 1/0 AWG copper.
How does the common trip function operate on this three-pole breaker?
The internal common trip mechanism ensures that if an overload or short circuit is detected on any single phase, all three poles will open simultaneously. This safely disconnects all power and prevents single-phasing damage to three-phase motors or equipment.
How is the THQC32100WL secured inside a control panel?
This breaker is designed to snap directly onto a standard 35mm DIN rail. It can also be base-mounted in OEM panels or control enclosures using compatible GE mounting plates.
