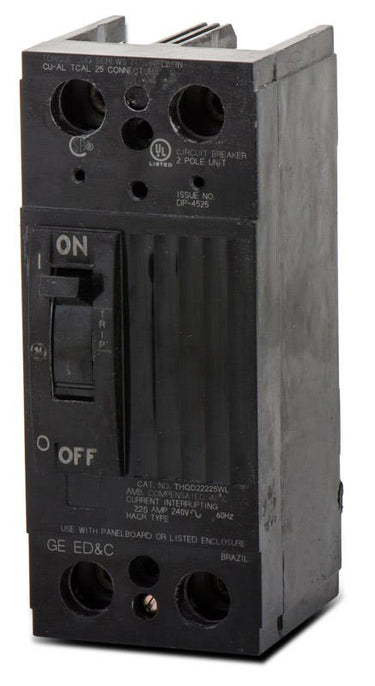

ABB / General Electric THQD22225WL Molded Case Circuit Breaker
- 225A
- 2 Pole
- Unit Mount
ABB / General Electric
THQD22225WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQD22225WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQD22225WL - 225A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQD22200
200A 2 Pole Molded Case Circuit Breaker
2 Pole Circuit Breaker
ABB / General ElectricTHQD22175
175A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial applications, the GE THQD22225WL is a two-pole MCCB from the Q-Line series. It delivers reliable 225A overcurrent protection with a common trip mechanism. This unit mount breaker is suitable for individual enclosures and switchboards. It includes factory-installed lugs accepting 4 AWG to 300 kcmil wire. Note that this model is replaced by the ABB Formula A2 series (A2N225TW-2).Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQD22225WL |
| Series | THQD |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Enclosures, Individual Mounting, Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, High Interrupting Capacity, Reverse Feed |
Product FAQs
6 answersCan I use the THQD22225WL in a standard GE residential load center?
No, the THQD frame is an industrial molded case circuit breaker designed for commercial switchboards, Spectra Series panelboards, and individual enclosures. It will not fit in standard residential load centers that require THQL or THQP plug-in breakers.
What does the "WL" in the THQD22225WL catalog number mean?
The "WL" suffix indicates that the breaker is supplied complete with factory-installed line and load lugs. These lugs are rated for 4 AWG to 300 kcmil copper or aluminum conductors.
Is there a difference between ABB and GE THQD22225WL breakers?
No, they are the exact same product. ABB acquired GE Industrial Solutions in 2018, so this breaker may arrive with either ABB or GE branding depending on the manufacturing date. The form, fit, and function remain identical.
How is the THQD22225WL mounted in an electrical system?
It features a unit-mount, feed-thru design. Instead of plugging directly onto a busbar, it is mechanically fastened to the panel or enclosure backpan and wired directly via the line and load lugs.
What mounting hardware is required to install this breaker in a Spectra Series panelboard?
When installing THQD frame breakers in GE Spectra Series panelboards, you will need a specific mounting hardware kit, such as the AMCB6QD or AMC6QD for twin or dual branch configurations. Always verify the exact kit required for your specific panel type.
What is the difference between the TQD and THQD breaker frames?
Both are Q-Line molded case circuit breakers with the same physical dimensions, but the THQD series has a higher interrupting capacity (22kAIC at 240V) compared to the standard TQD series (10kAIC at 240V).
