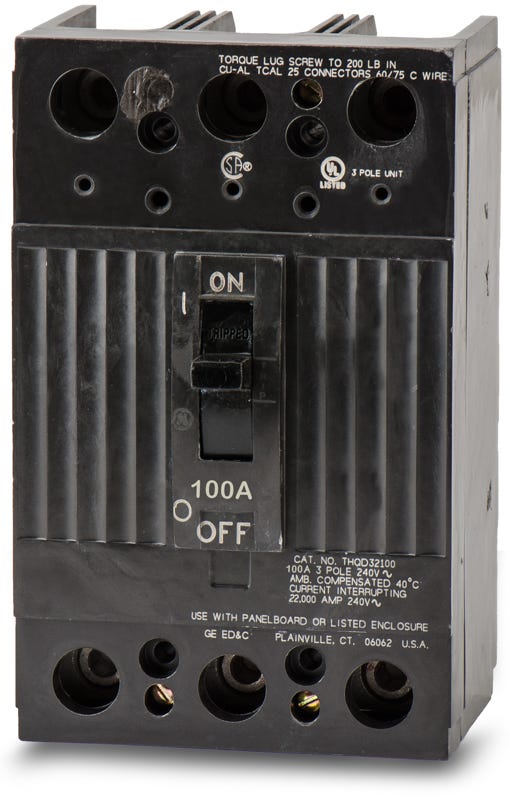

ABB / General Electric THQD32100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Unit Mount
ABB / General Electric
THQD32100
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQD32100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQD32100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQD32100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQD32100 |
| Series | THQD |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, GE Meter Stacks, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, High Interrupting Capacity, Reverse Feed |
Quantity
ABB / General Electric THQD32100 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQD32100-R |
| Series | THQD |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, GE Meter Stacks, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, High Interrupting Capacity, Reverse Feed |
Similar Items
ABB / General ElectricTHQD32125WL
125A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQD32150WL
150A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQD32150
150A 3 Pole Molded Case Circuit Breaker
Description
Engineered for three-phase systems, the GE THQD32100 is a 100A MCCB from the Q-Line family. It provides essential overcurrent protection for commercial and industrial environments. The unit mount design allows installation into GE A-Series panelboards, Spectra panels, meter stacks, and enclosures. It comes equipped with load lugs terminating 4 AWG to 300 kcmil conductors. Operating with a 22kAIC rating at 240VAC, the breaker employs fixed thermal-magnetic trip units for precise LI functions.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQD32100 |
| Series | THQD |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, GE Meter Stacks, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, High Interrupting Capacity, Reverse Feed |
Product FAQs
6 answersWhat panelboards are compatible with the THQD32100?
It is designed for bolt-on installation in GE A-Series and Spectra Series panelboards, as well as compatible GE meter stacks and standalone enclosures.
What is the difference between the GE TQD and THQD series breakers?
The H in THQD designates a higher interrupting capacity. While standard TQD breakers are typically rated at 10kAIC, the THQD series provides a 22kAIC rating at 240V for environments with higher available fault currents.
What does the WL suffix mean in THQD32100WL?
The WL suffix indicates that the breaker comes with factory-installed wire lugs. The THQD32100 and THQD32100WL are functionally identical and are often used interchangeably in the field.
Can the THQD32100 be backfed when used as a main breaker?
Yes. Because this thermal magnetic breaker does not have specific Line and Load markings, it can be safely backfed and used as a main breaker in compatible panelboards.
Why might this breaker arrive with an ABB label instead of GE?
ABB acquired GE Industrial Solutions in 2018. As a result, newly manufactured Q-Line breakers like the THQD32100 may feature ABB branding. They retain the exact same form, fit, and function as the legacy GE-branded units and are fully interchangeable.
Does the THQD32100 have an adjustable trip setting?
No, this breaker features a fixed thermal and fixed magnetic trip unit. It provides standard long-time and instantaneous protection functions that cannot be adjusted in the field.
