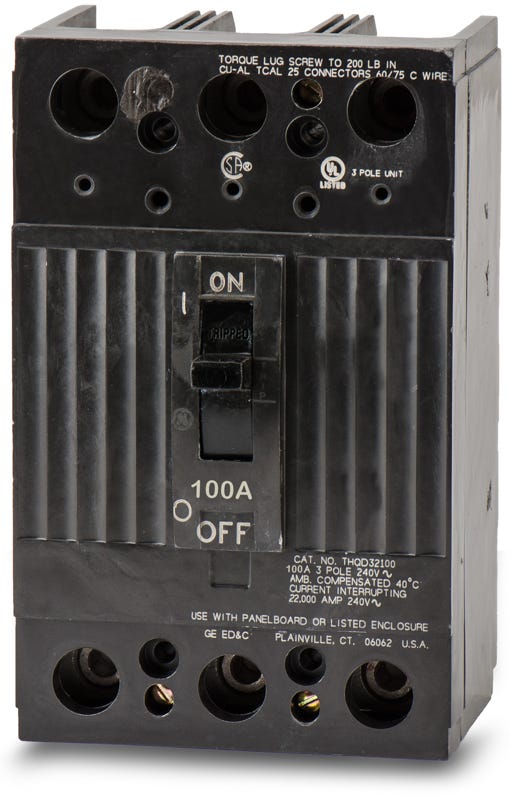

ABB / General Electric THQD32100WL Molded Case Circuit Breaker
- 100A
- 3 Pole
- Unit Mount
ABB / General Electric
THQD32100WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQD32100WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQD32100WL - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQD32125WL
125A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQD32150
150A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQD32150WL
150A 3 Pole Molded Case Circuit Breaker
Description
Operating at up to 240VAC, the GE THQD32100WL delivers a 22kAIC interrupting capacity to safely clear faults in demanding commercial and industrial environments. This 3-pole, 100A molded case circuit breaker features a fixed thermal-magnetic trip mechanism and a common trip bar for simultaneous disconnect across all phases. Engineered for seamless integration, this unit-mount breaker installs into GE A-Series panelboards, Spectra Series panelboards, and compatible meter stacks.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQD32100WL |
| Series | THQD |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, GE Meter Stacks, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, High Interrupting Capacity |
Product FAQs
8 answersWhat panelboards and enclosures are compatible with the THQD32100WL?
This breaker is designed for use with GE A-Series Panelboards, GE Spectra Series Panelboards, GE Meter Stacks, and compatible standalone enclosures.
What does the WL suffix indicate in the THQD32100WL catalog number?
The WL suffix indicates that the circuit breaker is supplied from the factory with both line and load lugs installed.
What is the difference between the GE TQD32100WL and the THQD32100WL?
The primary difference is the interrupting rating. The standard TQD32100WL is rated at 10kAIC at 240V, while the THQD32100WL is a high-interrupting version rated at 22kAIC at 240V.
Is the THQD32100WL a plug-in or bolt-on circuit breaker?
It is a unit mount, feed-thru circuit breaker. It bolts directly to the enclosure or base rather than plugging onto a standard load center bus.
What wire sizes are accepted by the factory-installed lugs on this breaker?
The included lugs accept copper or aluminum wire ranging from 4 AWG to 300 kcmil.
Can this breaker be used on a 120V system?
Yes, while it has a maximum voltage rating of 240V AC, it is fully rated for use on 120V, 240V, and 120/240V AC systems with a 22kAIC interrupting capacity.
Does this breaker feature adjustable trip settings?
No, it features a fixed thermal and fixed magnetic trip unit, providing standard long-time and instantaneous (LI) protection without field adjustability.
Can the THQD32100WL be used as a main breaker?
Yes, this Q-Line breaker is frequently utilized as a main or sub-feed breaker in compatible meter stacks and panelboards, provided the system fault current does not exceed its 22kAIC rating.
