ABB / General ElectricTHQD32200
Free Shipping Over $99

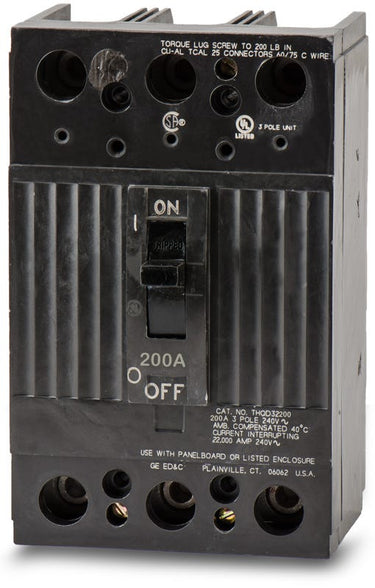

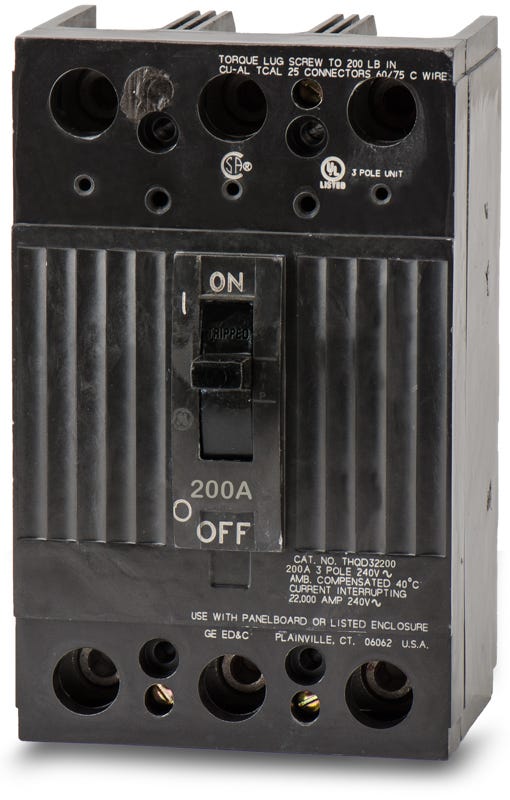

ABB / General Electric THQD32200WL Molded Case Circuit Breaker
- 200A
- 3 Pole
- Unit Mount
ABB / General Electric
THQD32200WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQD32200WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQD32200WL - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQD32200WL - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQD32200WL |
| Series | THQD |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, Individual Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Shunt Trip, Alarm Switch, Lockout Attachment |
|---|---|
| Accessories | Line & Load Lugs (TCAL25) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, High Interrupting Capacity, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
ABB / General Electric THQD32200WL - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQD32200WL |
| Series | THQD |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, Individual Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Shunt Trip, Alarm Switch, Lockout Attachment |
|---|---|
| Accessories | Line & Load Lugs (TCAL25) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, High Interrupting Capacity, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items

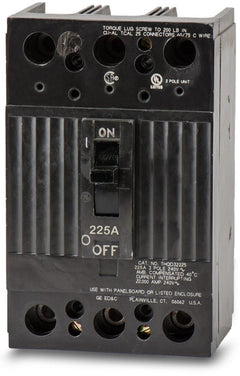

ABB / General ElectricTHQD32225
225A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQD32225WL
225A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQD32175WL
175A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial applications, the THQD32200WL is a 3-pole molded case circuit breaker from GE's Q-Line family. It features a fixed thermal-magnetic trip unit providing long-time and instantaneous protection. This unit-mount MCCB installs into GE A-Series panelboards and individual enclosures. Rated for 200A at 240VAC, it delivers a 22kAIC interrupting capacity. The breaker includes factory-installed TCAL25 line and load lugs for immediate wire termination.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQD32200WL |
| Series | THQD |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, Individual Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Shunt Trip, Alarm Switch, Lockout Attachment |
|---|---|
| Accessories | Line & Load Lugs (TCAL25) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, High Interrupting Capacity, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhat is the difference between the GE THQD32200WL and the TQD32200WL?
The THQD32200WL is the High Interrupting Capacity version, rated at 22kAIC at 240VAC. The standard TQD32200WL shares the same physical dimensions but has a lower interrupting capacity of 10kAIC at 240VAC.
What does the WL suffix indicate on the THQD32200WL catalog number?
The WL suffix designates that the circuit breaker includes factory-installed line and load lugs. Without this suffix, the breaker would typically be supplied without lugs for use with custom bus connections.
Can the THQD32200WL be used in reverse feed applications?
Yes, this circuit breaker is suitable for reverse feed applications. It can be back-fed when installed in compatible panelboards or individual enclosures.
Is the THQD32200WL rated for use with HVAC equipment?
Yes, this circuit breaker is HACR rated, meaning it is tested and approved for use with heating, air conditioning, and refrigeration equipment.
What is the replacement lug part number for the THQD32200WL?
This breaker uses TCAL25 line and load lugs. These lugs accommodate 4 AWG to 300 kcmil copper or aluminum conductors.
Can the trip unit on the THQD32200WL be swapped for a different amperage?
No, the THQD32200WL features a fixed, non-interchangeable thermal magnetic trip unit. The 200A rating cannot be modified in the field.
