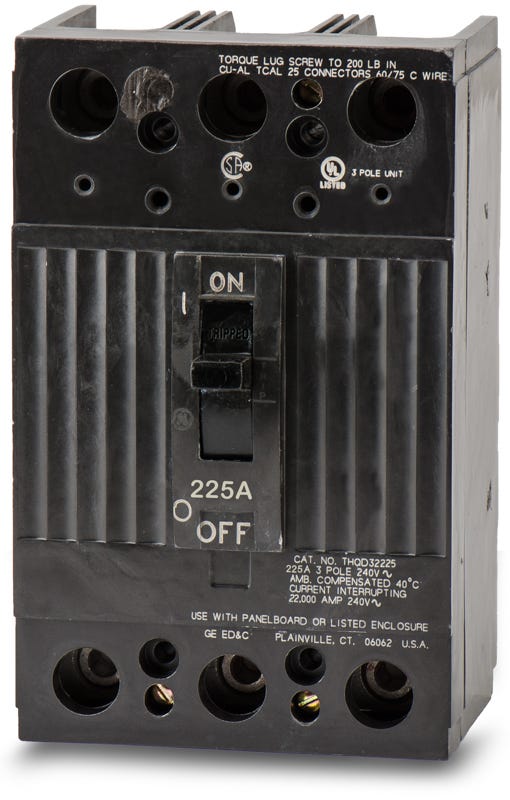

ABB / General Electric THQD32225 Molded Case Circuit Breaker
- 225A
- 3 Pole
- Unit Mount
ABB / General Electric
THQD32225
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQD32225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQD32225 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQD32225 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQD32225 |
| Series | THQD |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs (TCAL25) |
| Standards | UL 489, CSA C22.2 No. 5, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, High Interrupting Capacity, Reverse Feed |
Quantity
ABB / General Electric THQD32225 - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQD32225-R |
| Series | THQD |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs (TCAL25) |
| Standards | UL 489, CSA C22.2 No. 5, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, High Interrupting Capacity, Reverse Feed |
Similar Items
ABB / General ElectricTHQD32200
200A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQD32200WL
200A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQD32175WL
175A 3 Pole Molded Case Circuit Breaker
Description
Delivering reliable commercial power protection, the GE THQD32225 is a 3-pole, 225A molded case circuit breaker designed for industrial applications. It provides robust thermal-magnetic protection for long-time and instantaneous fault conditions. This unit-mount breaker installs into GE A-Series panelboards, Spectra Series panelboards, and individual enclosures. It features standard lugs for secure wire terminations. Rated for 22kAIC at 240VAC, it ensures high interrupting capacity.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQD32225 |
| Series | THQD |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs (TCAL25) |
| Standards | UL 489, CSA C22.2 No. 5, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, High Interrupting Capacity, Reverse Feed |
Product FAQs
9 answersWhat panelboards are compatible with the THQD32225?
This bolt-on circuit breaker is designed specifically for installation in GE A-Series panelboards, GE Spectra Series panelboards, and compatible individual enclosures.
Can I use the THQD32225 as a main breaker or sub-feed?
Yes, this 225A unit-mount breaker is frequently utilized as a main breaker or sub-feed in compatible GE panelboards and enclosures.
What is the difference between the GE TQD32225 and the THQD32225?
The primary difference is the short circuit interrupting capacity. The standard TQD32225 is rated for 10kAIC, while the THQD32225 provides a high interrupting rating of 22kAIC at 240V. Both utilize the same physical frame and mounting style.
Are the THQD32225 and THQD32225WL the same circuit breaker?
Yes. The "WL" suffix in the GE catalog simply indicates that the breaker is supplied with standard line and load lugs. The base THQD32225 model includes these lugs by default.
What wire sizes are accepted by the lugs on the THQD32225?
The included lugs are designed to accommodate either copper or aluminum conductors ranging from 4 AWG up to 300 kcmil.
Can the THQD32225 be reverse fed?
Yes, standard GE THQD molded case circuit breakers do not have line and load restrictions, making them suitable for reverse feed applications.
Does this breaker mount onto a DIN rail?
No. The THQD32225 is a bolt-on, unit-mount circuit breaker. It must be bolted securely to the busbars of a compatible panelboard or enclosure, rather than clipped onto a DIN rail.
What does the LI trip function code mean for this breaker?
The LI code indicates that the breaker uses a thermal-magnetic trip unit with Long-Time (L) and Instantaneous (I) protection. This provides standard defense against prolonged overloads and sudden short circuits. Both trip points are fixed.
Does the THQD32225 provide ground fault or arc fault protection?
No, this is a standard thermal-magnetic circuit breaker. It does not include Ground Fault Circuit Interrupter (GFCI) or Arc Fault Circuit Interrupter (AFCI) safety features.
