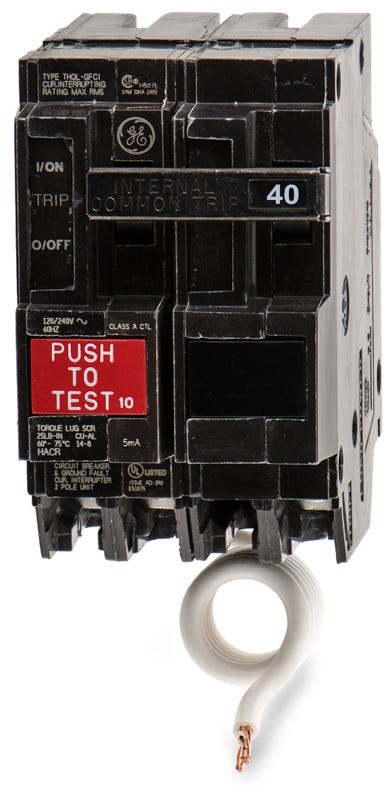

ABB / General Electric THQL2140GF1 GFCI Miniature Circuit Breaker
- 40A
- 2 Pole
- Plug-On
ABB / General Electric
THQL2140GF1
GFCI Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQL2140GF1
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQL2140GF1 - 40A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQL2140GF
40A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQL2145GFT2
45A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQL2150GFT
50A GFCI Miniature Circuit Breaker
Description
Designed for enhanced safety, the GE THQL2140GF1 is a 40A, two-pole GFCI breaker with self-test functionality. It operates at 120/240VAC and includes a pigtail neutral for ground-fault detection. The plug-on design allows quick installation into GE PowerMark Gold, ABB ReliaHome, and AQ Lighting Panels. It is replaced by the THQL2140GFT. Rated for 10kAIC, this thermal-magnetic breaker provides an internal common trip. It is HACR rated and compliant with NEC wet location codes.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL2140GF1 |
| Series | THQL |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers, GE AQ Lighting Panels |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | HACR, NEMA AB 1, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Self-Test, Common Trip, Quick-Make/Quick-Break |
Product FAQs
6 answersWhich load centers are compatible with the THQL2140GF1 breaker?
This breaker is designed for use in GE PowerMark Gold, GE PowerMark Plus, ABB ReliaHome load centers, and GE AQ lighting panels that accept 1-inch THQL plug-in breakers.
Do I need to connect a load neutral to this breaker if I am powering a straight 240V load?

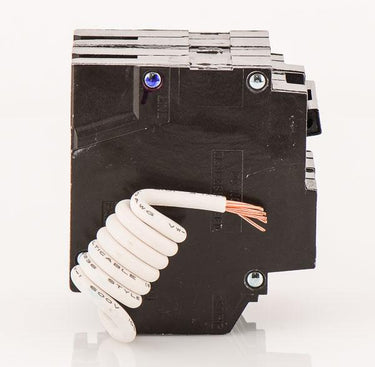

No. For dedicated 240V loads that do not require a neutral, you do not connect a load neutral to the breaker. However, the breaker's coiled white pigtail wire must still be connected to the panel's neutral bus bar for the ground fault detection to function properly.
What are the recommended lug tightening torque specifications for the THQL2140GF1?
The recommended torque depends on the wire size used. Torque 8 AWG wire to 40 in-lbs, 6 to 4 AWG to 45 in-lbs, and 3 AWG to 50 in-lbs.
What is the ground fault trip threshold for this breaker?
The THQL2140GF1 is a Class A Ground Fault Circuit Interrupter (GFCI) with a 5mA trip threshold, designed for personnel protection.
Is this breaker manufactured by GE or ABB?
ABB acquired GE Industrial Solutions. Breakers previously branded as General Electric are now manufactured by ABB under the ReliaHome line. They retain the exact same THQL form factor, UL listings, and compatibility as the legacy GE breakers.
Can I install the THQL2140GF1 in a Square D or Eaton load center?
No. While 1-inch interchangeable breakers may physically fit, installing a GE or ABB THQL breaker in a non-GE or non-ABB panel violates UL listings and National Electrical Code (NEC) requirements. It must only be installed in approved GE or ABB load centers.
