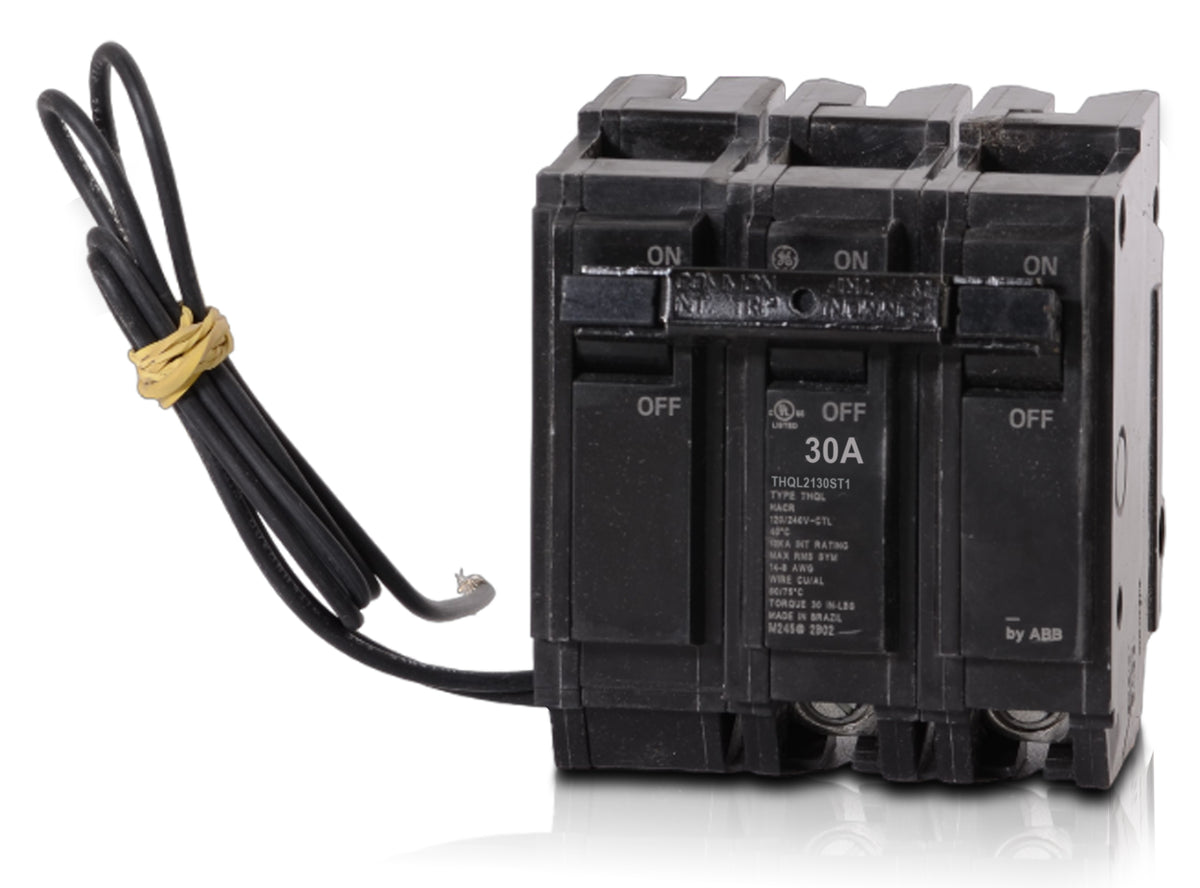

ABB / General Electric THQL2130ST1 Miniature Circuit Breaker
- 30A
- 2 Pole
- Plug-On
ABB / General Electric
THQL2130ST1
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQL2130ST1
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQL2130ST1 - 30A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQL2120ST1
20A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQL2150ST1
50A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQL2160ST1
60A 2 Pole Miniature Circuit Breaker
Description
Engineered for commercial and industrial control systems, the THQL2130ST1 features a factory-installed 120VAC shunt trip accessory for remote circuit disconnection. This 2-pole, 30A plug-on breaker mounts into GE PowerMark Gold load centers and A-Series panelboards. Rated at 10 kAIC at 120/240VAC, it utilizes thermal-magnetic trip technology with an internal common trip bar. The Q-Line breaker is HACR rated and ensures reliable quick-make/quick-break operation.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | THQL |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (120VAC) |
| Standards | HACR, UL 489 |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Product FAQs
7 answersWhat does the ST1 suffix indicate on this GE circuit breaker?
The ST1 suffix means this breaker includes a factory-installed 120V AC shunt trip. This allows the breaker to be opened remotely by an external control signal, such as an emergency stop or fire alarm interface.
How is the shunt trip wired on the THQL2130ST1?
The breaker includes factory-installed pigtail wires for the 120V AC shunt trip coil. These wires must be connected to your external control circuit to enable remote tripping.
What voltage is required to operate the shunt trip on this breaker?
The ST1 suffix indicates a 120V AC shunt trip coil. You must supply 120V AC to the shunt trip pigtail wires to remotely open the breaker.
Can I use the THQL2130ST1 in a bolt-on panelboard?
No. The THQL series features a plug-in mounting style. For GE A-Series or Spectra lighting panels that require bolt-on connections, you will need the equivalent THQB series breaker, such as the THQB2130ST1.
How much panel space does the THQL2130ST1 require?
This 2-pole breaker is 2 inches wide and requires two standard 1-inch spaces in a compatible GE load center. The factory-installed shunt trip is internal and does not require an additional pole space.
Are ABB and GE THQL2130ST1 breakers the same?
Yes. ABB acquired GE Industrial Solutions in 2018. The THQL2130ST1 is manufactured to the exact same specifications and fits the same panels, regardless of whether the label says GE or ABB.
Does this breaker include ground fault or arc fault protection?
No. The THQL2130ST1 is a standard thermal-magnetic breaker with a shunt trip. It does not provide GFCI or AFCI protection.
