ABB / General Electric THQL2140ST1 Miniature Circuit Breaker
- 40A
- 2 Pole
- Plug-On
ABB / General Electric
THQL2140ST1
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQL2140ST1
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

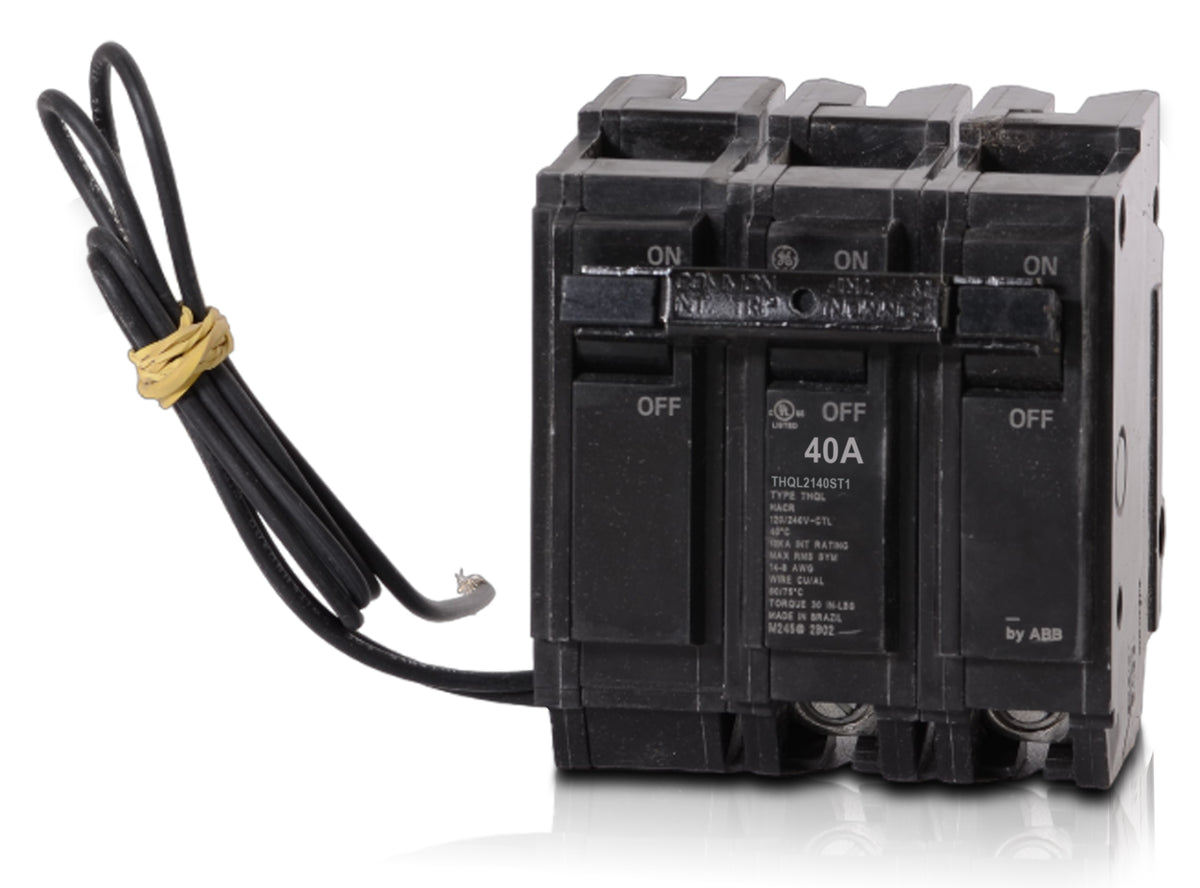

ABB / General Electric THQL2140ST1 - 40A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQL2130ST1
30A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQL2160ST1
60A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQL2120ST1
20A 2 Pole Miniature Circuit Breaker
Description
Part of the Q-Line series, this 40A, 2-pole miniature circuit breaker is designed for commercial and industrial environments. It provides standard thermal-magnetic protection for 120/240VAC circuits. The plug-on design installs into GE PowerMark Gold load centers and GE A-Series panelboards. It accommodates 8-3 AWG copper or aluminum conductors through secure box lug connections. A factory-installed 120VAC shunt trip allows the breaker to be tripped remotely.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL2140ST1 |
| Series | THQL |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE PowerMark Gold Load Centers, GE A-Series Panelboards |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (Factory Installed) |
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Product FAQs
5 answersWhat does the ST1 suffix indicate on the THQL2140ST1?
The ST1 suffix denotes a factory-installed 120VAC shunt trip. This internal accessory allows the breaker to be tripped remotely when a 120V control signal is applied, which is commonly used for emergency power-off (EPO) systems or remote equipment shutdown.
How is the remote trip function activated on the THQL2140ST1?
The breaker provides a connection for an external 120VAC control circuit. When 120V is applied to the shunt trip connection via a remote switch, relay, or emergency stop button, it energizes the internal coil and mechanically trips the breaker.
Which panelboards are compatible with the THQL2140ST1?
This plug-on breaker is compatible with GE PowerMark Gold load centers and GE A-Series panelboards. As a standard Q-Line breaker, it requires two 1-inch spaces on the busbar.
Can the THQL2140ST1 replace a THQB bolt-on breaker?
No. While they share the same Q-Line thermal-magnetic trip profiles, THQL breakers are plug-on and cannot be installed in commercial panels that require THQB bolt-on connections.
Why might the THQL2140ST1 arrive with ABB branding instead of GE?
Following ABB's acquisition of GE Industrial Solutions, Q-Line breakers are transitioning to ABB branding. The breakers are manufactured to the exact same specifications, carry the same UL listings, and are direct drop-in replacements for older GE-branded units.
