ABB / General ElectricTHQL21125
Free Shipping Over $99

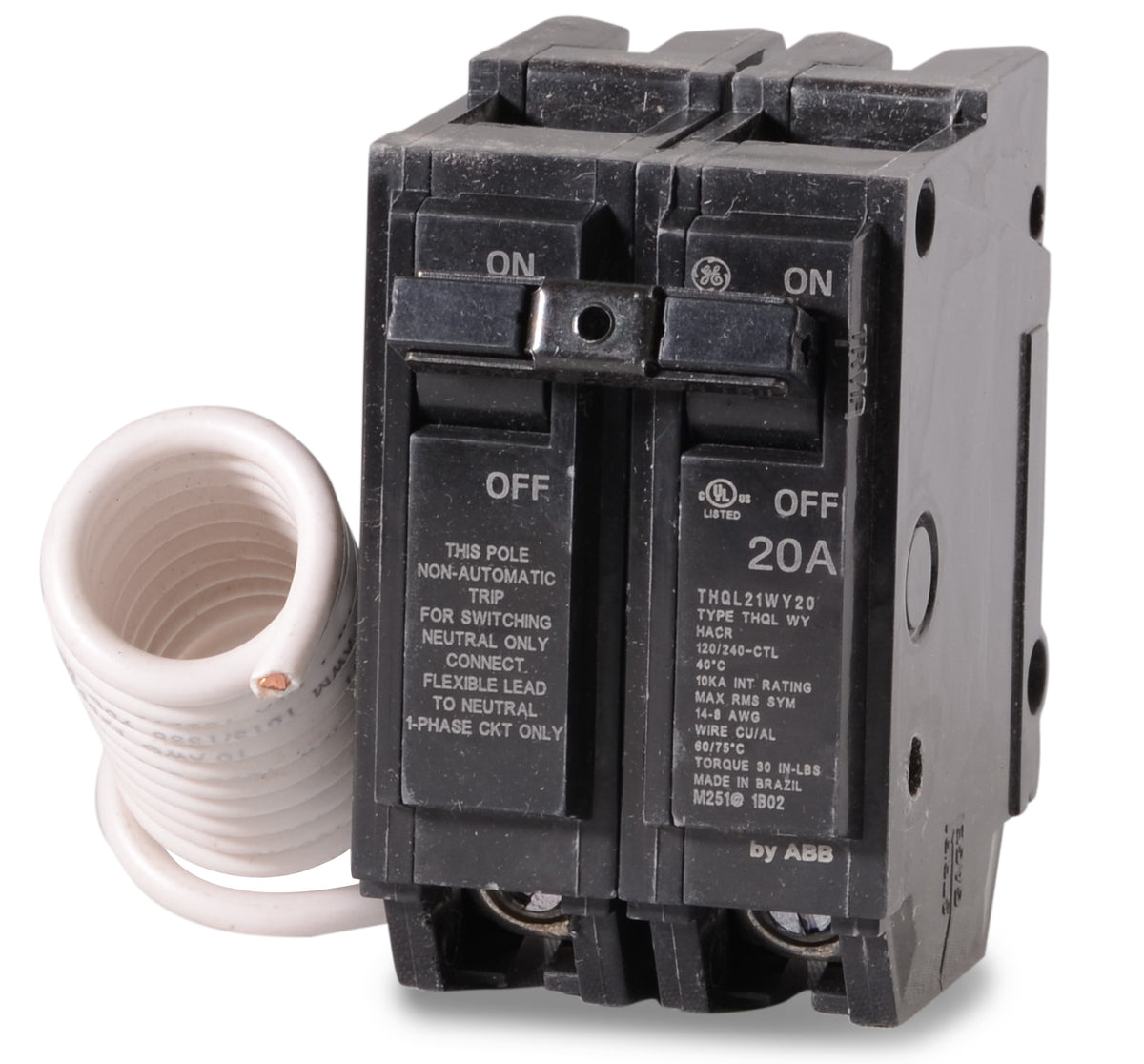

ABB / General Electric THQL21WY20 Molded Case Circuit Breaker
- 20A
- 2 Pole
- Plug-On
ABB / General Electric
THQL21WY20
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQL21WY20
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQL21WY20 - 20A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQL32020
20A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQL32020ST1
20A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQC2120
20A 2 Pole Molded Case Circuit Breaker
Description
Part of the Q-Line series, the GE THQL21WY20 is a 20A, 2-pole circuit breaker. It features a specialized switched neutral design that safely disconnects both the ungrounded and grounded conductors simultaneously. The plug-on unit installs into GE PowerMark Gold load centers and A-Series panelboards. It accommodates 14-8 AWG copper or 12-8 AWG aluminum wire connections. Rated for 10kAIC at 120/240V, this breaker provides dependable thermal-magnetic protection.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL21WY20 |
| Series | THQL |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Switching Neutral (Factory Configured) |
| Standards | CSA C22.2 No. 5, HACR, SWD, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break, Switching Neutral |
| Special Features | Switching Neutral |
Product FAQs
6 answersWhich panelboards and load centers accept the THQL21WY20 breaker?
This plug-in breaker installs directly into GE PowerMark Gold load centers and GE A-Series panelboards.
What is the purpose of the switched neutral design on the THQL21WY20?
The switched neutral configuration uses one thermal magnetic pole and one nonautomatic pole to safely disconnect both the ungrounded and grounded conductors simultaneously.
Does the THQL21WY20 provide thermal magnetic protection on both poles?
No. It is a switched neutral breaker featuring one thermal magnetic pole for overcurrent protection and one nonautomatic pole that simply disconnects the neutral conductor.
What wire gauges are compatible with the THQL21WY20 box lugs?
The terminals accommodate 14 to 8 AWG copper conductors or 12 to 8 AWG aluminum conductors.
How does the trip mechanism function on the THQL21WY20?
It features a fixed thermal magnetic trip unit with long-time and instantaneous (LI) functions to provide reliable protection against overloads and short circuits.
What is the UPC for the THQL21WY20 circuit breaker?
The UPC for this ABB and General Electric circuit breaker is 783164161632.
