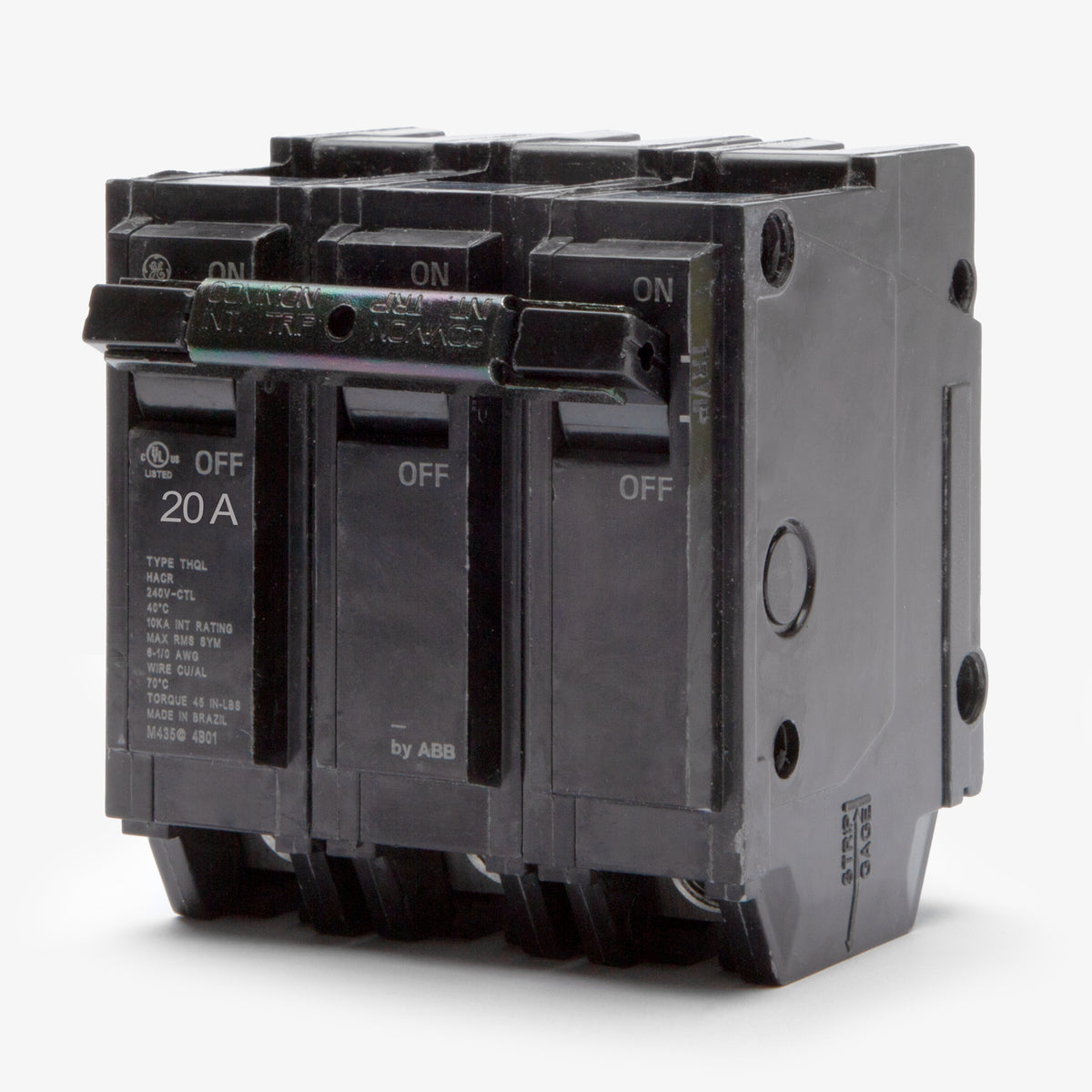

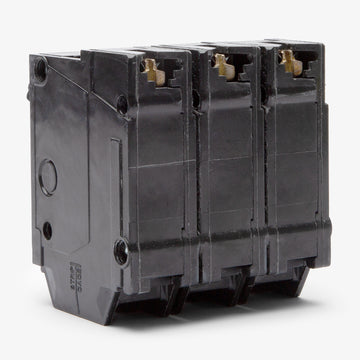

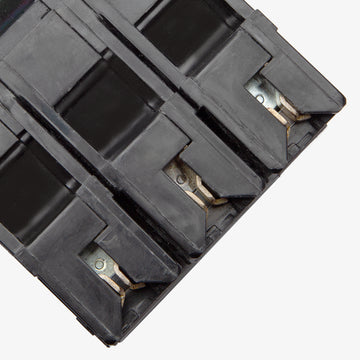

ABB / General Electric THQL32020 Molded Case Circuit Breaker
- 20A
- 3 Pole
- Plug-On
ABB / General Electric
THQL32020
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQL32020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQL32020 - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQL32020 - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL32020 |
| Series | THQL |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE PowerMark Gold Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Sold out
Quantity
ABB / General Electric THQL32020 - 20A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL32020-R |
| Series | THQL |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE PowerMark Gold Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Similar Items
ABB / General ElectricTHQL32040ST1
40A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQL32060
60A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQL32060ST1
60A 3 Pole Molded Case Circuit Breaker
Description
Utilizing thermal-magnetic trip technology, this 20A three-pole component safeguards commercial and industrial circuits against overloads and short circuits. The HACR rating makes it suitable for heating and air conditioning equipment. It installs securely into three-phase GE A-Series panelboards and compatible PowerMark Gold load centers. The plug-on configuration allows for efficient integration without the need for bolted connections.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL32020 |
| Series | THQL |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE PowerMark Gold Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Product FAQs
6 answersWhich panelboards and load centers accept the THQL32020 circuit breaker?
This 3-pole plug-on breaker is designed for use in compatible GE PowerMark Gold load centers and GE A-Series panelboards.
How much panel space does this 3-pole breaker require?
As a standard Q-Line breaker, it requires three 1-inch spaces, occupying a total of 3 inches on the load center or panelboard busbar.

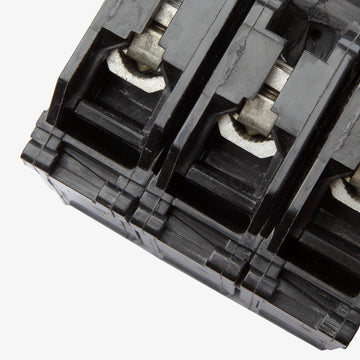

What wire sizes and materials are accepted by the box lugs on this breaker?
The terminals accept 14 to 8 AWG solid or stranded copper wire, and 12 to 8 AWG aluminum wire. Always verify the exact torque specifications printed on the breaker label before terminating.
Can this breaker be installed in a standard residential single-phase panel?
No. Because it is a 3-pole breaker, it requires a 3-phase load center or panelboard. Installing it in a standard single-phase panel is not possible or safe.
Are ABB and GE THQL series breakers interchangeable?
Yes. ABB acquired GE Industrial Solutions, so breakers currently manufactured under the ABB brand for the Q-Line series are exact replacements for older GE branded units.
Does this breaker feature an adjustable trip setting?
No, this breaker features a fixed thermal-magnetic trip unit. The long-time and instantaneous trip functions are factory set and cannot be adjusted in the field.
