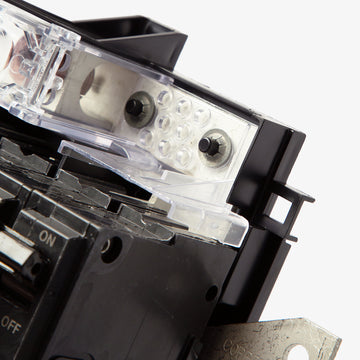

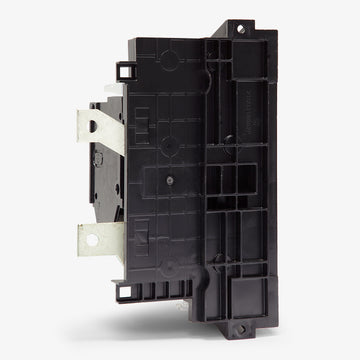

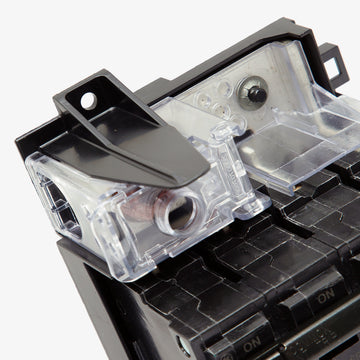

ABB / General Electric THQMV100E Molded Case Circuit Breaker
- 100A
- 2 Pole
- Plug-On
ABB / General Electric
THQMV100E
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQMV100E
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQMV100E - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQMV125D
125A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQMV125E
125A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHQMV150D
150A 2 Pole Molded Case Circuit Breaker
Description
Built for modern power distribution, the GE THQMV100E is a 100A, 2-pole main circuit breaker kit designed for residential and commercial facilities. This plug-on breaker mounts into 150A to 225A GE PowerMark Gold and ABB ReliaHome load centers. It serves as a drop-in replacement for the legacy THQMV100D model, coming complete with a mounting base, filler plate, and lugs. Rated for 22kAIC at 120/240VAC, the unit utilizes fixed thermal-magnetic trip elements for consistent protection.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQMV100E |
| Series | THQMV |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE PowerMark Gold Load Centers (150A-225A), ABB ReliaHome Load Centers |
| Wire Gauge | 1 AWG - 300 kcmil (Cu), 2/0 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 1 AWG (Cu), 2/0 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Accessories | Mounting Base, Filler Plate, Lugs |
|---|---|
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 60C, 75C |
| Construction Features | Main Breaker, Common Trip, Quick-Make/Quick-Break, HACR Rated, High Interrupting Capacity |
Product FAQs
7 answersWhich load centers are compatible with the THQMV100E breaker?
This plug-on main breaker is designed for use in 150A to 225A GE PowerMark Gold and ABB ReliaHome load centers.
Is the THQMV100E used as a main breaker or a branch breaker?
The THQMV100E is specifically designed to function as a main circuit breaker in compatible load centers, rather than as a standard branch breaker.
Can the THQMV100E replace older THQMV100D breakers?
Yes, the THQMV100E serves as a direct drop-in replacement for the legacy THQMV100D main breaker model.
Does the THQMV100E include the necessary mounting hardware?
Yes, this main circuit breaker kit comes complete with the mounting base, filler plate, and lugs required for installation.
Is the THQMV100E suitable for heating, air conditioning, and refrigeration equipment?
Yes, this breaker is HACR rated, making it suitable for protecting heating, air conditioning, and refrigeration circuits.
How does the THQMV100E handle faults across its two poles?
It features an internal common trip mechanism, ensuring that both poles open simultaneously during an overload or fault condition to safely disconnect power.
Why might this breaker arrive with either ABB or GE branding?
Following ABB acquiring GE Industrial Solutions, these breakers are manufactured to the exact same specifications but may feature either ABB or GE branding on the label and packaging.
