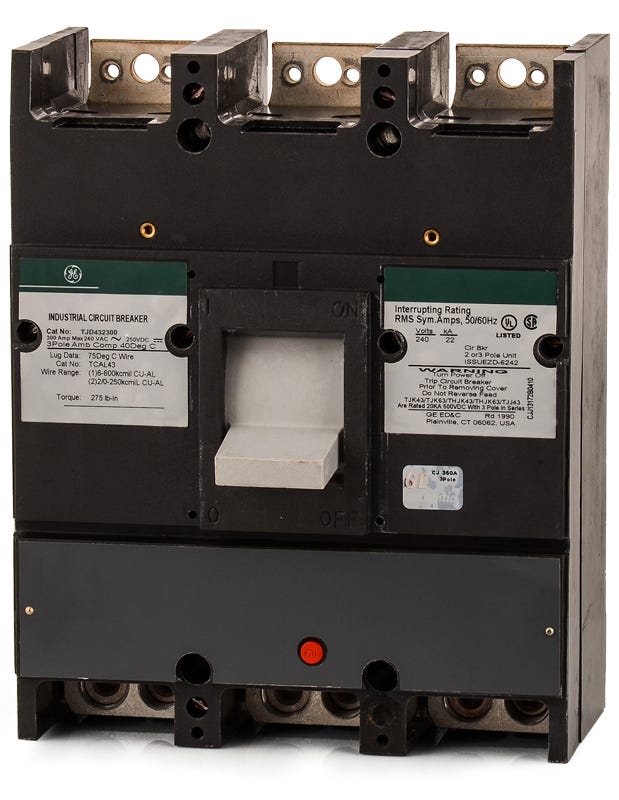

ABB / General Electric TJD432300 Molded Case Circuit Breaker
- 300A
- 3 Pole
- Bolt-On
ABB / General Electric
TJD432300
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TJD432300
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TJD432300 - 300A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTJD432250
250A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTJD432400
400A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTJD422300
300A 2 Pole Molded Case Circuit Breaker
Description
Engineered for power distribution, the GE TJD432300 provides 300A of reliable overcurrent defense. It utilizes a fixed thermal-magnetic trip mechanism for long-time and instantaneous (LI) protection. Designed with a bolt-on mounting style, this 3-pole breaker integrates into GE Spectra and A-Series panelboards. The ABB Tmax XT5 serves as a substitute when paired with a retrofit kit. Featuring a 22kAIC rating at 240VAC, it effectively interrupts faults. The unit comes equipped with load lugs.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJD432300-R |
| Series | TJD |
| Amperage | 300A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC, 20kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Panelboards |
| Wire Gauge | (1) 6 AWG-600 kcmil or (2) 2/0 AWG-250 kcmil (Cu/Al) |
| Max Wire | 600 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Lugs (TCAL43) |
| Standards | UL 489, NEMA AB 1 |
| Approval | UL, CSA |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Common Trip |
Product FAQs
5 answersWhat panelboards are compatible with the TJD432300 breaker?
This J-frame breaker is designed for bolt-on installation in GE A-Series and GE Spectra panelboards.
What wire sizes do the standard lugs on the TJD432300 accept?
The included lugs accept either one 6 AWG to 600 kcmil conductor or two 2/0 AWG to 250 kcmil conductors. They are rated for both copper and aluminum wiring.
Is the TJD432300 rated for direct current applications?
Yes, this breaker is rated for use in DC systems up to 250VDC, providing a 20kA interrupting capacity at that voltage.
Can the trip settings be adjusted on this breaker?
No, the TJD432300 features a thermal magnetic trip unit with fixed long-time and fixed instantaneous trip functions. Neither setting is field adjustable.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. Legacy GE molded case circuit breakers like the TJD series are now manufactured and supported under the ABB brand portfolio.
