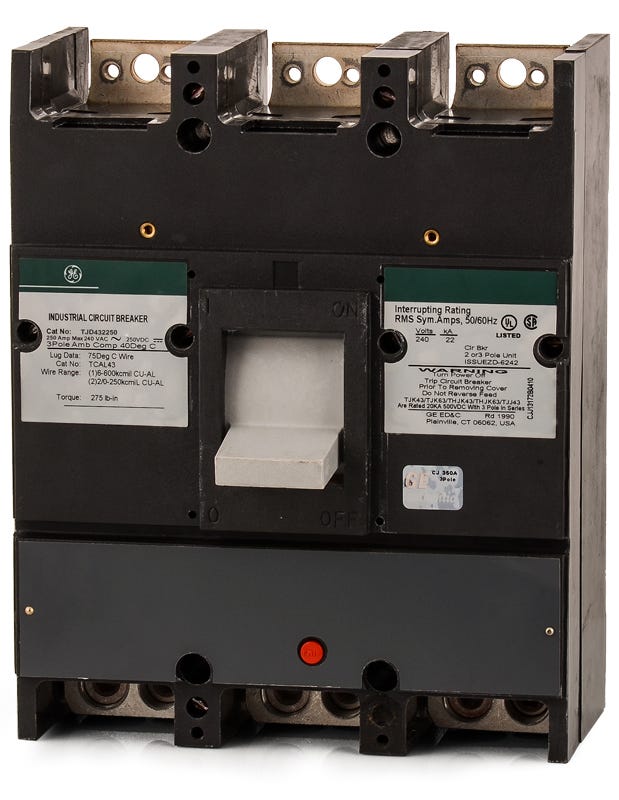

ABB / General Electric TJD432250 Molded Case Circuit Breaker
- 250A
- 3 Pole
- Bolt-On
ABB / General Electric
TJD432250
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TJD432250
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TJD432250 - 250A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTJD432350
350A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTJD432400
400A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTJD432250WL
250A 3 Pole Molded Case Circuit Breaker
Description
Providing essential overcurrent safety, the GE TJD432250 3-pole, 250A molded case circuit breaker utilizes a fixed thermal and adjustable magnetic trip unit to handle commercial loads. This bolt-on breaker mounts into GE A-Series panelboards, Spectra Series panels, and switchboards. It features load lugs only, as the line side bolts to the panel bus. It can be replaced by the Tmax XT4 using a retrofit kit. It delivers a 22kAIC interrupting rating at 240VAC for reliable performance.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJD432250-R |
| Series | TJD |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC, 20kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, GE Switchboards |
| Wire Gauge | (1) 6 AWG-600 kcmil or (2) 2/0 AWG-250 kcmil (Cu/Al) |
| Max Wire | 600 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included (TCAL43) |
| Standards | UL 489, NEMA AB 1 |
| Approval | UL, CSA |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Reverse Feed |
