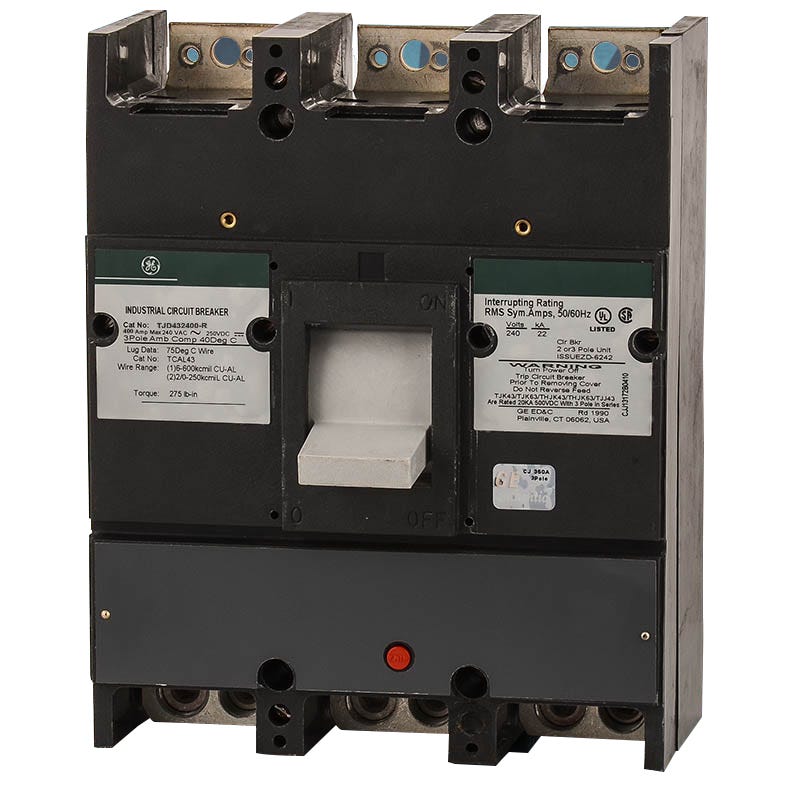

ABB / General Electric TJD432400 Molded Case Circuit Breaker
- 400A
- 3 Pole
- Bolt-On
ABB / General Electric
TJD432400
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TJD432400
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TJD432400 - 400A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTJD432300
300A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTJD432250
250A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTJD432400WL
400A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial power distribution, the GE TJD432400 is a 400A, 3-pole molded case circuit breaker. It features a robust J-Frame construction with a non-interchangeable thermal magnetic trip unit providing long-time and instantaneous (LI) protection. This bolt-on breaker installs into GE A-Series and Spectra panelboards. As a legacy component, it serves as a replacement for older TJJ432400 units. Rated for 22kAIC at 240VAC, it delivers reliable short-circuit protection.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJD432400-R |
| Series | TJD |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC, 20kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Panelboards |
| Wire Gauge | (1) 6 AWG - 600 kcmil or (2) 2/0 AWG - 250 kcmil (Cu/Al) |
| Max Wire | 600 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (Load Side Only) |
| Standards | UL 489, NEMA AB-1, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Common Trip |
Product FAQs
6 answersWhich panelboards are compatible with the TJD432400?
This bolt-on J-Frame breaker is designed for direct installation into GE A-Series and GE Spectra panelboards.
Can the TJD432400 replace older TJJ series circuit breakers?
Yes, this legacy J-Frame component serves as a direct replacement for the older TJJ432400 unit. It features the same physical footprint and mounting configuration.
What wire sizes and materials are supported by the terminal lugs?
The standard lugs accept either a single 6 AWG to 600 kcmil conductor or dual 2/0 AWG to 250 kcmil conductors per phase. They are rated for use with both copper and aluminum wiring.
How do you identify a tripped state and reset the breaker?
A trip event is indicated when the operating handle rests in a center position midway between ON and OFF. To reset the internal mechanism, firmly move the handle to the extreme OFF position before returning it to the ON position.
What does the fixed LI trip function mean for operation?
The LI code designates a thermal magnetic trip unit with Long-Time (overload) and Instantaneous (short circuit) protection. Because both elements are fixed, the trip curve cannot be field adjusted.
Is the TJD432400 suitable for direct current applications?
Yes, this model carries a DC interrupting rating of 20kA at up to 250VDC, making it suitable for select direct current systems as well as standard alternating current distribution.
