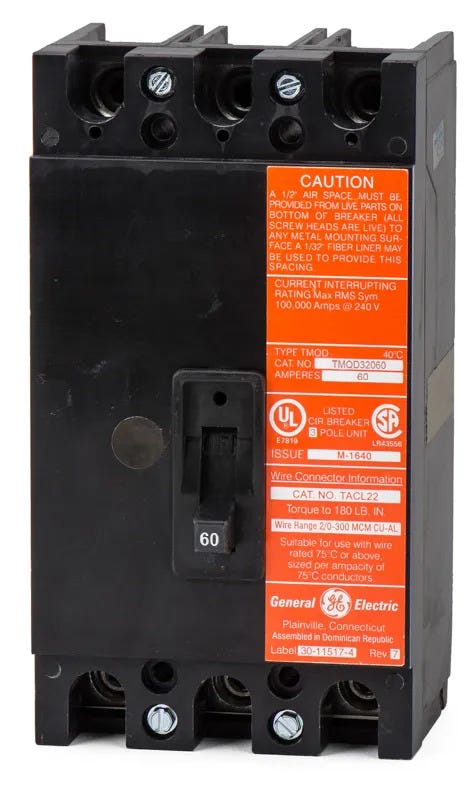

ABB / General Electric TMQD32060 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Bolt-On
ABB / General Electric
TMQD32060
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TMQD32060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TMQD32060 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TMQD32060 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TMQD32060 |
| Series | TMQD |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC |
| Frame Type | TMQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Meter Mod Meter Stacks, GE Panelboards |
| Wire Gauge | 6 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Extra High Interrupting Capacity, Non-Interchangeable Trip, Tenant Main |
Sold out
Quantity
ABB / General Electric TMQD32060 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TMQD32060-R |
| Series | TMQD |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC |
| Frame Type | TMQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Meter Mod Meter Stacks, GE Panelboards |
| Wire Gauge | 6 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Extra High Interrupting Capacity, Non-Interchangeable Trip, Tenant Main |
Similar Items
ABB / General ElectricTMQD32125
125A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTMQD32150
150A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTMQD32175
175A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial distribution, the GE TMQD32060 is a 3-pole, 60A molded case circuit breaker from the MeterMod family. It provides reliable thermal-magnetic protection with fixed long-time and instantaneous trip functions. Designed as a tenant main, this bolt-on MCCB mounts into GE Meter Mod meter stacks and panelboards. It features an extra-high 100kAIC interrupt rating at 240VAC, ensuring robust fault isolation for demanding electrical systems.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TMQD32060 |
| Series | TMQD |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC |
| Frame Type | TMQD |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Meter Mod Meter Stacks, GE Panelboards |
| Wire Gauge | 6 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Extra High Interrupting Capacity, Non-Interchangeable Trip, Tenant Main |
Product FAQs
4 answersWhat enclosures and panels are compatible with the TMQD32060?
This 3-pole breaker is engineered to bolt directly into GE Meter Mod meter stacks and GE A-Series panelboards. It is frequently installed as a tenant main breaker in commercial distribution systems.
What is the current replacement for the TMQD32060?
The TMQD32060 is a legacy component. ABB and General Electric designate the TMQV32060 as the direct replacement for 60A, 3-phase applications requiring a 100kAIC rating in Meter Mod equipment.
What wire gauge is supported by the TMQD32060 terminals?
The factory lugs accommodate copper or aluminum conductors ranging from 6 AWG to 1/0 AWG.
How does the trip unit function on the TMQD32060?
The breaker uses a fixed thermal-magnetic trip unit. It provides non-interchangeable long-time (L) and instantaneous (I) protection to safely clear overloads and short circuits without field adjustability.
