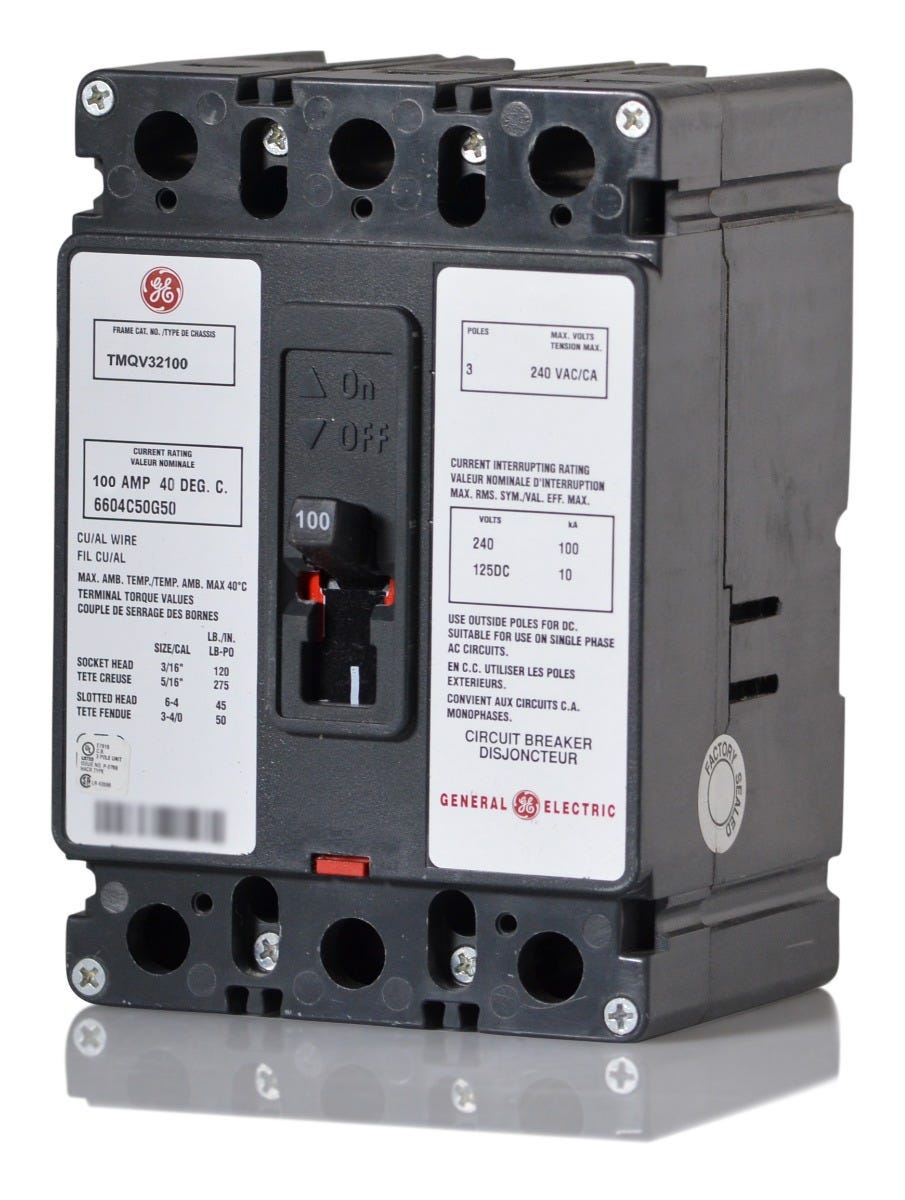

ABB / General Electric TMQV32100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
ABB / General Electric
TMQV32100
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TMQV32100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TMQV32100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTMQV32175
175A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTMQV32200
200A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTMQV32225
225A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial tenant main applications, the TMQV32100 is a 3-pole, 100A molded case circuit breaker from GE's Q-Line family. It provides robust thermal-magnetic protection and is HACR rated for HVAC equipment. This bolt-on breaker mounts into GE Meter Mod III meter stacks and serves as a drop-in replacement for the discontinued TMQD32100. Rated for an extra-high interrupting capacity of 100kA at 240VAC, it safely handles severe fault currents and includes load-side lugs.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TMQV32100 |
| Series | TMQV |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC |
| Frame Type | TMQV |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Meter Mod III Meter Stacks |
| Wire Gauge | #4 AWG - 4/0 AWG (Cu/Al) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Tenant Main, Non-Interchangeable Trip, Extra High Interrupting Capacity |
Product FAQs
6 answersWhat equipment is the TMQV32100 designed to be installed in?
This 3-pole tenant main breaker is specifically engineered to bolt into GE Meter Mod III meter stacks and main modules.
Can the TMQV32100 replace older GE tenant main breakers?
Yes, the TMQV32100 serves as a direct drop-in replacement for the discontinued TMQD32100 circuit breaker, maintaining compatibility with existing meter sockets in Meter Mod III systems.
What wire sizes are accepted by the load lugs on this breaker?
The factory-installed lugs accept #4 AWG to 4/0 AWG copper or aluminum conductors.
Is this breaker suitable for use with heating and cooling equipment?
Yes, the TMQV32100 is HACR rated, making it suitable for protecting multi-family or commercial heating, air conditioning, and refrigeration circuits.
What does the 100kAIC rating indicate for this tenant main breaker?
The 100,000 Ampere Interrupting Capacity (100kAIC) at 240V means this breaker can safely interrupt extremely high fault currents, which is often required in commercial group metering and main distribution applications.
What type of trip unit does the TMQV32100 feature?
It features a non-interchangeable thermal-magnetic trip unit with fixed long-time and instantaneous (LI) trip functions.
