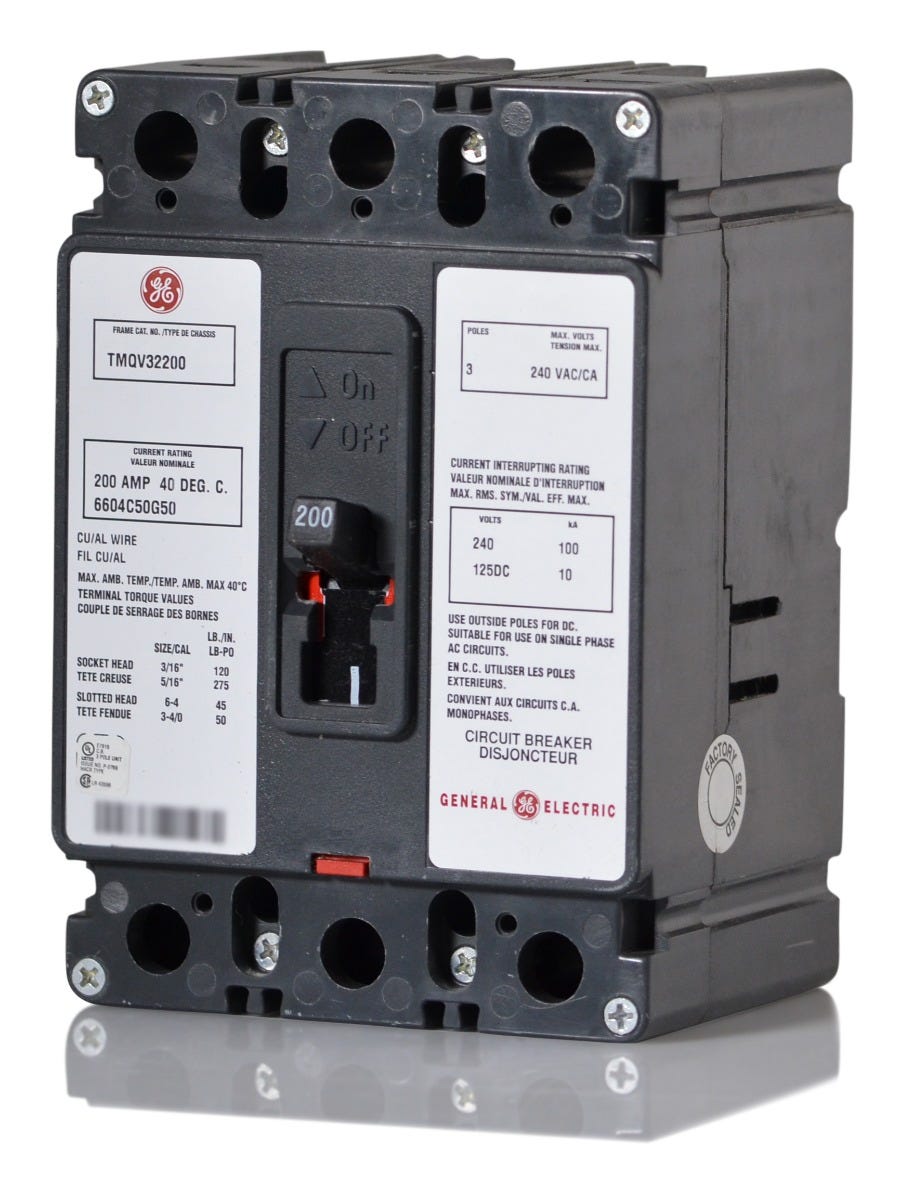

ABB / General Electric TMQV32200 Molded Case Circuit Breaker
- 200A
- 3 Pole
- Bolt-On
ABB / General Electric
TMQV32200
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TMQV32200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TMQV32200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTMQV32175
175A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTMQV32125
125A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTMQV32100
100A 3 Pole Molded Case Circuit Breaker
Description
Built for multi-family and commercial group metering, the GE TMQV32200 is a 200A tenant main breaker. It provides reliable thermal-magnetic protection for distribution systems. This bolt-on MCCB installs into GE Meter Mod III main modules and meter stacks. It serves as a drop-in replacement for the legacy TMQD32200, ensuring seamless panel upgrades. Rated for an extra-high 100kAIC at 240VAC, this three-pole unit features non-interchangeable trip functions and includes load-side lugs.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TMQV |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC |
| Frame Type | TMQV |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Meter Mod III Meter Stacks |
| Wire Gauge | #4 AWG - 4/0 AWG (Cu/Al) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Tenant Main, Non-Interchangeable Trip, Extra High Interrupting Capacity |
Product FAQs
6 answersWhat metering equipment is compatible with the TMQV32200?
This breaker is designed for installation in GE Meter Mod III modular metering stacks and main breaker modules.
Which legacy GE breaker does the TMQV32200 replace?
The TMQV32200 is a direct replacement for the discontinued TMQD32200. It maintains compatibility with existing 200A sockets in GE multi-tenant metering systems.
What are the wire size requirements for the load lugs?
The factory-installed lugs accept copper or aluminum conductors ranging from #4 AWG to 4/0 AWG.
Can the TMQV32200 accept wire sizes larger than 4/0 AWG?
The standard lugs accept up to 4/0 AWG wire. For applications requiring 300 kcmil conductors, you must install the TMQV225L2 lug kit.
How does this breaker mount into the metering panel?
It utilizes a bolt-on connection to attach directly to the buswork inside GE Meter Mod III enclosures.
Is this breaker suitable for use as a tenant main?
Yes, it is designed and rated to serve as a tenant main breaker in multi-family and commercial group metering applications.
