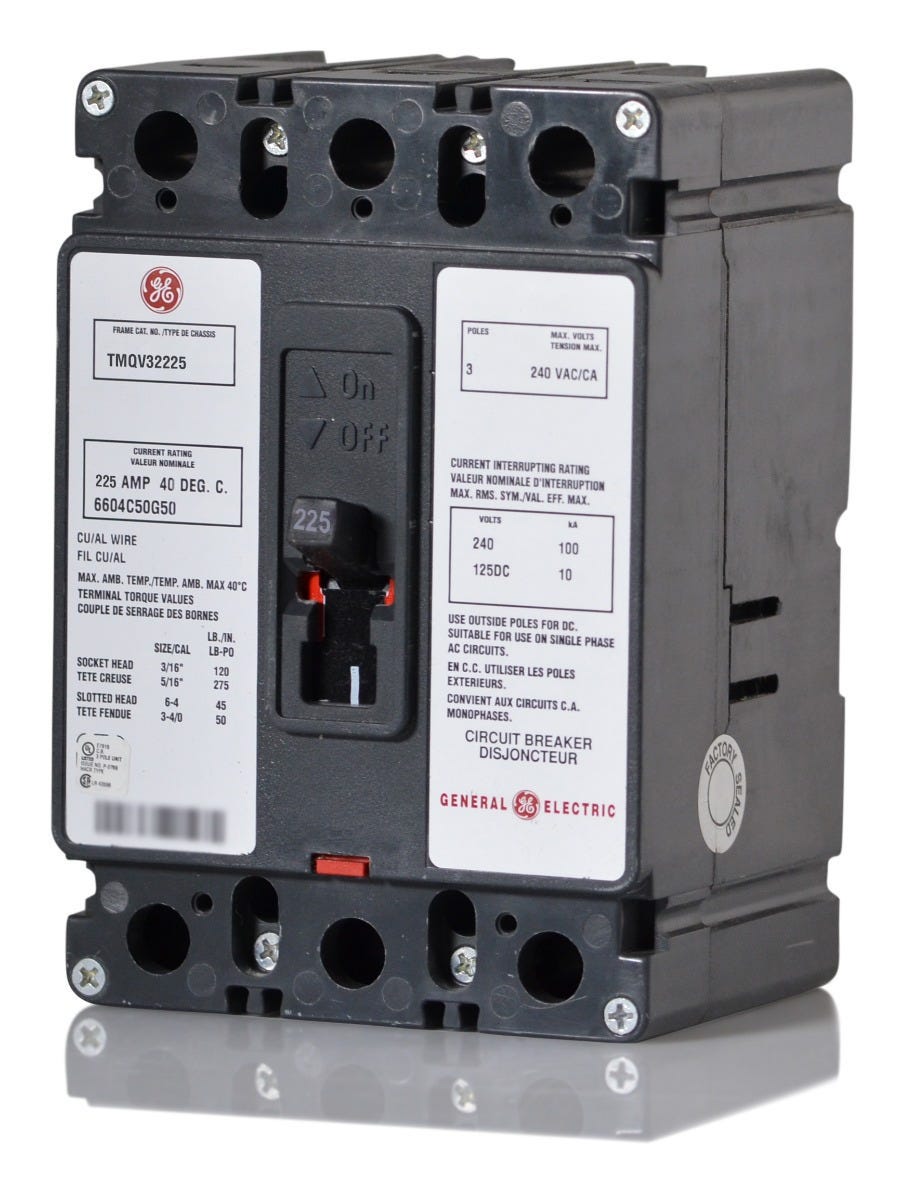

ABB / General Electric TMQV32225 Molded Case Circuit Breaker
- 225A
- 3 Pole
- Bolt-On
ABB / General Electric
TMQV32225
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TMQV32225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TMQV32225 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTMQV32175
175A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTMQV32125
125A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTMQV32100
100A 3 Pole Molded Case Circuit Breaker
Description
Part of the Q-Line family, the GE TMQV32225 is a 225A main circuit breaker for multi-tenant metering. It delivers robust thermal-magnetic protection for commercial electrical systems. Designed for secure bolt-on installation, this breaker fits GE Meter Mod III meter stacks. It replaces the older TMQD32225 model, maintaining compatibility with existing 225A sockets. With a 100kAIC rating at 240VAC, this three-pole unit ensures superior safety and includes factory-installed load lugs.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TMQV32225 |
| Series | TMQV |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC |
| Frame Type | TMQV |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Meter Mod III Meter Stacks |
| Wire Gauge | #4 AWG - 4/0 AWG (Cu/Al) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Tenant Main, Non-Interchangeable Trip, Extra High Interrupting Capacity |
Product FAQs
6 answersWhat equipment is the TMQV32225 designed to be installed in?
This breaker is specifically designed for use as a tenant main breaker in GE Meter Mod III modular metering stacks and main modules.
Can the TMQV32225 replace older GE circuit breakers?
Yes, the TMQV32225 serves as a direct, drop-in replacement for the legacy TMQD32225 circuit breaker. It maintains full compatibility with existing 225A sockets in GE metering equipment.
Why might this breaker arrive with ABB or GE branding?
ABB acquired GE Industrial Solutions in 2018. Depending on the manufacturing date, this breaker may feature either ABB or GE branding, but the physical dimensions, fit, and technical specifications remain identical.
What does the 100kAIC rating mean for this tenant main breaker?
The 100kAIC rating indicates this breaker can safely interrupt up to 100,000 amps of fault current at 240V. This extra-high interrupting capacity is often required in commercial group metering and multi-family distribution systems with high available fault currents.
Does the TMQV32225 come with load-side lugs?
Yes, this breaker includes factory-installed load lugs that accept #4 AWG to 4/0 AWG copper or aluminum wire.
How does this breaker mount into the meter stack?
The TMQV32225 utilizes a secure bolt-on connection to mount directly to the buswork inside GE Meter Mod III metering equipment.
