Square D KDL32100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Unit Mount
Square D
KDL32100
Molded Case Circuit Breaker
Brand
Square D
SKU
KDL32100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

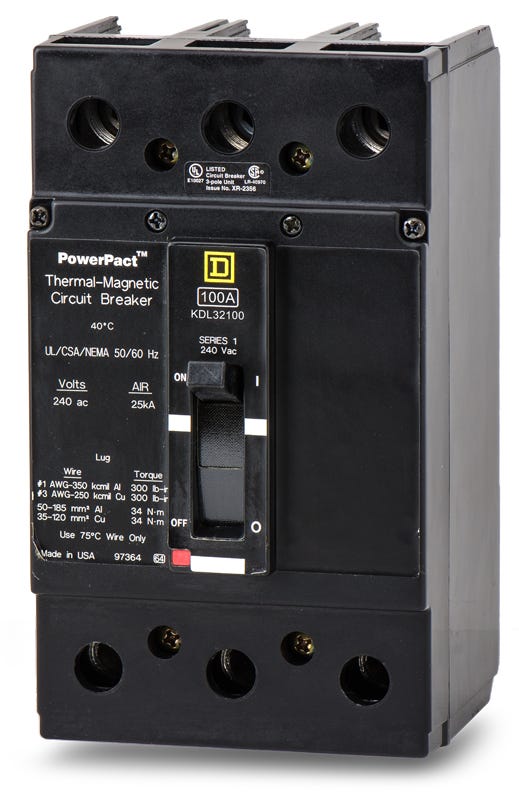

Square D KDL32100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
150A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial applications, the KDL32100 is a 3-pole, 100A molded case circuit breaker from Square D. It provides robust overcurrent protection for demanding electrical distribution systems. This unit mount breaker installs into Square D QO 3-phase load centers, switchboards, and standalone enclosures. Rated for 25 kAIC at 240VAC, it features fixed thermal and adjustable magnetic trip settings (LI) to handle a variety of loads. Accepts 6 AWG to 350 kcmil wire.Specifications
| Brand | Square D |
|---|---|
| Part Number | KDL32100 |
| Series | KDL |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC |
| Frame Type | KDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D QO 3-Phase Load Centers, Square D Enclosures, Switchboards |
| Wire Gauge | 6 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Feed-Thru Connection, Non-Interchangeable Trip |
Product FAQs
7 answersIs the Square D KDL32100 still in active production?
No, the KDL32100 is an obsolete PowerPact K-frame circuit breaker that has been discontinued by Schneider Electric. However, it remains available for maintenance and direct replacement in existing electrical systems.
What equipment is the KDL32100 compatible with?
This unit-mount breaker is designed for installation in Square D QO 3-phase load centers, switchboards, and compatible standalone Square D enclosures.
How do you connect the wiring to the KDL32100?
This feed-thru breaker uses standard line and load side lug terminals. The lugs accept either aluminum or copper conductors ranging from 6 AWG to 350 kcmil.
How does the trip unit on the KDL32100 operate?
It features a thermal-magnetic trip unit with LI (Long-Time and Instantaneous) functions. The thermal protection for overloads is fixed, while the instantaneous magnetic protection for short circuits is adjustable to suit specific load requirements.
What is the maximum fault current this breaker can safely interrupt?
The KDL32100 has a standard interrupting capacity of 25 kAIC at 240VAC, making it suitable for commercial and industrial applications requiring standard-duty fault protection.
How is the KDL32100 mounted within an enclosure?
As a unit-mount circuit breaker, it fastens directly to the backpan or mounting surface of a compatible switchboard or enclosure, rather than plugging directly onto a panelboard bus.
What frame family does the KDL32100 belong to?
It is part of the legacy Square D PowerPact K-frame family of molded case circuit breakers, which are commonly used in standard-duty commercial and industrial power systems.
