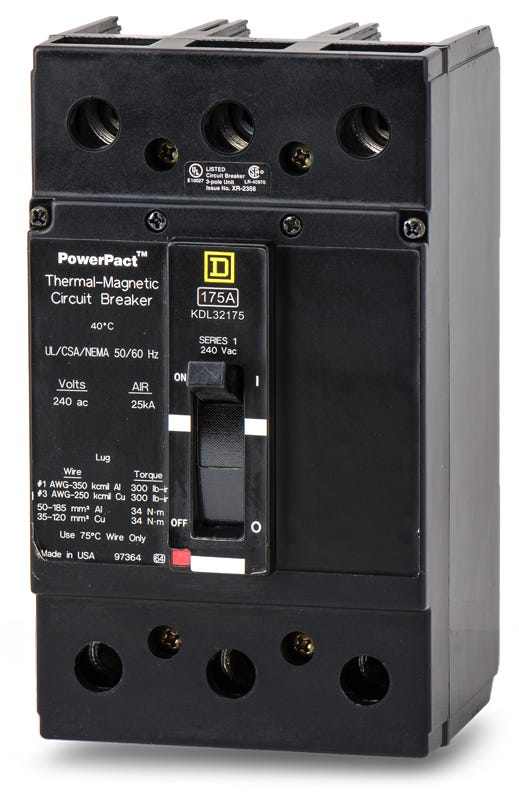

Square D KDL32175 Molded Case Circuit Breaker
- 175A
- 3 Pole
- Unit Mount
Square D
KDL32175
Molded Case Circuit Breaker
Brand
Square D
SKU
KDL32175
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D KDL32175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
Square D KDL32175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | KDL32175 |
| Series | KDL |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC |
| Frame Type | KDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D QO 3-Phase Load Centers, Square D Enclosures, Switchboards |
| Wire Gauge | 6 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Sold out
Quantity
Square D KDL32175 - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | KDL32175 |
| Series | KDL |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC |
| Frame Type | KDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D QO 3-Phase Load Centers, Square D Enclosures, Switchboards |
| Wire Gauge | 6 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Similar Items
150A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Constructed for heavy-duty environments, the Square D KDL32175 is a 175A molded case circuit breaker engineered for demanding 3-phase loads. It provides accurate long-time and instantaneous (LI) protection via a fixed thermal-magnetic trip system. This feed-thru breaker is compatible with Square D QO load centers and commercial switchboards. It offers a 25kAIC alternative to the standard QDL32175. Capable of interrupting up to 25kA at 240VAC, the device supports 6 AWG to 350 kcmil conductors.Specifications
| Brand | Square D |
|---|---|
| Part Number | KDL32175 |
| Series | KDL |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC |
| Frame Type | KDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D QO 3-Phase Load Centers, Square D Enclosures, Switchboards |
| Wire Gauge | 6 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
4 answersWhat type of panels or enclosures accept the KDL32175 breaker?
This K-Frame breaker is designed for use in Square D QO 3-phase load centers, commercial switchboards, and dedicated Square D enclosures. As a unit mount, feed-thru breaker, it requires a bolted backpan installation rather than snapping onto a standard busbar.
What are the conductor requirements for wiring the KDL32175?
The breaker is equipped with standard lugs that accept either aluminum or copper (Al/Cu) wire. You can use conductor sizes ranging from 6 AWG up to 350 kcmil to support its 175A rating.
Are the thermal and magnetic trip points adjustable on this model?
No. The KDL32175 features a fixed thermal magnetic trip unit. While it provides both Long-Time (L) and Instantaneous (I) protection functions, neither the overload threshold nor the short-circuit pickup can be modified by the user.
Is the KDL32175 a current production model or a legacy frame?
The KDL series belongs to the legacy K-Frame family of molded case circuit breakers by Square D. It is typically sourced to replace existing 175A feed-thru breakers in older electrical systems without requiring a panel retrofit.
