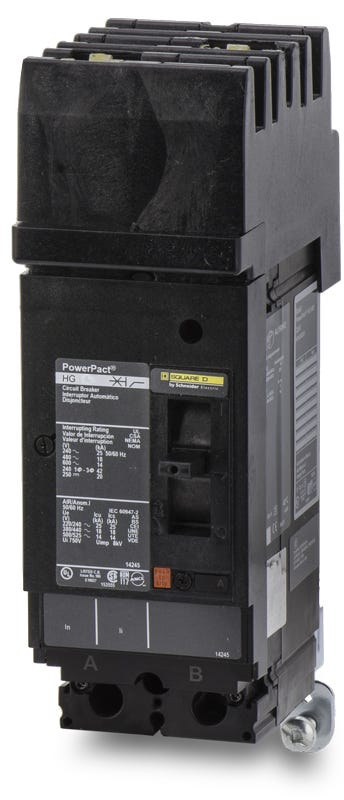

Square D HGA260601 Molded Case Circuit Breaker
- 60A
- 2 Pole
- I-Line
Square D
HGA260601
Molded Case Circuit Breaker
Brand
Square D
SKU
HGA260601
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HGA260601 - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
60A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
Description
Part of the PowerPacT H-Frame series, this 60A, 2-pole molded case circuit breaker delivers thermal-magnetic protection for industrial applications. It provides reliable long-time and instantaneous (LI) trip functions. The HGA260601 mounts into Square D I-Line panelboards and switchboards. This model features an AB phase connection and replaces older FA26060AB and FH26060AB breakers. With a 35kAIC rating at 480VAC, this current-limiting MCCB ensures superior fault protection and is HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | HGA260601 |
| Series | HGA |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | H |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14 AWG-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated |
Product FAQs
6 answersWhich panelboards are compatible with the HGA260601 circuit breaker?
This breaker is designed exclusively for use in Square D I-Line panelboards and switchboards. It features a plug-on line connection specific to the I-Line bussing system.
How is the HGA260601 mounted and wired?
It utilizes an I-Line plug-on connection for the line side, which snaps directly onto the panelboard bus. The load side features mechanical lugs that accept 14 AWG to 3/0 AWG aluminum or copper wire.
What does the G in the HGA260601 catalog number indicate?
The G designates the interrupting rating tier within the Square D PowerPacT H-Frame series. For this breaker, it provides a 65kA rating at 240V AC and 35kA at 480V AC.
Can the trip settings on this 60A breaker be adjusted?
The HGA260601 features a thermal-magnetic trip unit with a fixed thermal element for overload protection and an adjustable magnetic element for short-circuit protection.
Can this 2-pole breaker be used in a 3-phase I-Line panel?
Yes, 2-pole I-Line breakers can be installed in 3-phase panelboards. They will draw power from two of the three available phases depending on where they are positioned on the bus.
What precautions are required when installing an I-Line breaker like the HGA260601?
Installation should only be performed by a qualified electrician. Ensure the panelboard is fully de-energized before seating the I-Line jaws onto the bus to prevent arc flash hazards.
