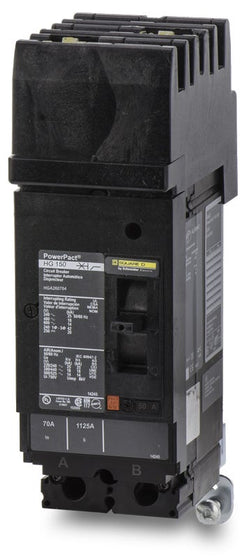

Square D HGA260602 Molded Case Circuit Breaker
- 60A
- 2 Pole
- I-Line
Square D
HGA260602
Molded Case Circuit Breaker
Brand
Square D
SKU
HGA260602
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HGA260602 - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
60A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial power distribution, this 60A, 2-pole molded case circuit breaker offers reliable thermal-magnetic protection. It features fixed long-time and instantaneous (LI) trip functions to safeguard electrical systems. This unit mounts into Square D I-Line panelboards and switchboards. Equipped with an AC phase connection, it replaces legacy FA26060AC and FH26060AC breakers.Specifications
| Brand | Square D |
|---|---|
| Series | HGA |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | H |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Non-Interchangeable Trip, 80% Rated, Visual Trip Indicator |
Product FAQs
8 answersDoes the HGA260602 replace older Square D F-frame circuit breakers?
Yes, the PowerPact H-frame HGA260602 is the direct modern replacement for legacy 60A, 2-pole F-frame I-Line breakers, such as the FA26060AC and FH26060AC.
What are the lug torque specifications for this 60A H-frame breaker?
The load-side lugs require 44 lbf.in (5 N.m) of torque for 14 to 10 AWG wire, and 124 lbf.in (14 N.m) for 8 to 3/0 AWG wire.
Can this I-Line circuit breaker be reverse fed to act as a main breaker?
Yes, this breaker can be reverse fed to power the interior bus of an I-Line panelboard. When used as a backfed main for service equipment, it must be properly labeled as the main breaker to meet code requirements.
What does the "G" in the HGA260602 part number indicate?
The "G" designates the interrupting rating level for this PowerPact H-frame breaker. It indicates a breaking capacity of 65kA at 240V AC, 35kA at 480V AC, and 18kA at 600V AC.
Is this breaker compatible with standard QO or Homeline load centers?
No, this is an I-Line style plug-in circuit breaker. It is exclusively designed for use in Square D I-Line panelboards and switchboards, and will not fit in residential QO or Homeline load centers.
How does the line side connect to the panelboard?
The line side features an I-Line plug-on connection that mounts directly to the panelboard busbar, while the load side uses traditional mechanical lugs for wire termination.
What does the "2" at the end of the HGA260602 part number mean?
The final "2" indicates that this 2-pole breaker is factory-configured for an AC phase connection on the I-Line bus. It is important to verify your required phase connections before installing a branch breaker in a single-phase application.
What are the magnetic hold and trip currents for this 60A breaker?
The fixed thermal-magnetic trip unit has a magnetic hold current of 800A and a magnetic tripping current of 1450A.
