Square D HLL36070 Molded Case Circuit Breaker
- 70A
- 3 Pole
- Unit Mount
Square D
HLL36070
Molded Case Circuit Breaker
Brand
Square D
SKU
HLL36070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

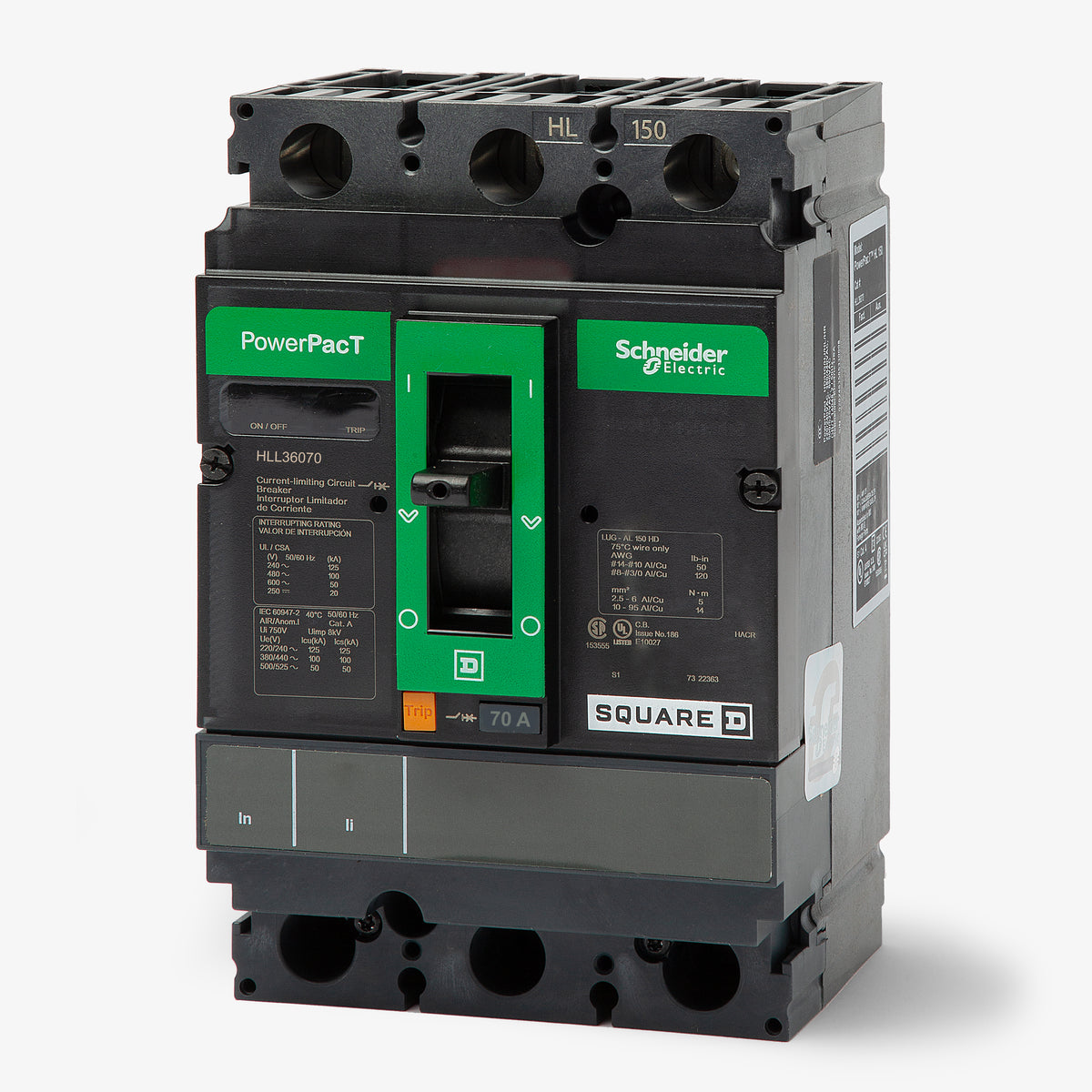

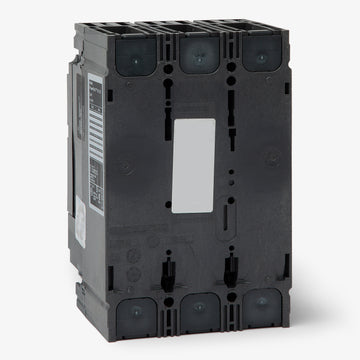

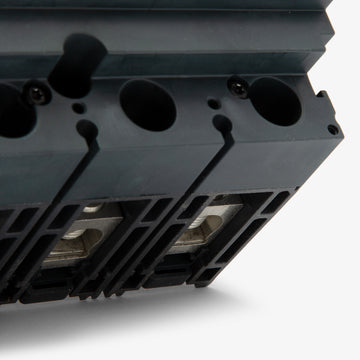

Square D HLL36070 - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
90A 3 Pole Molded Case Circuit Breaker
45A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
The HLL36070 is a 3-pole, 70A molded case circuit breaker from Square D's PowerPacT H-Frame family. Built for demanding commercial and industrial applications, it provides reliable long-time and instantaneous (LI) protection for electrical systems. This unit-mount MCCB installs into standard control panels, switchboards, and industrial enclosures using line and load lugs. It features a fixed thermal-magnetic trip unit, HACR rating, and a high 125kA interrupting capacity at 240VAC.Specifications
| Brand | Square D |
|---|---|
| Part Number | HLL36070 |
| Series | HLL |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 100kA @ 480VAC, 50kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HLL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Control Panels, Switchboards, Industrial Enclosures |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL, UKCA |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersWhat enclosures or panelboards is the HLL36070 compatible with?
As a unit-mount, feed-thru breaker, the HLL36070 is designed to be mounted directly to a backpan in control panels, switchboards, and industrial enclosures. It is not compatible with I-Line or plug-on panelboards.

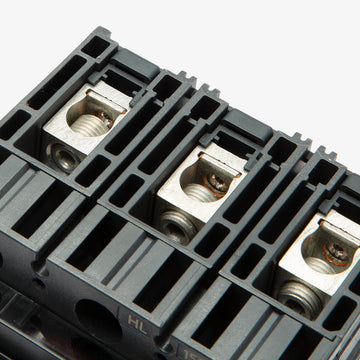

What is the recommended tightening torque for the lugs on the HLL36070?
The standard lugs require 44.3 lb-in (5 N.m) for 14 to 10 AWG wire, and 124 lb-in (14 N.m) for 8 to 3/0 AWG wire.
Can the HLL36070 be reverse fed?
Yes, this thermal magnetic PowerPacT H-frame circuit breaker is suitable for reverse-fed applications.
What is the difference between the HLL36070 and the HDL36070, HGL36070, or HJL36070?
The third letter in the catalog number indicates the interrupting rating at 480VAC. The HLL36070 has an L rating of 100kAIC at 480VAC. The HDL is rated 18kAIC, the HGL is 35kAIC, and the HJL is 65kAIC.
Is the HLL36070 rated for continuous operation at 100 percent of its 70A capacity?
No, this is a standard 80 percent rated circuit breaker. Continuous loads should not exceed 56 amps, which is 80 percent of its 70A rating.
Can the HLL36070 be used in DC voltage applications?
Yes, this breaker is rated for up to 250VDC with an interrupting capacity of 20kAIC.
Does the HLL36070 include a push-to-trip feature?
Yes, PowerPacT H-frame breakers feature an integral push-to-trip button on the cover to manually trip the breaker and verify the mechanical operation of the trip mechanism.
