Square D QBP22110TM Molded Case Circuit Breaker
- 110A
- 2 Pole
- Unit Mount
Square D
QBP22110TM
Molded Case Circuit Breaker
Brand
Square D
SKU
QBP22110TM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

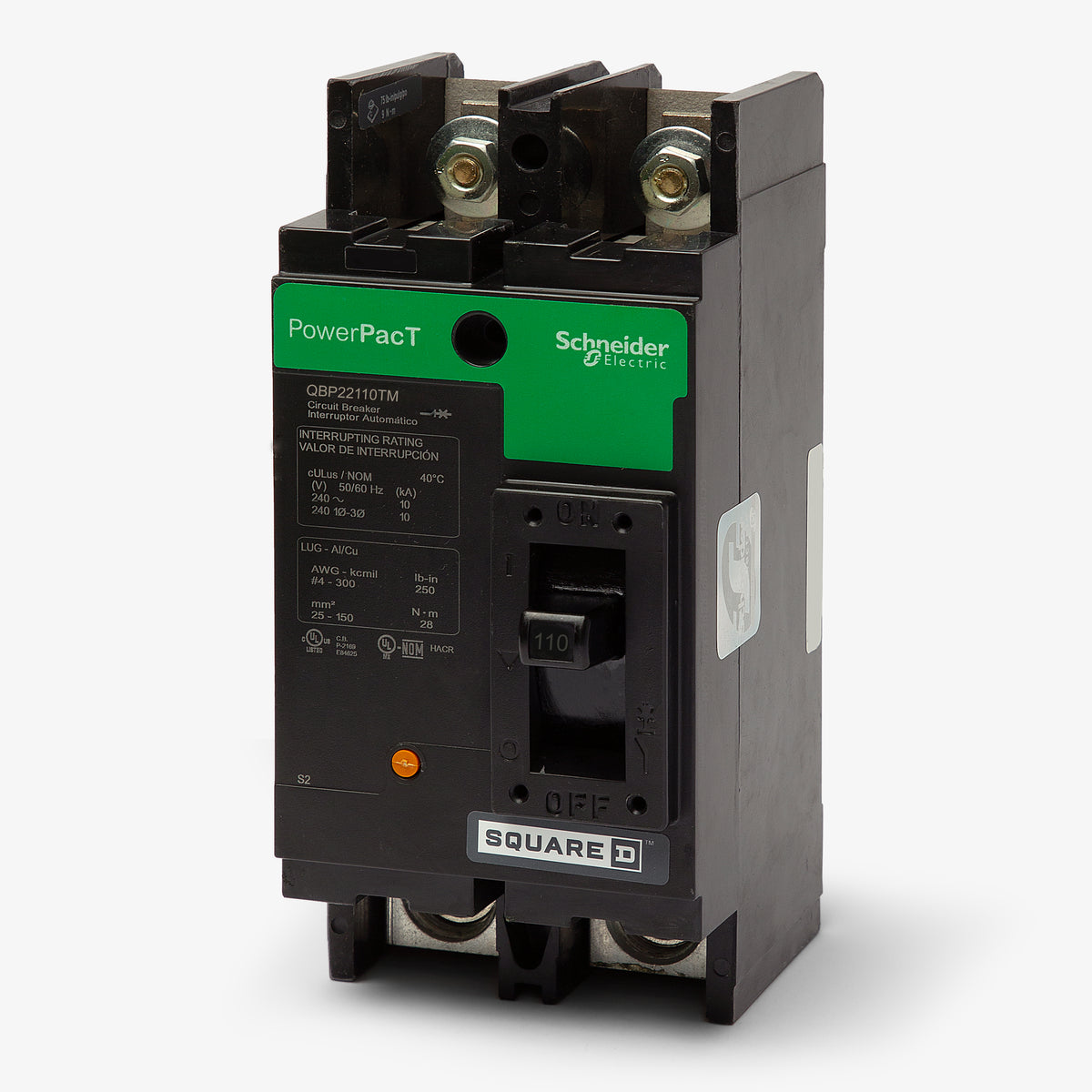

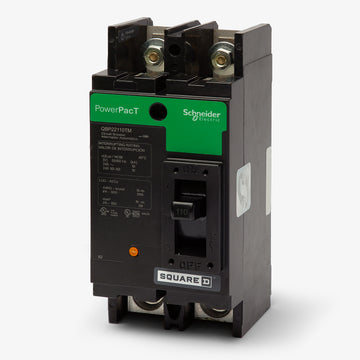

Square D QBP22110TM - 110A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
125A 2 Pole Molded Case Circuit Breaker
90A 2 Pole Molded Case Circuit Breaker
80A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial metering applications, the Square D QBP22110TM is a 2-pole, 110A molded case circuit breaker. It provides robust thermal-magnetic protection for systems requiring a 10kAIC rating at 240VAC. This unit mount breaker fits into Square D Meter-Pak and EZ Meter-Pak equipment. It serves as a direct replacement for the legacy Q22110 model. Featuring a Visi-Trip indicator for quick fault identification, this Q-Frame breaker includes load side lugs and is HACR-rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | QBP22110TM |
| Series | QBP |
| Amperage | 110A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Square D Meter-Pak Metering Centers, EZ Meter-Pak Metering Equipment |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, NOM-003-SCFI, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, 80% Rated |
Product FAQs
7 answersWhat is the direct replacement for the legacy Square D Q22110 circuit breaker?
The QBP22110TM is the direct replacement for the legacy Q22110 circuit breaker. It provides the same 110A rating and unit mount configuration for Q-Frame applications.
Which metering centers are compatible with the QBP22110TM breaker?
This breaker is designed for use in Square D Meter-Pak and EZ Meter-Pak metering equipment, specifically fitting 225A MPL lever bypass meter centers.
What wire sizes are accepted by the lugs on the QBP22110TM?
The load side box lugs accept aluminum or copper conductors ranging from 4 AWG to 300 kcmil.
How is the QBP22110TM circuit breaker mounted?
It features a unit mount, bolt-on design. The line side uses terminal nuts for bus connection, while the load side includes standard box lugs.
Is the QBP22110TM suitable for 208Y/120V AC systems?
Yes, it is rated for use on both 240V AC and 208Y/120V AC systems, providing a 10 kA interrupting capacity at either voltage.
Does this Q-Frame breaker include a visual trip indicator?
Yes, PowerPact Q-Frame breakers feature a Visi-Trip indicator that provides clear visual confirmation when the breaker has tripped due to an overcurrent or short circuit fault.
What type of trip unit is installed in the QBP22110TM?
It is equipped with a thermal magnetic trip unit that provides fixed long-time and instantaneous (LI) overcurrent protection.
