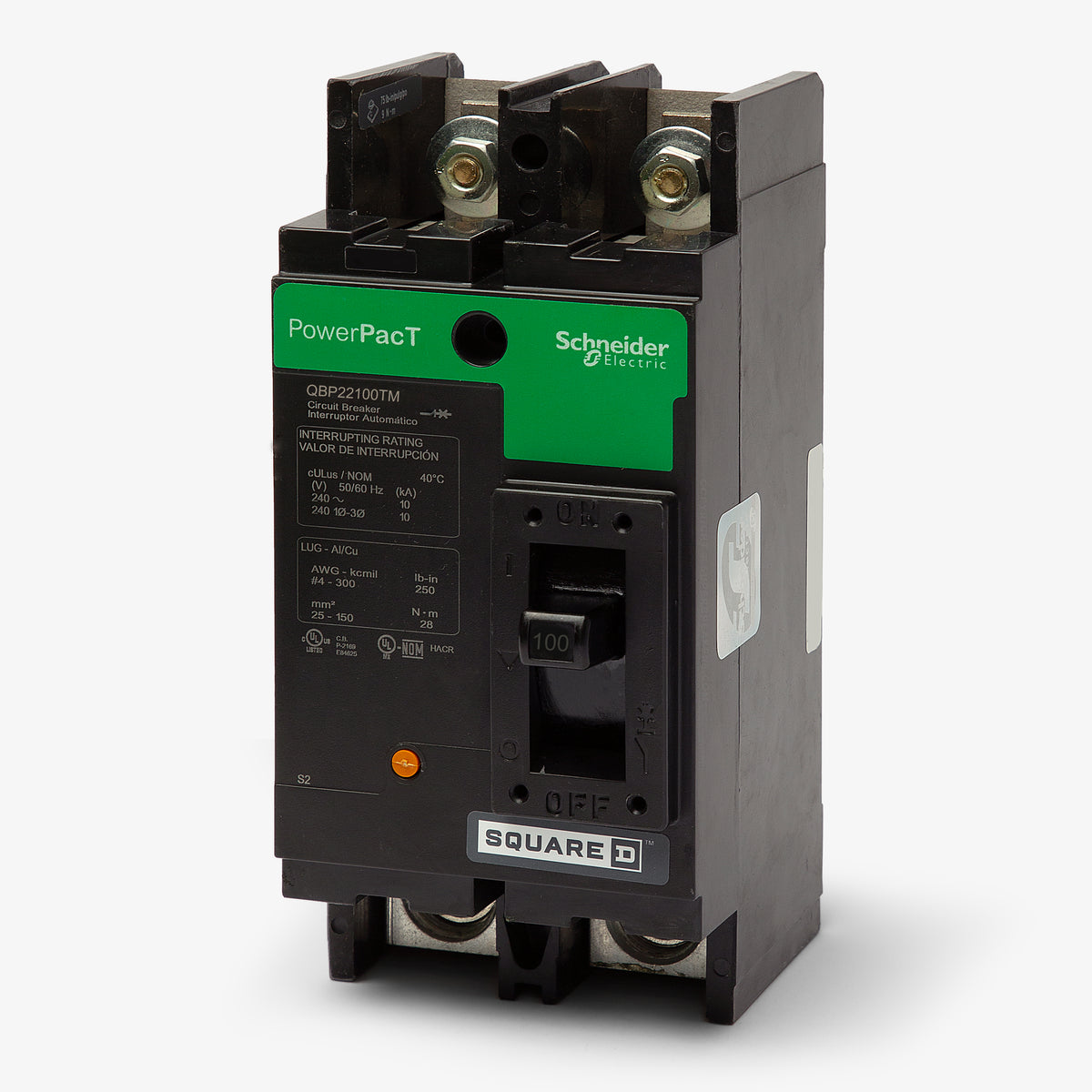

Square D QBP22100TM Circuit Breaker
- 100
- 2 Pole
- Unit Mount
Square D
QBP22100TM
Circuit Breaker
Brand
Square D
SKU
QBP22100TM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QBP22100TM 2 Pole Circuit Breaker
New
Quantity
Quantity
Square D QBP22100TM 2 Pole Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QBP22100TM |
| Series | QBP |
| Amperage | 100 A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240V |
| Phase | 1 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Square D Meter-Pak Meter Centers, EZ Meter-Pak Meter Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Line Side Mounting Nuts/Washers |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, NOM-003-SCFI, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, 80% Rated |
Sold out
Quantity
Square D QBP22100TM 2 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | QBP |
| Amperage | 100 A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240V |
| Phase | 1 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Square D Meter-Pak Meter Centers, EZ Meter-Pak Meter Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Line Side Mounting Nuts/Washers |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, NOM-003-SCFI, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, 80% Rated |
Similar Items
90A 2 Pole Molded Case Circuit Breaker
80A 2 Pole Molded Case Circuit Breaker
125A 2 Pole Molded Case Circuit Breaker
Description
Square D QBP22100TM 2 Pole Circuit Breaker
The Square D QBP22100TM is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 100 Amps and a voltage rating of 240V. It has an interrupting rating of 10kAIC at 240V. The QBP22100TM has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | Square D |
|---|---|
| Part Number | QBP22100TM |
| Series | QBP |
| Amperage | 100 A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240V |
| Phase | 1 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Square D Meter-Pak Meter Centers, EZ Meter-Pak Meter Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Line Side Mounting Nuts/Washers |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, NOM-003-SCFI, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, 80% Rated |
Product FAQs
6 answersWhat equipment is the QBP22100TM circuit breaker designed to fit?
This PowerPacT Q-Frame breaker is designed for use in Square D Meter-Pak and EZ Meter-Pak Meter Centers, including 225A MPL lever bypass metering equipment.
How are the line and load connections configured on this breaker?
The QBP22100TM features a stud with a terminal nut on the line side and a standard wire lug on the load side.
What wire sizes and materials are supported by the load side lugs?
The load side lugs accept 4 AWG through 300 kcmil aluminum or copper conductors. Ensure proper torque specifications are followed during installation.
What does the TM suffix indicate in the QBP22100TM catalog number?
The TM suffix indicates that the breaker is equipped with a thermal-magnetic trip unit, providing both long-time overload and instantaneous short-circuit protection.
Can the QBP22100TM be used on 120/240V single-phase systems?
Yes, this 2-pole breaker is rated for 240V maximum and is commonly used in 120/240V single-phase metering applications.
Does this breaker include a push-to-trip feature for testing?
Yes, PowerPacT Q-Frame circuit breakers include an integral push-to-trip button on the cover to manually trip the breaker and verify the mechanical operation of the trip mechanism.
