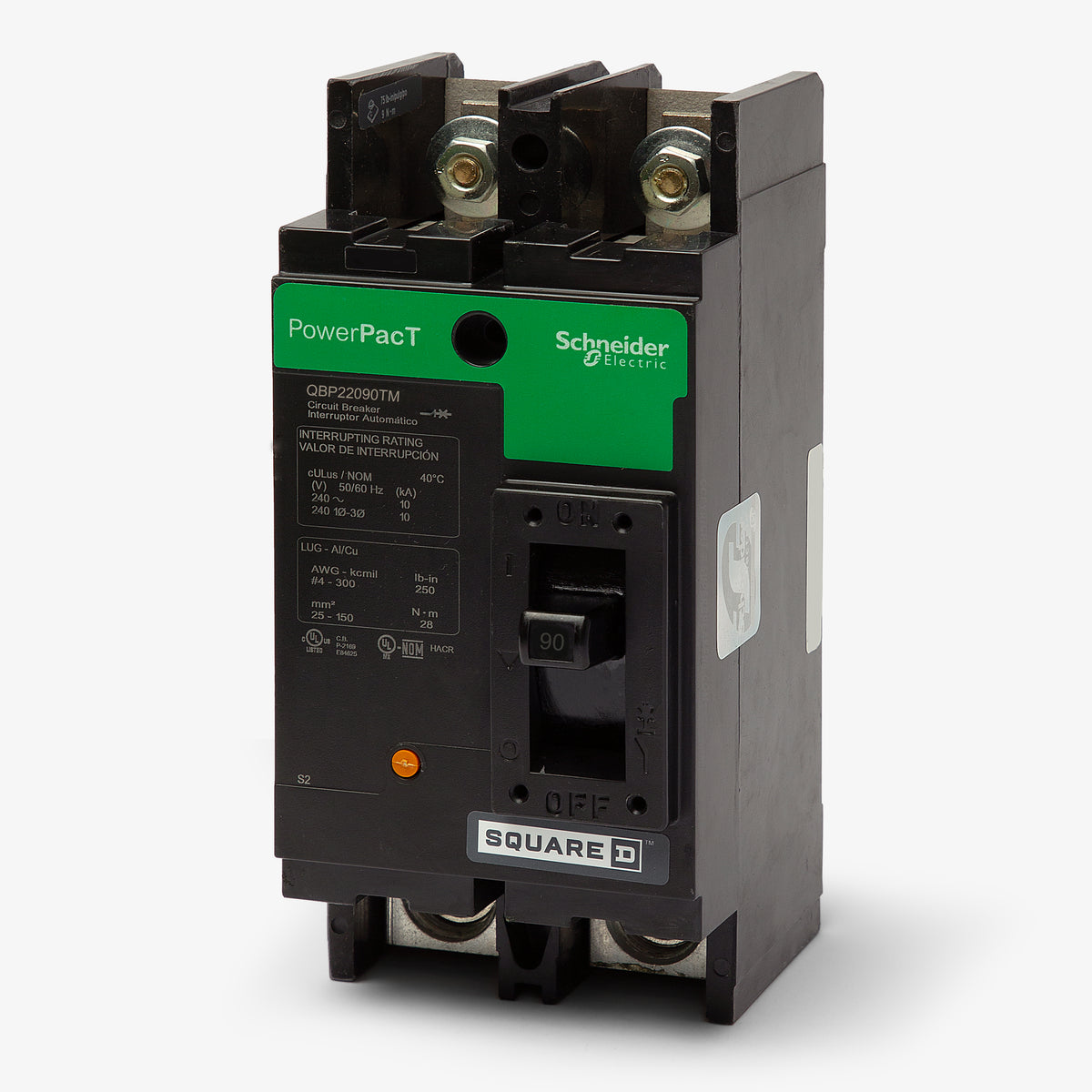

Square D QBP22090TM Molded Case Circuit Breaker
- 90A
- 2 Pole
- Unit Mount
Square D
QBP22090TM
Molded Case Circuit Breaker
Brand
Square D
SKU
QBP22090TM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QBP22090TM - 90A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
80A 2 Pole Molded Case Circuit Breaker
110A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
Description
Built for multi-tenant metering, the Square D QBP22090TM delivers dependable 90A circuit protection. This 2-pole MCCB utilizes a fixed thermal-magnetic trip system to handle overloads and short circuits. The unit mount configuration is engineered for Square D Meter-Pak and EZ Meter-Pak centers. It easily replaces discontinued Q22090 breakers in existing setups. Operating with a 10kAIC rating at 240VAC, this Q-Frame breaker is HACR rated and features a high-visibility Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | QBP22090TM |
| Series | QBP |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Terminal Type | Stud/Tapped Pad |
|---|---|
| For Use With | Square D Meter-Pak Meter Centers, EZ Meter-Pak Meter Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Line Side Mounting Nuts/Washers |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, NOM-003-SCFI, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Tenant Main, 80% Rated |
Product FAQs
6 answersWhat metering equipment is the QBP22090TM designed to fit?
This unit-mount Q-Frame breaker is specifically engineered for installation in Square D Meter-Pak and EZ Meter-Pak multi-tenant metering centers.
Can the QBP22090TM replace older Square D breakers?
Yes, the QBP22090TM serves as a direct replacement for the discontinued Q22090 circuit breaker in existing metering setups.
How does the QBP22090TM connect within the metering center?
It utilizes a bolt-on, unit-mount configuration featuring stud/tapped pad connections on the line side and standard wire lugs on the load side.
Does this breaker include a manual testing feature?
Yes, it features an integral push-to-trip button on the cover, allowing electricians to manually trip the breaker and verify the mechanical operation of the thermal-magnetic trip unit.
How can I visually verify if the QBP22090TM has tripped?
The breaker is equipped with a visual trip indicator that clearly displays when the unit has tripped due to an overcurrent or short circuit, allowing for quick identification in a multi-tenant meter center.
Is the QBP22090TM suitable for protecting HVAC equipment?
Yes, this breaker is HACR rated, meaning it is tested and approved for use with heating, air conditioning, and refrigeration systems.
