Square D QDP32225TM Molded Case Circuit Breaker
- 225A
- 3 Pole
- Bolt-On
Square D
QDP32225TM
Molded Case Circuit Breaker
Brand
Square D
SKU
QDP32225TM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

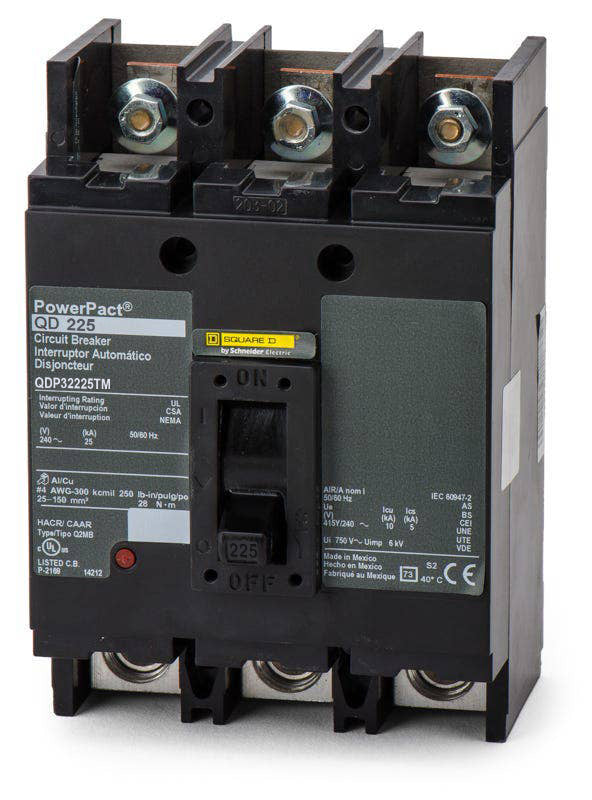

Square D QDP32225TM - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
150A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
110A 3 Pole Molded Case Circuit Breaker
Description
Designed for robust electrical systems, the Square D QDP32225TM operates as a 3-pole, 225A PowerPacT circuit breaker. It bolts into EZ Meter-Pak centers, panelboards, and commercial switchboards to provide stable power distribution. Facility managers can use this unit to replace discontinued Q23225 breakers. Featuring a 25kAIC rating at 240VAC, it incorporates fixed thermal and magnetic trip elements to safeguard equipment against damaging overloads and short circuits.Specifications
| Brand | Square D |
|---|---|
| Part Number | QDP32225TM |
| Series | QDP |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | EZ Meter-Pak Meter Centers, Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Line Side Terminal Nuts, Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
5 answersWhat enclosures and distribution equipment are compatible with the QDP32225TM?
This PowerPacT Q-frame breaker is designed for bolt-on installation in Square D EZ Meter-Pak meter centers, panelboards, and commercial switchboards.
Can the QDP32225TM replace older legacy Square D breakers?
Yes, this unit serves as a direct functional replacement for the discontinued Q23225 circuit breakers.
What is the terminal configuration and wire capacity for this breaker?
It features a stud and tapped pad configuration, utilizing terminal nuts on the line side and mechanical lugs on the load side. The terminals accept 4 AWG to 300 kcmil aluminum or copper conductors.
Is the QDP32225TM rated for 100 percent continuous duty?
No, this breaker carries a standard 80 percent continuous current rating.
What does the LI trip function code indicate on the QDP32225TM?
The LI designation means the thermal-magnetic trip unit provides fixed Long-Time overload protection and fixed Instantaneous short-circuit protection. The breaker also includes a trip-free mechanism and an integral push-to-trip button for manual testing.
