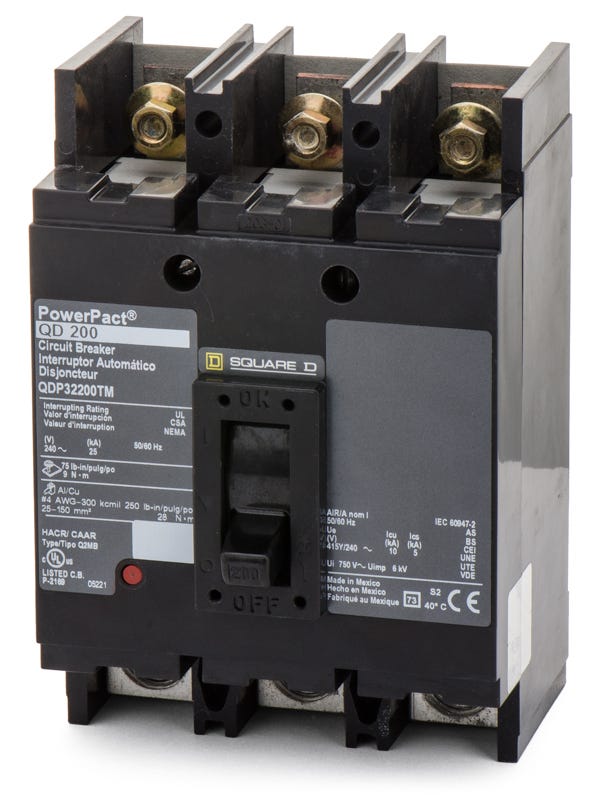

Square D QDP32200TM Molded Case Circuit Breaker
- 200A
- 3 Pole
- Bolt-On
Square D
QDP32200TM
Molded Case Circuit Breaker
Brand
Square D
SKU
QDP32200TM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QDP32200TM - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QDP32200TM - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QDP32200TM |
| Series | QDP |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | EZ Meter-Pak Meter Centers, Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Line Side Terminal Nuts, Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
Square D QDP32200TM - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QDP32200TM-R |
| Series | QDP |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | EZ Meter-Pak Meter Centers, Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Line Side Terminal Nuts, Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
150A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
110A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial applications, the Square D QDP32200TM serves as a 3-pole, 200A molded case circuit breaker within the PowerPacT Q-Frame family. It installs into EZ Meter-Pak meter centers, panelboards, and switchboards using a secure bolt-on mounting style. This unit functions as a seamless replacement for legacy Q23200 breakers. Rated for 25 kAIC at 240VAC, it features fixed thermal-magnetic trip technology with long-time and instantaneous (LI) protection functions.Specifications
| Brand | Square D |
|---|---|
| Part Number | QDP32200TM |
| Series | QDP |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | EZ Meter-Pak Meter Centers, Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Line Side Terminal Nuts, Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
7 answersWhat legacy Square D circuit breaker does the QDP32200TM replace?
This PowerPacT Q-Frame breaker serves as a direct replacement for legacy Square D Q2 Series devices, specifically the Q23200 model.
What does the TM suffix mean for the terminal connections on the QDP32200TM?
The TM suffix indicates a specific terminal arrangement. It features studs with nuts and washers on the ON (line) end, and standard box lugs on the OFF (load) end.
What equipment is the QDP32200TM designed to be installed in?
This bolt-on breaker is engineered for use in Square D EZ Meter-Pak meter centers, as well as compatible commercial panelboards and switchboards.
Can the QDP32200TM be installed in 480V or 600V electrical systems?
No. This Q-Frame breaker is rated for a maximum of 240VAC and cannot be used in 480V or 600V applications.
Are the thermal and magnetic trip settings adjustable on this breaker?
No. The QDP32200TM features a fixed thermal and fixed magnetic trip unit, meaning the long-time and instantaneous protection settings cannot be adjusted in the field.
What conductor materials and sizes are supported by the load lugs?
The load side box lugs are rated for both aluminum and copper wire, accepting conductor sizes from 4 AWG up to 300 kcmil.
Does the QDP32200TM include a push-to-trip feature for testing?
Yes, PowerPacT Q-Frame circuit breakers include an integral push-to-trip button on the cover, allowing you to manually trip the breaker to verify the mechanical operation of the trip mechanism.
