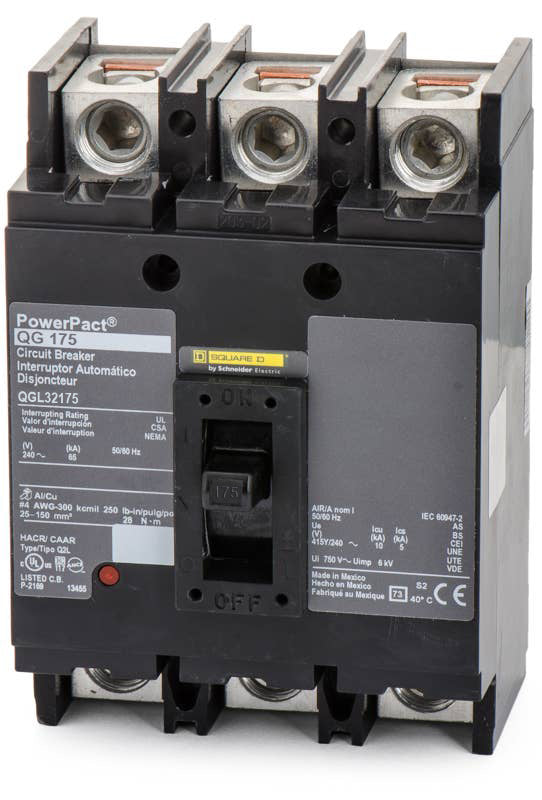

Square D QGL32175 Circuit Breaker
- 175
- 3 Pole
- Unit
Square D
QGL32175
Circuit Breaker
Brand
Square D
SKU
QGL32175
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QGL32175 3 Pole Circuit Breaker
New
Quantity
Quantity
Square D QGL32175 3 Pole Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QGL32175 |
| Series | QGL |
| Amperage | 175 A |
| Poles | 3 |
| Mounting Style | Unit |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Frame Type | QGL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NQOD Panelboards, NQ Panelboards, Switchboards, Individual Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Handle Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
Square D QGL32175 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | QGL |
| Amperage | 175 A |
| Poles | 3 |
| Mounting Style | Unit |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Frame Type | QGL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NQOD Panelboards, NQ Panelboards, Switchboards, Individual Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Handle Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
150A 3 Pole Molded Case Circuit Breaker

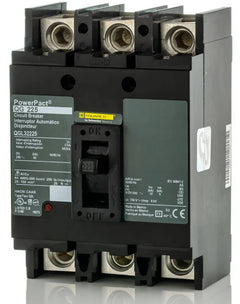

225A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Square D QGL32175 3 Pole Circuit Breaker
The Square D QGL32175 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 175 Amps and a voltage rating of 240VAC. It has an interrupting rating of 65kAIC at 240V. The QGL32175 has a feed-thru connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | Square D |
|---|---|
| Part Number | QGL32175 |
| Series | QGL |
| Amperage | 175 A |
| Poles | 3 |
| Mounting Style | Unit |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Frame Type | QGL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NQOD Panelboards, NQ Panelboards, Switchboards, Individual Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Handle Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhich panelboards are compatible with the QGL32175 circuit breaker?
The QGL32175 is a unit-mount breaker designed for use in Square D NQ and NQOD panelboards, as well as compatible switchboards and individual enclosures. It is not compatible with I-Line panelboards, which require a different mounting configuration.
What is the recommended lug tightening torque for the QGL32175?
The standard line and load lugs on the QGL32175 accept 4 AWG to 300 kcmil aluminum or copper wire. The required tightening torque for these terminals is 248 lb-in (28 N.m).
Is the QGL32175 rated for 100 percent continuous duty?
No, the QGL32175 is a standard 80 percent rated circuit breaker. Continuous loads should not exceed 140 amps, which is 80 percent of its 175-amp nominal rating.
Can the QGL32175 be reverse fed for backfeed applications?
Yes, this thermal-magnetic Q-frame breaker can be reverse fed. Because it does not contain an electronic trip unit with directional protection, it can be safely backfed in applications like generator inputs or solar tie-ins, provided it is properly labeled and secured per local codes.
What is the difference between the QGL32175, QDL32175, and QJL32175?
The difference is the short-circuit interrupting rating at 240V. The QDL32175 is rated at 25kAIC, the QGL32175 is rated at 65kAIC, and the QJL32175 is rated at 100kAIC. The QGL32175 can safely replace a QDL32175, but it cannot be used if a 100kAIC rating is required.
Does the QGL32175 feature adjustable trip settings?
No, the QGL32175 features a fixed thermal-magnetic trip unit. Both the long-time overload protection and the instantaneous short-circuit protection are factory set and cannot be adjusted in the field.
