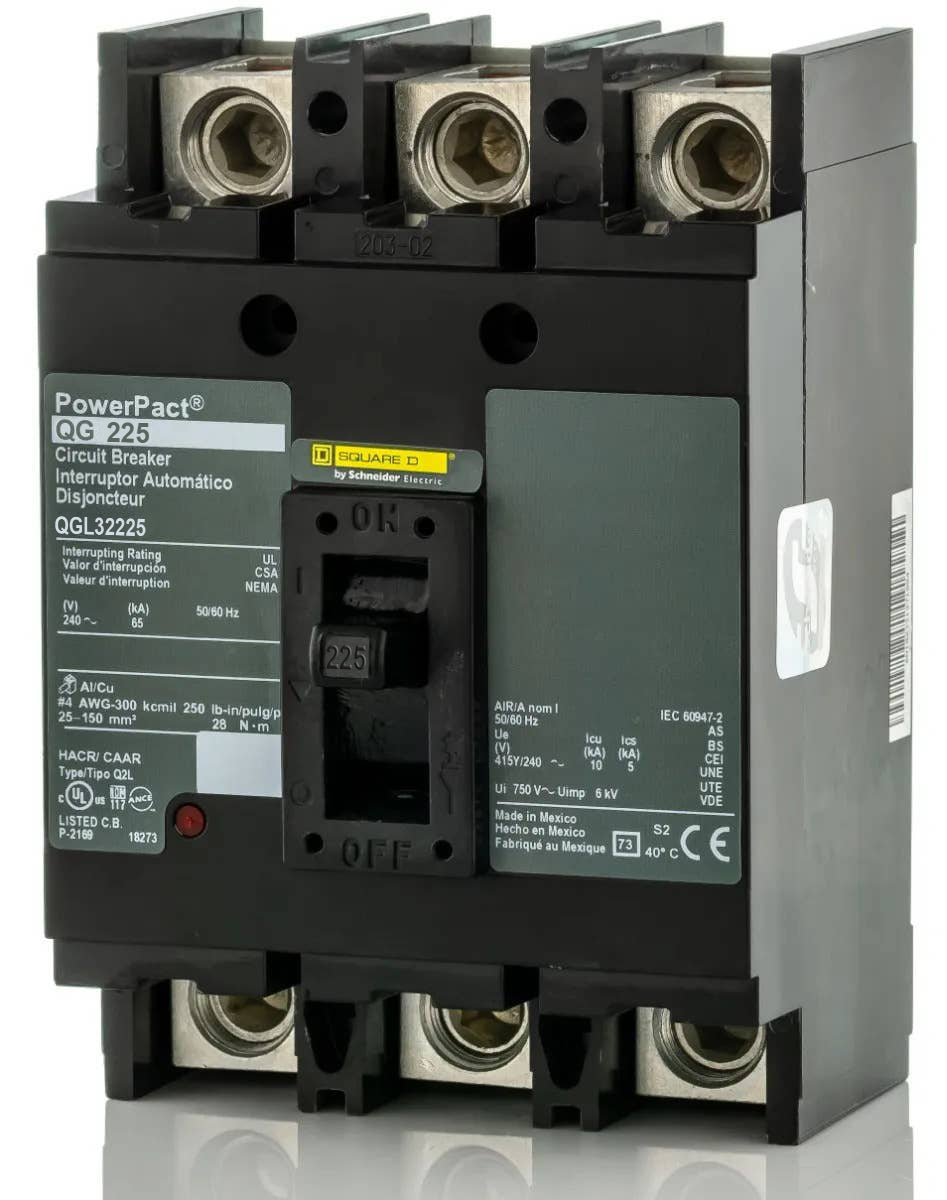

Square D QGL32225 Molded Case Circuit Breaker
- 225A
- 3 Pole
- Unit Mount
Square D
QGL32225
Molded Case Circuit Breaker
Brand
Square D
SKU
QGL32225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QGL32225 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QGL32225 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QGL32225 |
| Series | QGL |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Individual Enclosures, Panelboards, Switchboards |
| Wire Gauge | 4 AWG-300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Handle Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, 80% Rated |
Quantity
Square D QGL32225 - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | QGL |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Individual Enclosures, Panelboards, Switchboards |
| Wire Gauge | 4 AWG-300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Handle Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, 80% Rated |
Similar Items
200A 3 Pole Molded Case Circuit Breaker
3 Pole Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
The QGL32225 is a 3-pole, 225A molded case circuit breaker from Square D's PowerPacT Q-Frame family. Built for industrial applications, it provides thermal-magnetic protection with long-time and instantaneous (LI) trip functions. This unit-mount breaker installs into Square D enclosures, panelboards, and switchboards. It serves as a drop-in replacement for discontinued Q23225 breakers.Specifications
| Brand | Square D |
|---|---|
| Part Number | QGL32225 |
| Series | QGL |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Individual Enclosures, Panelboards, Switchboards |
| Wire Gauge | 4 AWG-300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Handle Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, 80% Rated |
Product FAQs
6 answersWhat older Square D circuit breakers does the QGL32225 replace?
The PowerPacT Q-frame QGL32225 is a direct drop-in replacement for discontinued Square D Q2 Series breakers, including the Q23225.
Can I install the QGL32225 in an NQ panelboard?
Yes, but because it is a unit-mount breaker with non-removable lugs, it requires a specific adapter kit. For a main breaker application, use the NQMB2Q kit. For a sub-feed application, use the NQSFB2Q kit.
What is the recommended tightening torque for the lugs on the QGL32225?
The factory-installed lugs, which accept 4 AWG to 300 kcmil aluminum or copper wire, should be torqued to 248 lb-in (28 N.m).
What are the magnetic trip thresholds for this thermal-magnetic breaker?
The QGL32225 features a fixed magnetic trip with a hold current of 1200A and a tripping current of 2400A.
Does this breaker connect directly to the panelboard bus?
No. The QGL32225 is a unit-mount breaker with factory-installed lugs on both the line and load sides. When installed in a panelboard, it connects to the bus via cables rather than a direct busbar connection.
Is the QGL32225 rated for 100 percent continuous current?
No, this breaker has a standard 80 percent continuous current rating.
