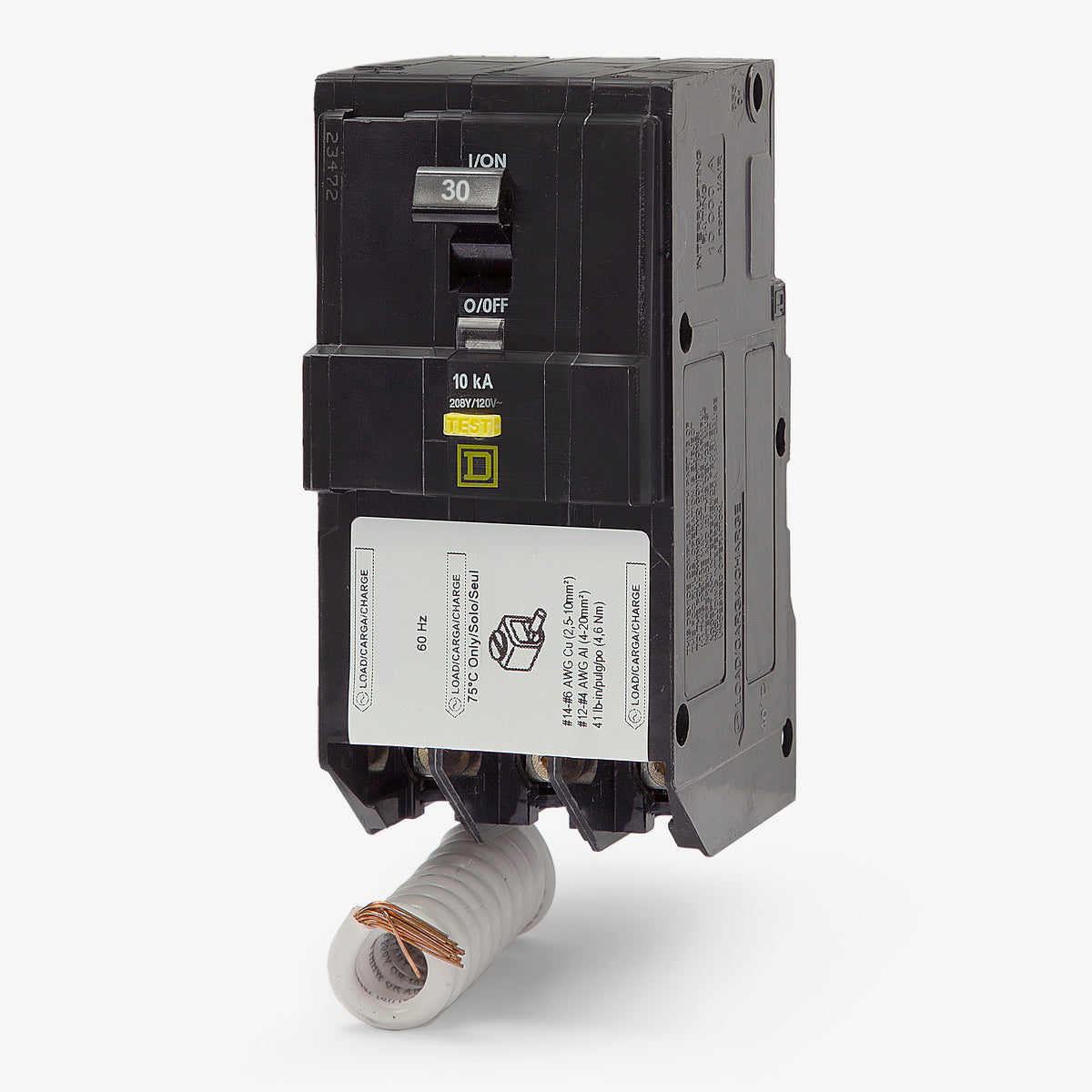

Square D QO330GFI GFCI Miniature Circuit Breaker
- 30A
- 3 Pole
- Plug-On
Square D
QO330GFI
GFCI Miniature Circuit Breaker
Brand
Square D
SKU
QO330GFI
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO330GFI - 30A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
20A GFCI Miniature Circuit Breaker
15A GFCI Miniature Circuit Breaker
50A GFCI Miniature Circuit Breaker
Description
Built to safeguard three-phase 208Y/120V circuits, this 30A thermal-magnetic breaker provides essential Class A ground fault protection. The integrated pigtail neutral and Visi-Trip visual indicator streamline both setup and ongoing maintenance for electrical contractors. Designed specifically for Square D QO load centers and NQ panelboards, the plug-on configuration ensures a secure fit. Pressure plate terminals accept 14-8 AWG copper or 12-8 AWG aluminum conductors.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO330GFI |
| Series | QO |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 208Y/120VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Handle Tie |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Mercury Free, RoHS Compliant |
Product FAQs
5 answersWhich panels are compatible with the QO330GFI circuit breaker?
This plug-on breaker is designed exclusively for Square D QO load centers and NQ panelboards. It cannot be installed in Homeline panels or other brands.
How many panel spaces does the QO330GFI require?
As a 3-pole breaker, it requires three standard 3/4-inch spaces in a QO load center or NQ panelboard.
What level of ground fault protection does the QO330GFI provide?
This breaker provides Class A ground fault protection, which is designed to trip when a fault current to ground reaches 6 mA or more to protect personnel.
How do I wire the neutral connection for the QO330GFI?
The breaker includes a white factory-installed pigtail that must be connected directly to the panel neutral bus bar. This powers the internal ground-fault sensing circuitry, even if the connected 3-phase load does not require a neutral conductor.
What types of applications typically require a 3-pole 30A GFCI breaker?
This breaker is commonly used for 3-phase 208Y/120V commercial equipment in wet environments, such as commercial pool pumps, hot tubs, fountains, and commercial kitchen equipment that mandates Class A personnel protection.
