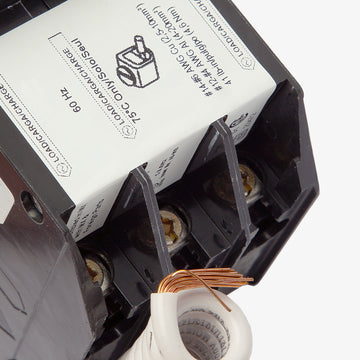

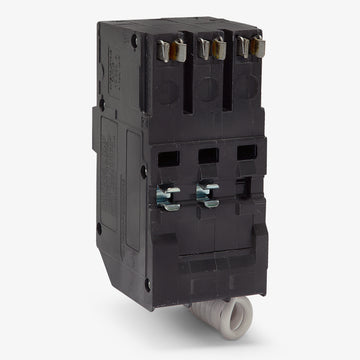

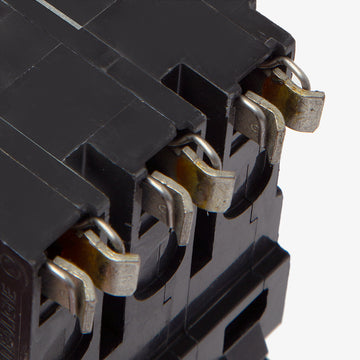

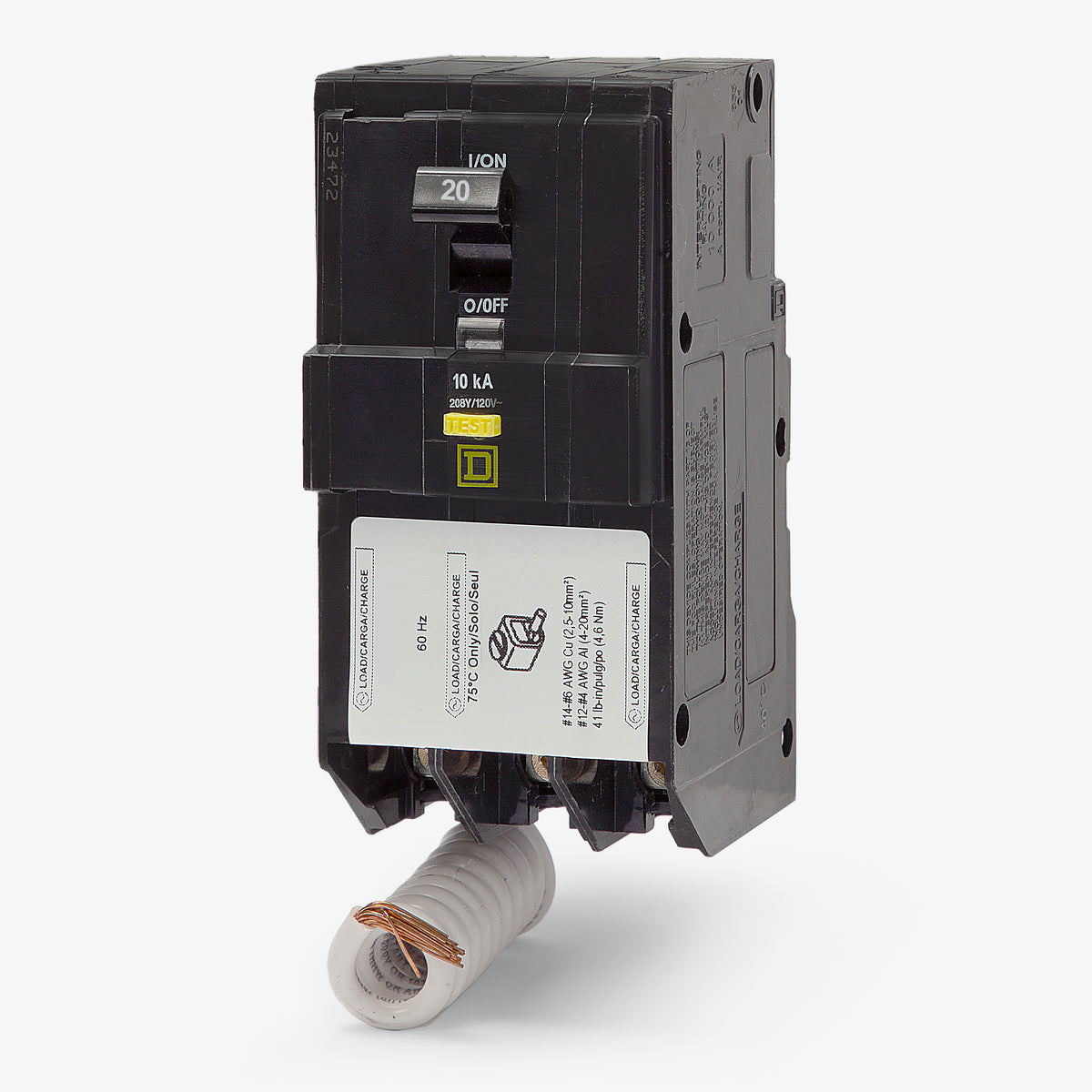

Square D QO320GFI GFCI Miniature Circuit Breaker
- 20A
- 3 Pole
- Plug-On
Square D
QO320GFI
GFCI Miniature Circuit Breaker
Brand
Square D
SKU
QO320GFI
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO320GFI - 20A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
30A GFCI Miniature Circuit Breaker
40A GFCI Miniature Circuit Breaker
50A GFCI Miniature Circuit Breaker
Description
Engineered for commercial and industrial applications, this 20A three-pole device delivers Class A ground fault protection for 208Y/120V three-phase systems. It features a pigtail neutral connection and Square D's signature Visi-Trip indicator for rapid fault identification. Mounting securely into standard QO load centers and NQ panelboards, the unit utilizes a plug-on design with pressure plate terminals.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO320GFI |
| Series | QO |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 208Y/120VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator |
Product FAQs
8 answersIs the QO320GFI compatible with Homeline load centers?
No, this breaker is specifically designed for use in Square D QO load centers and NQ panelboards. It cannot be installed in Homeline panels, which require HOM series breakers.
How many panel spaces does the QO320GFI require?
This circuit breaker requires three adjacent 3/4-inch spaces in a compatible QO load center or NQ panelboard.
How is the neutral connection made for this ground fault breaker?
The QO320GFI is equipped with a pigtail neutral wire. This wire must be routed and connected directly to the neutral bus bar in your panel for the ground fault protection to function correctly.
What is the maximum recommended load conductor length for this GFCI breaker?
To prevent nuisance tripping due to line capacitance, Square D recommends that the total one-way run of the load conductor does not exceed 250 feet.
What is the ground fault trip threshold for the QO320GFI?
As a Class A ground fault circuit interrupter, this breaker is designed to trip when a ground fault current of 6 mA or higher is detected, providing personnel protection against electrical shock.
How can I visually identify if the QO320GFI has tripped?
This breaker features Square D's Visi-Trip indicator, which displays a highly visible red flag in the indicator window when the breaker has tripped due to an overload, short circuit, or ground fault.
What is the catalog number for the standard version of this breaker without ground fault protection?
If ground fault sensing is not required for your specific application, the standard thermal-magnetic equivalent circuit breaker is catalog number QO320.
Is there an Equipment Protection Device (EPD) version of this circuit breaker?
Yes. If your application requires 30 mA equipment ground fault sensing rather than 6 mA personnel protection, the correct alternate part number is QO320EPD.
