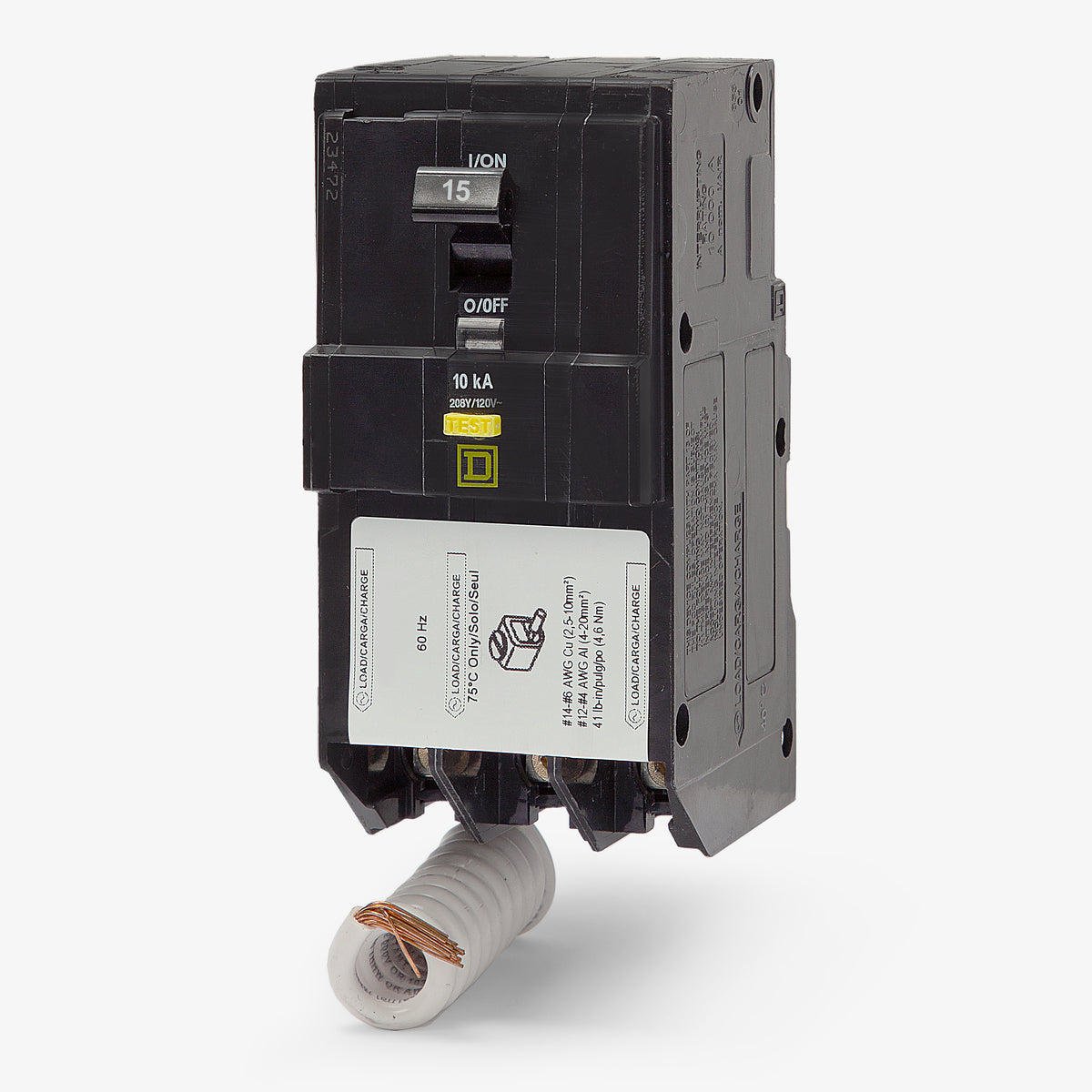

Square D QO315GFI GFCI Miniature Circuit Breaker
- 15A
- 3 Pole
- Plug-On
Square D
QO315GFI
GFCI Miniature Circuit Breaker
Brand
Square D
SKU
QO315GFI
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO315GFI - 15A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
30A GFCI Miniature Circuit Breaker
40A GFCI Miniature Circuit Breaker
50A GFCI Miniature Circuit Breaker
Description
Rated 10 kAIC at 208Y/120VAC, this three-pole Square D QO315GFI breaker brings reliable 6mA ground fault protection to commercial and industrial environments. It features a pigtail neutral and the brand's exclusive Visi-Trip indicator, allowing facility managers to quickly spot tripped circuits. The unit mounts into standard Square D QO load centers and NQ panelboards via a secure plug-on connection.Specifications
| Brand | Square D |
|---|---|
| Series | QO |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 208Y/120VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Shunt Trip, Auxiliary Switch, Alarm Switch |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, UL 489, RoHS |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Product FAQs
5 answersWhich electrical panels are compatible with the QO315GFI?
This breaker is compatible only with Square D QO Load Centers and NQ Panelboards. It will not fit in Homeline panels or load centers from other manufacturers.
How many panel spaces does the QO315GFI occupy?
Because it is a three pole breaker, it requires three full 0.75-inch spaces in your QO load center or NQ panelboard.
What level of ground fault protection does this unit provide?
The QO315GFI provides Class A ground fault protection. It is designed to trip when a ground leakage current of 6mA is detected, which is the standard for personnel protection against electric shock.

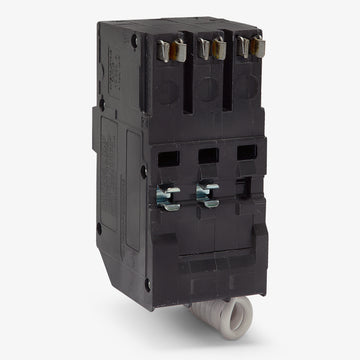

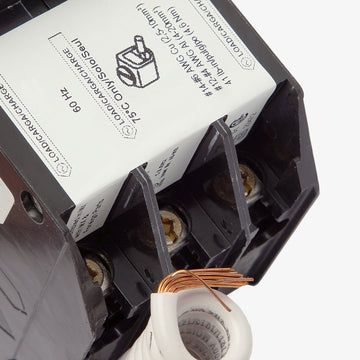

What is the purpose of the coiled white wire on this breaker?
That is the pigtail neutral. It must be properly connected to the neutral bus bar in the panelboard to provide a return path and reference point for the ground fault circuit interrupter to function.
Is there a bolt-on version of this 15A GFCI breaker?
Yes. If your NQ or NQOD panelboard requires a bolt-on connection rather than a plug-on format, you will need catalog number QOB315GFI.
